124409 - Dodge - SCHB-SC-203
Regular price
$347.39 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

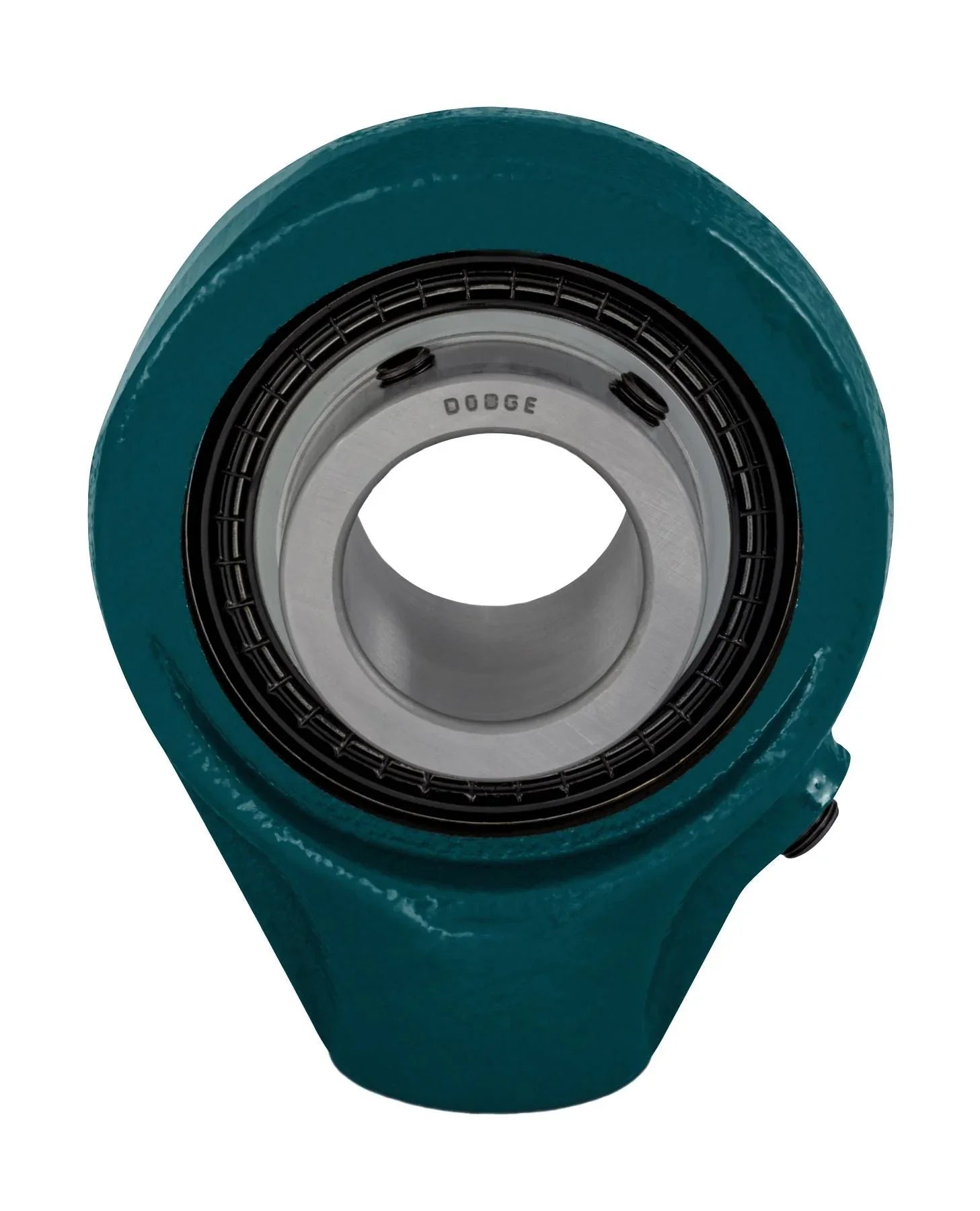

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
124409 - Dodge - SCHB-SC-203
SCHB-SC-203
Technical Specifications
| Ball Bearing Series | 212 Series |
| Bearing Type | Ball |
| Bolt Diameter | 1.2500 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 2.3100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/hanger/schb_sc_hi_asmtab.prj&varset={SERIES=212},{SS=2-3/16},{PN=124409},{DESCRIPTION=SCHB-SC-203},{W=5.0},{A=2.31},{B=5.50},{C=1.16},{D=1.15},{F=1-1/4 - 11-1/2},{G=1.13},{H=1.44},{J=6.75},{K=1.07},{L=2.97},{M=4.00}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11791 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Screw Conveyor Hanger |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 8100 |
| Static Load Capacity (Unit) | POUND_FORCE |
