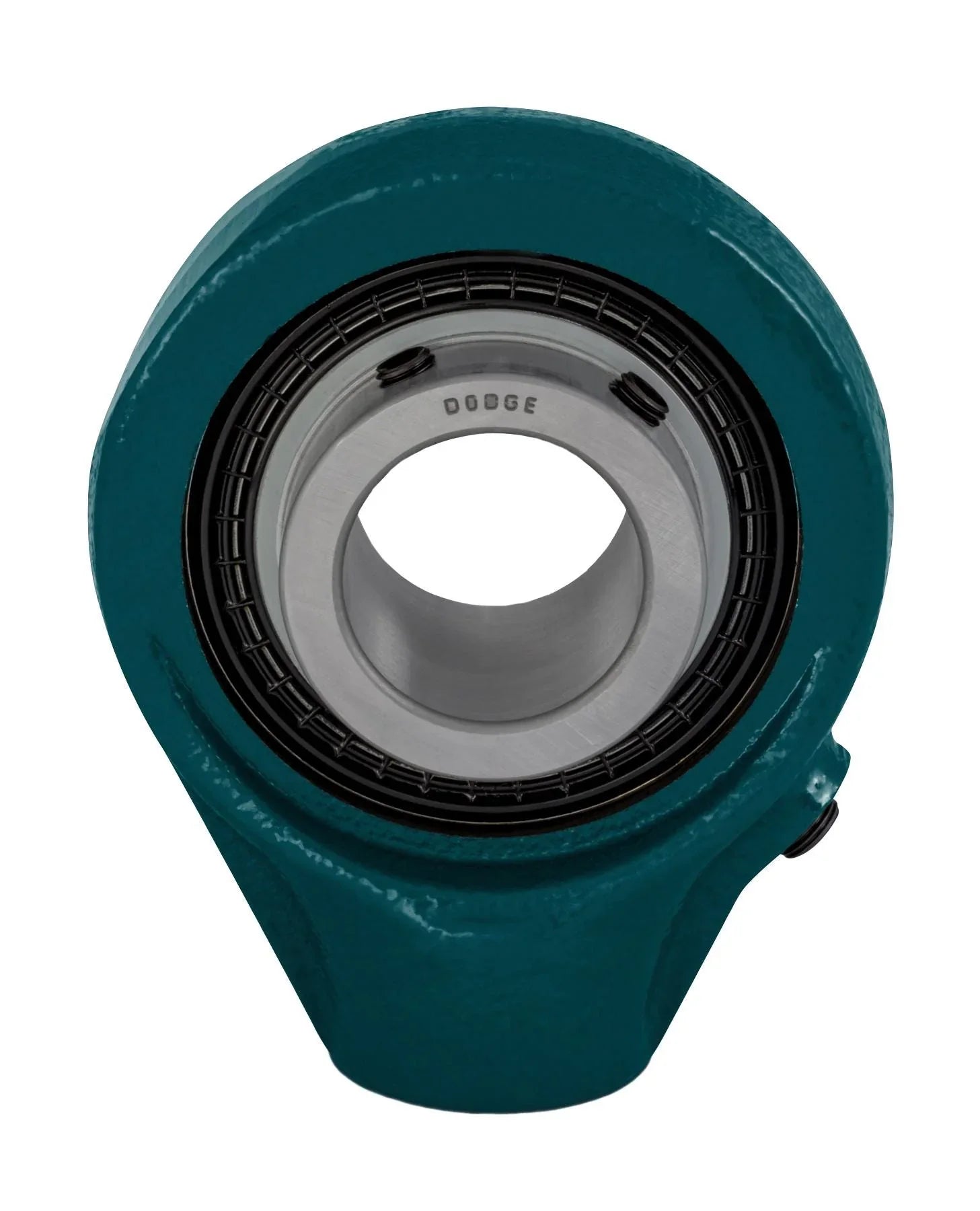

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
124406 - Dodge - SCHB-SC-215
SCHB-SC-215
Technical Specifications
| Ball Bearing Series | 216 Series |
| Bearing Type | Ball |
| Bolt Diameter | 1.5000 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 2.3800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/hanger/schb_sc_hi_asmtab.prj&varset={SERIES=216},{SS=2-15/16},{PN=124406},{DESCRIPTION=SCHB-SC-215},{W=14.0},{A=2.38},{B=7.00},{C=1.36},{D=1.41},{F=1-1/2 - 11-1/2},{G=1.25},{H=1.69},{J=8.38},{K=1.17},{L=3.83},{M=4.88}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17407 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Screw Conveyor Hanger |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 13102 |
| Static Load Capacity (Unit) | POUND_FORCE |
