123763 - Dodge - F4B-SCMAH-112
Regular price
$190.38 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

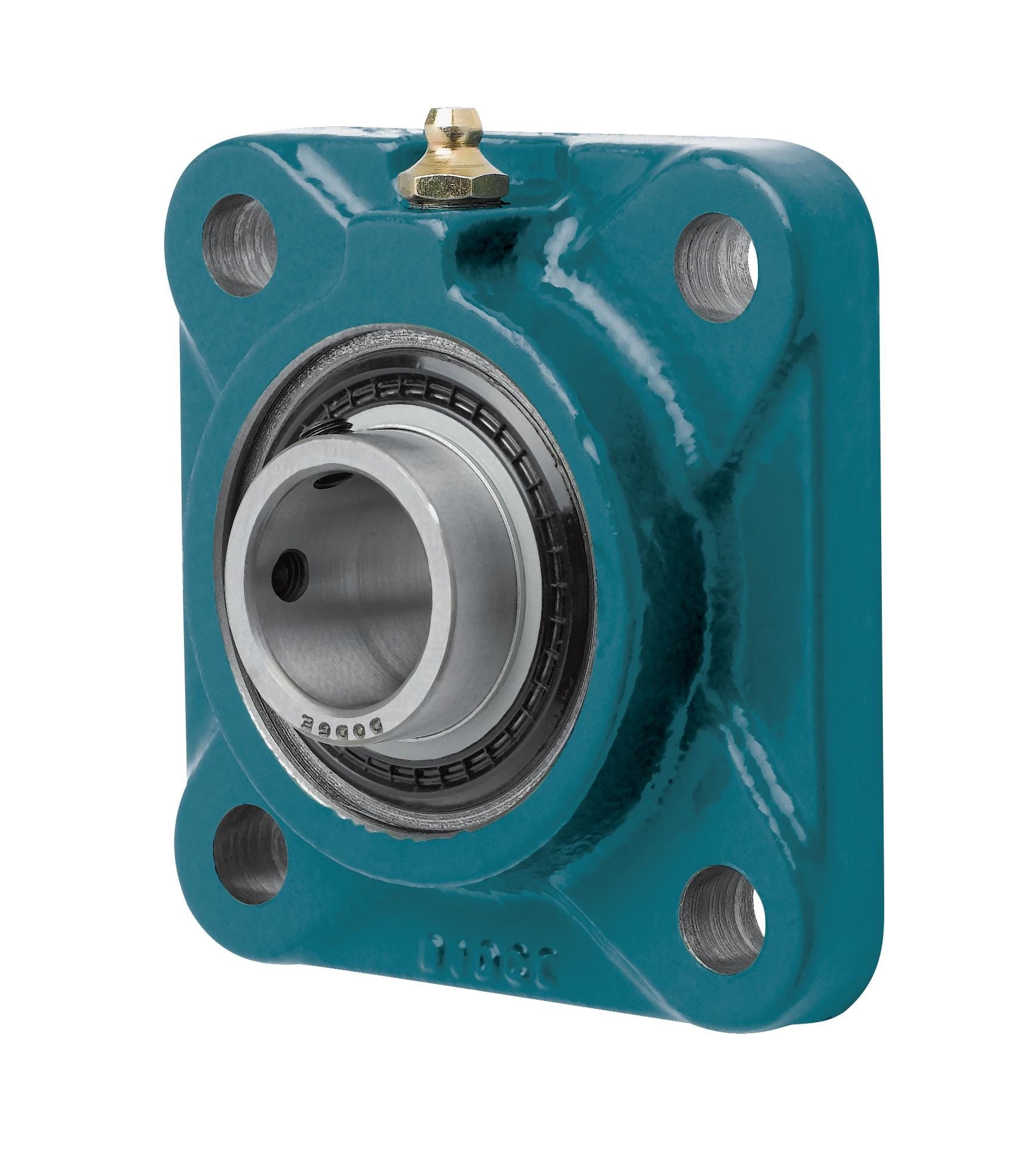

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
123763 - Dodge - F4B-SCMAH-112
F4B-SCMAH-112
Technical Specifications
| Ball Bearing Series | 210 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5625 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/4_bolt/f4b_scmah_hi_asmtab.prj&varset={SERIES=210},{SS=1-3/4},{PN=123763},{DESCRIPTION=F4B-SCMAH-112},{WEIGHT=7.1},{A=1.94},{B=5.63},{C=2.02},{D=4.38},{F=1/2},{H=0.63},{J=0.55},{L=2.43},{N=2.88}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
