089600 - Dodge - HD-250X60-TUFR
Regular price
$3,082.82 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

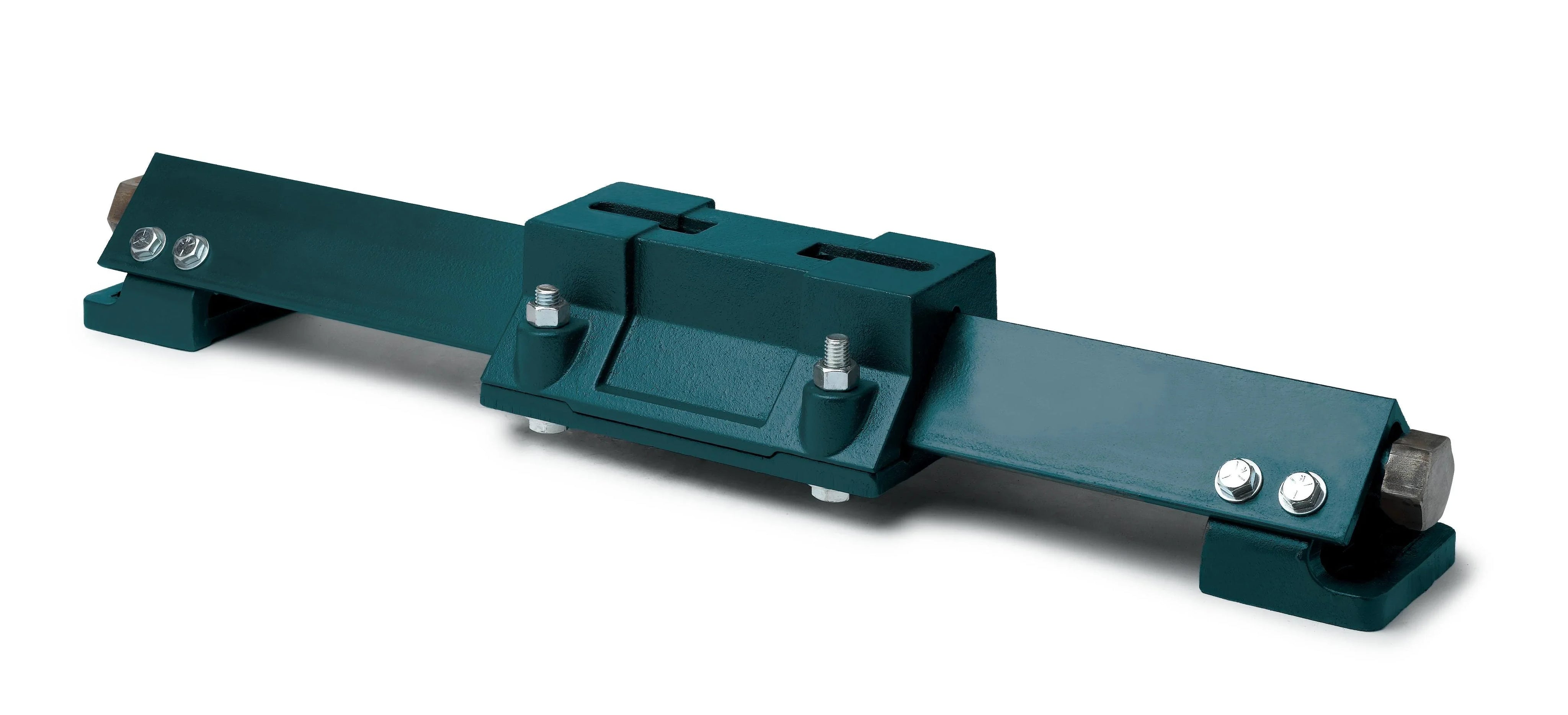

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
089600 - Dodge - HD-250X60-TUFR
HD-250X60-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/heavy_duty_protected_screw_hd/hd_prot_body.prj&varset={FS=HD-250*},{TRAVEL=60},{PN=089600},{WEIGHT=163},{B=83-1/4},{C=6},{D=80-3/4},{E=3},{F=5/8},{G=3/4},{H=3/4},{L=10-3/8},{N=6-1/4},{O=5},{P=13-1/4},{SDQ=4-1/2},{SDQ1=4.50000},{SDR=13},{S=1},{W=8-1/4},{X=3-1/4},{Y=3/4},{ZMIN=10-7/8},{ZMAX=7-5/8}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 60.0000 |
| Take-Up Frame Travel (Unit) | INCH |
