089037 - Dodge - HD-350X36-TUFR
Regular price
$3,373.94 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

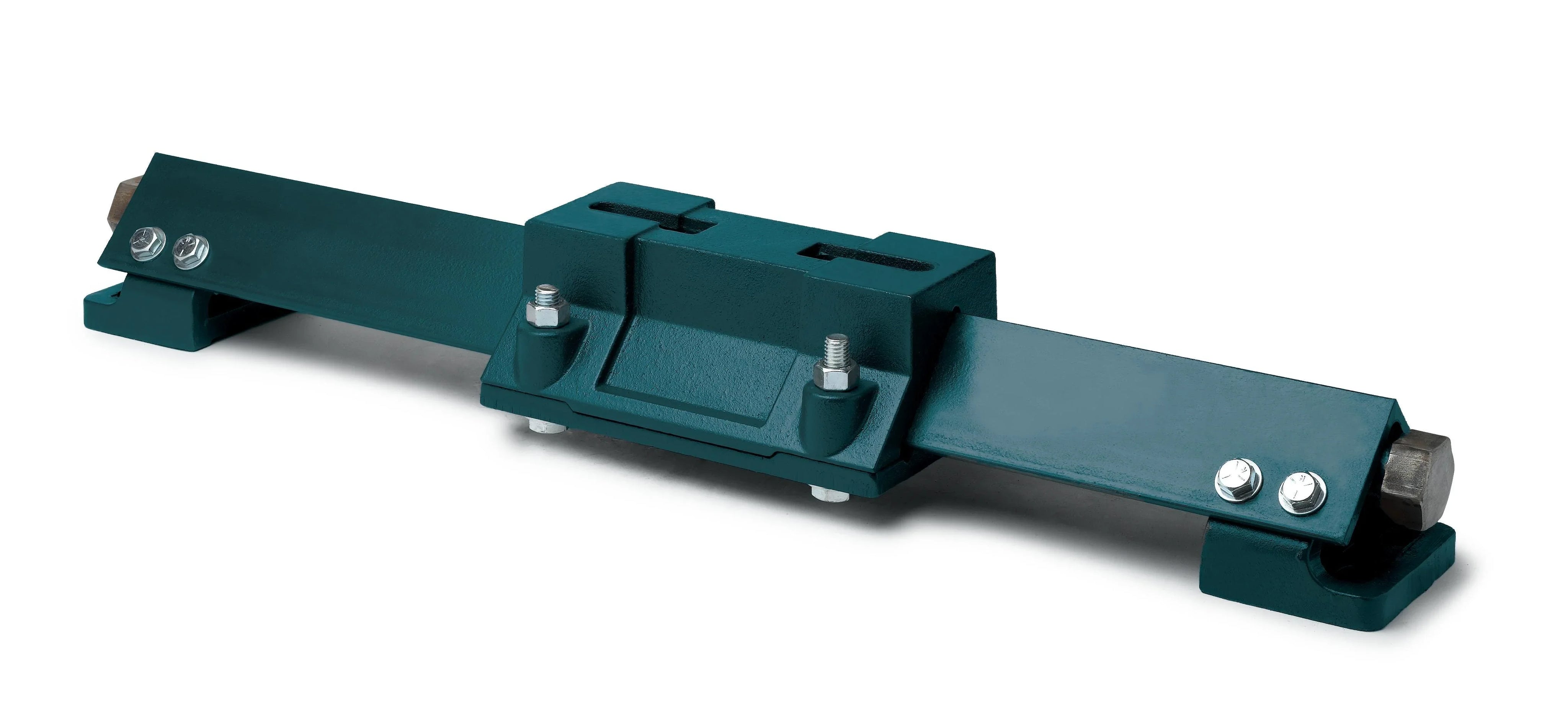

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
089037 - Dodge - HD-350X36-TUFR
HD-350X36-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/heavy_duty_protected_screw_hd/hd_prot_body.prj&varset={FS=HD-350*},{TRAVEL=36},{PN=089037},{WEIGHT=234},{B=64},{C=6-1/2},{D=61-1/4},{E=3},{F=3/4},{G=7/8},{H=7/8},{L=12-5/8},{N=7},{O=6},{P=16},{SDQ=6},{SDQ1=6.00000},{SDR=17},{S=1-1/4},{W=10},{X=3-1/2},{Y=7/8},{ZMIN=13-11/16},{ZMAX=10-3/4}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 36.0000 |
| Take-Up Frame Travel (Unit) | INCH |
