089023 - Dodge - HD-200X30-TUFR
Regular price
$1,948.50 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

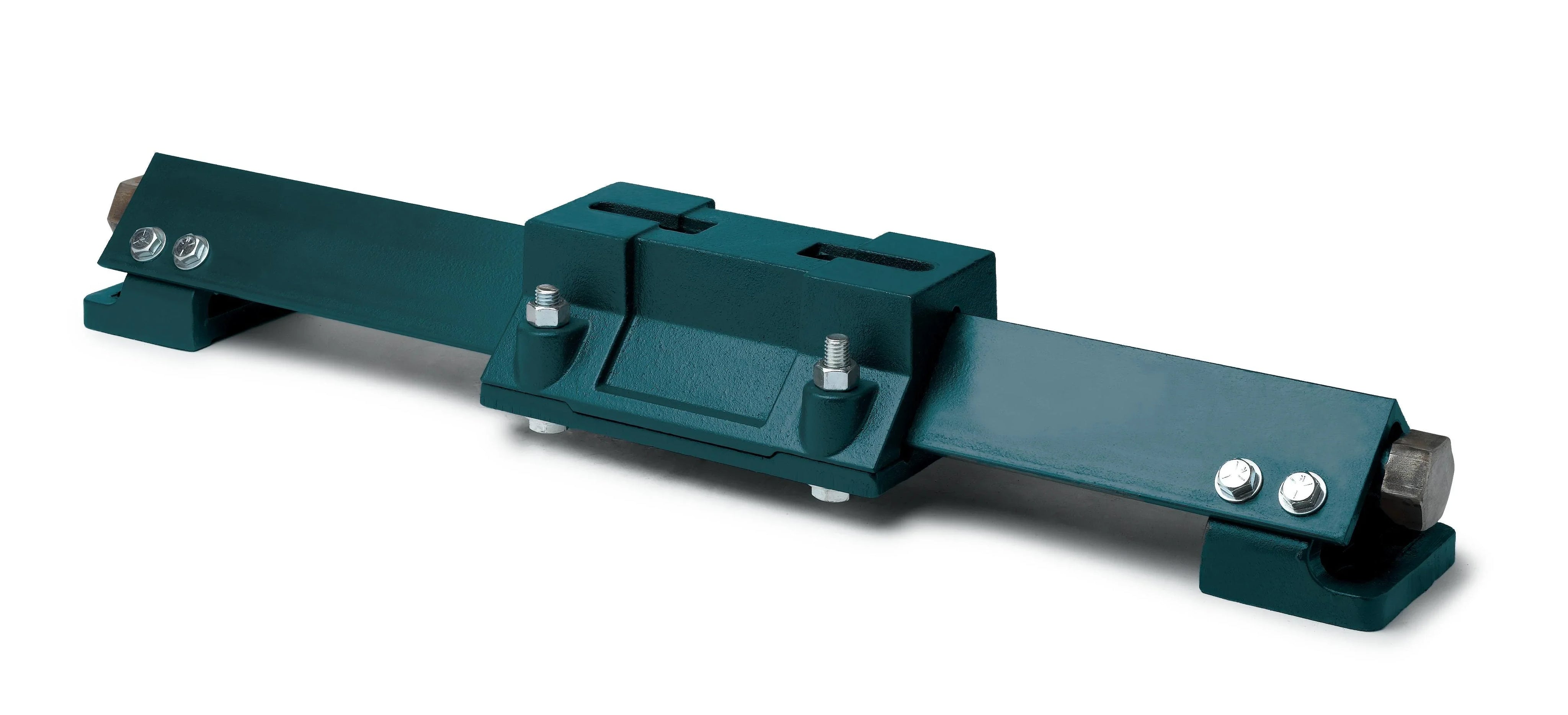

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
089023 - Dodge - HD-200X30-TUFR
HD-200X30-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/heavy_duty_protected_screw_hd/hd_prot_body.prj&varset={FS=HD-200*},{TRAVEL=30},{PN=089023},{WEIGHT=95},{B=47},{C=5},{D=45},{E=2-1/2},{F=5/8},{G=3/4},{H=3/4},{L=8-1/2},{N=5-1/4},{O=4},{P=11},{SDQ=4},{SDQ1=4.00000},{SDR=11},{S=1},{W=7-1/2},{X=2-9/16},{Y=5/8},{ZMIN=9-1/16},{ZMAX=5-15/16}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 30.0000 |
| Take-Up Frame Travel (Unit) | INCH |
