062476 - Dodge - TB-SC-200L-HT
Regular price
$440.62 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

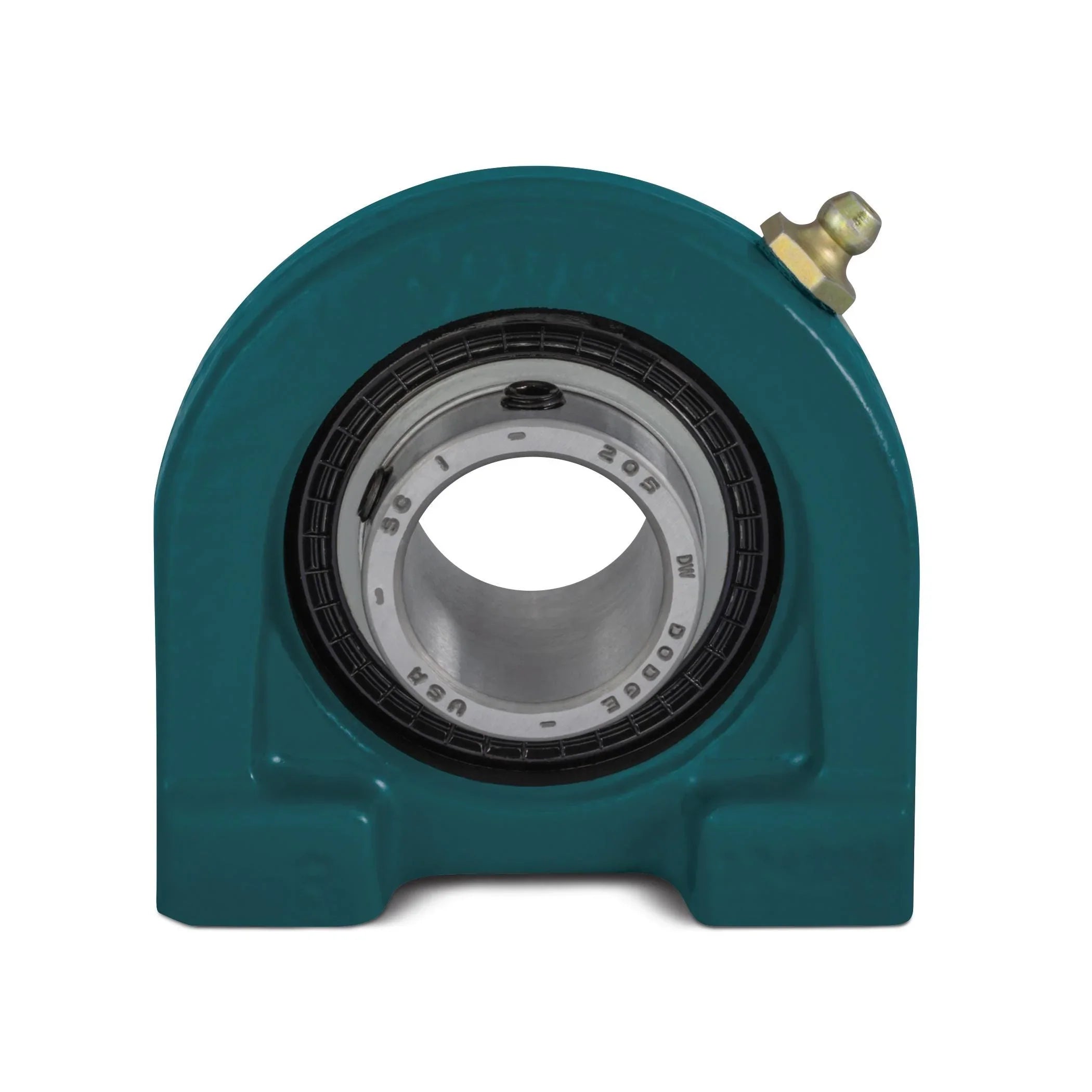

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TB-SC-200L-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 211 Series |
| Base to Center Height | 2.25 in |
| Bearing Type | Ball |
| Bolt Diameter | 0.625 in |
| Bolt to Bolt (Max) | 4 in |
| Bolt to Bolt (Min) | 4 in |
| Bore Length | 2.22 in |
| Dynamic Load Capacity | 7891 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | Krytox GPL 206 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2 in |
| Standoff Housing | No |
| Static Load Capacity | 5213 lbf |
| Suitable for High Temperature | Yes |
| Suitable For Washdown | No |
