059758 - Dodge - WSTU-DLM-215
Regular price
$709.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

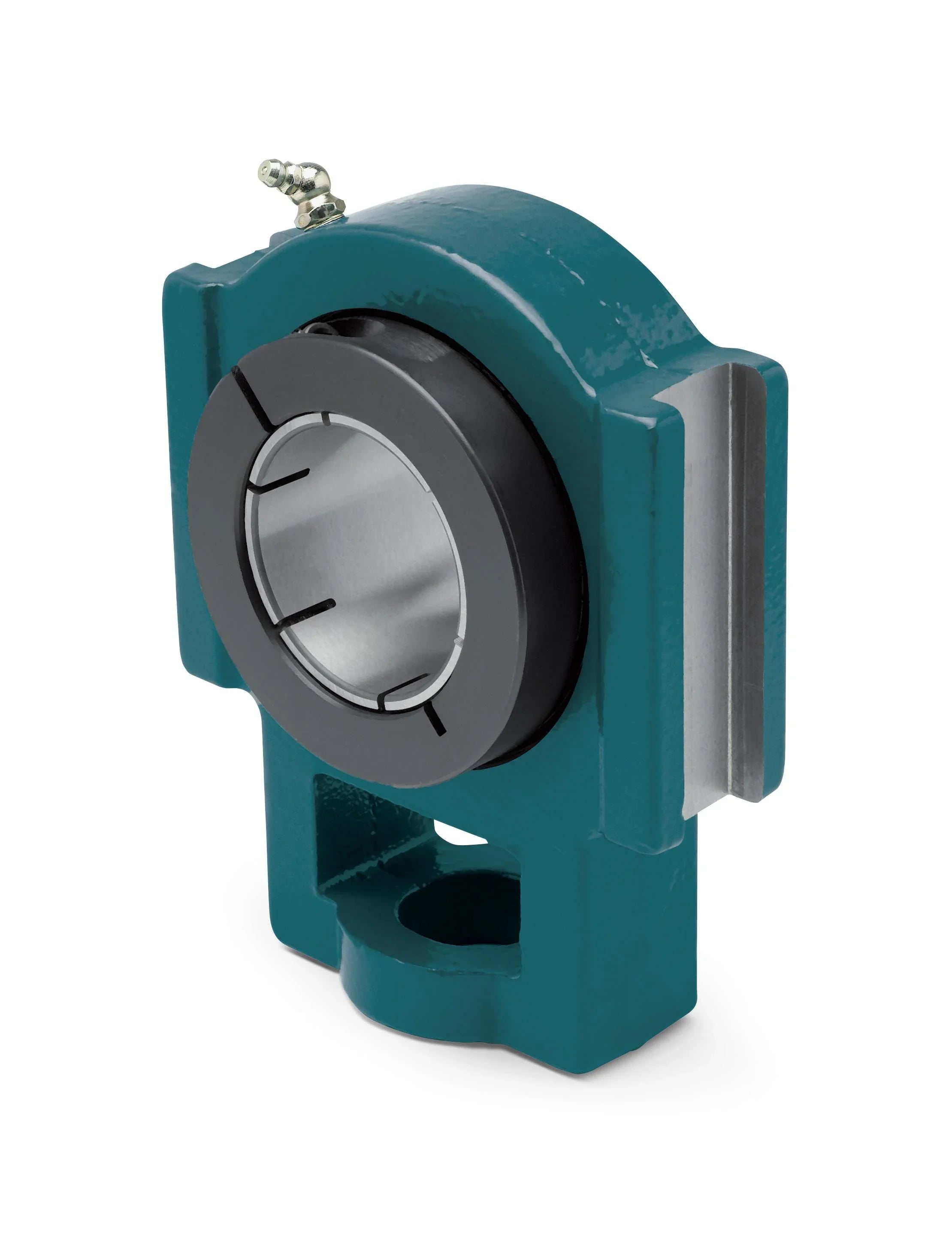

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
059758 - Dodge - WSTU-DLM-215
WSTU-DLM-215
Technical Specifications
| Ball Bearing Series | 216 Series |
| Bearing Type | Ball |
| Bore Length | 2.3800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/wstu_dlm_hi_asmtab.prj&varset={SERIES=216},{SS=2-15/16},{PN=059758},{DESCRIPTION=WSTU-DLM-215},{W=22.9},{FS=WS608},{A=2.62},{B=9.13},{C=1.063},{D=4.75},{E=5.50},{F=1-1/2},{G=0.81},{H=1.25},{J=4.38},{K=2.75},{L=4.99},{M=6.485/6.515},{N=7.25},{R=0.88},{S=1.74},{T=2.75}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17407 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 13102 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-608 |
