057878 - Dodge - SCHB-SC-100
Regular price
$160.94 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

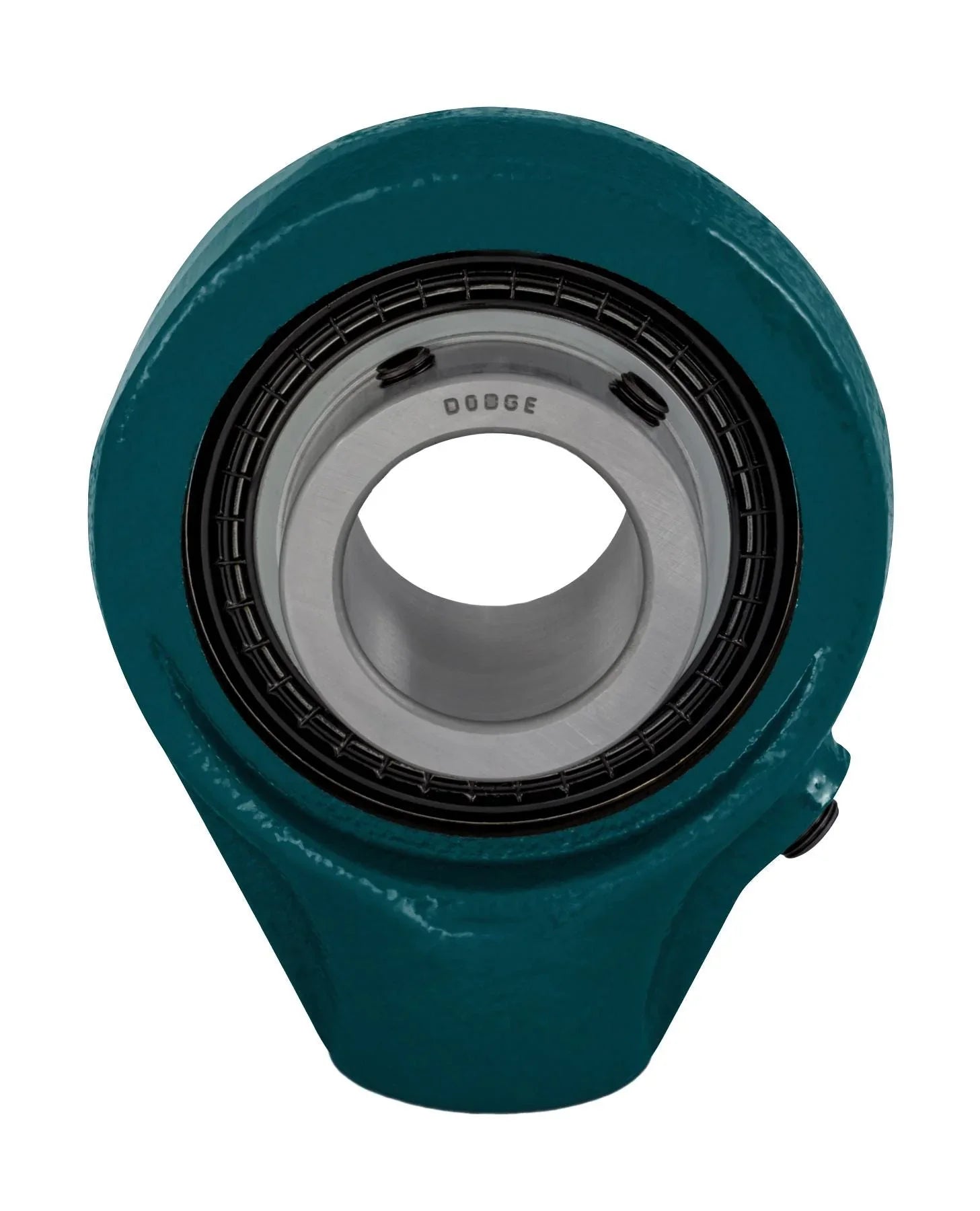

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
057878 - Dodge - SCHB-SC-100
SCHB-SC-100
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/hanger/schb_sc_hi_asmtab.prj&varset={SERIES=206},{SS=1},{PN=057878},{DESCRIPTION=SCHB-SC-100},{W=3.0},{A=1.52},{B=3.12},{C=0.53},{D=0.78},{F=3/4- 14},{G=0.75},{H=0.94},{J=4.06},{K=0.89},{L=1.57},{M=2.50}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Screw Conveyor Hanger |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
