056890 - Dodge - LF-DL-100
Regular price
$91.73 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

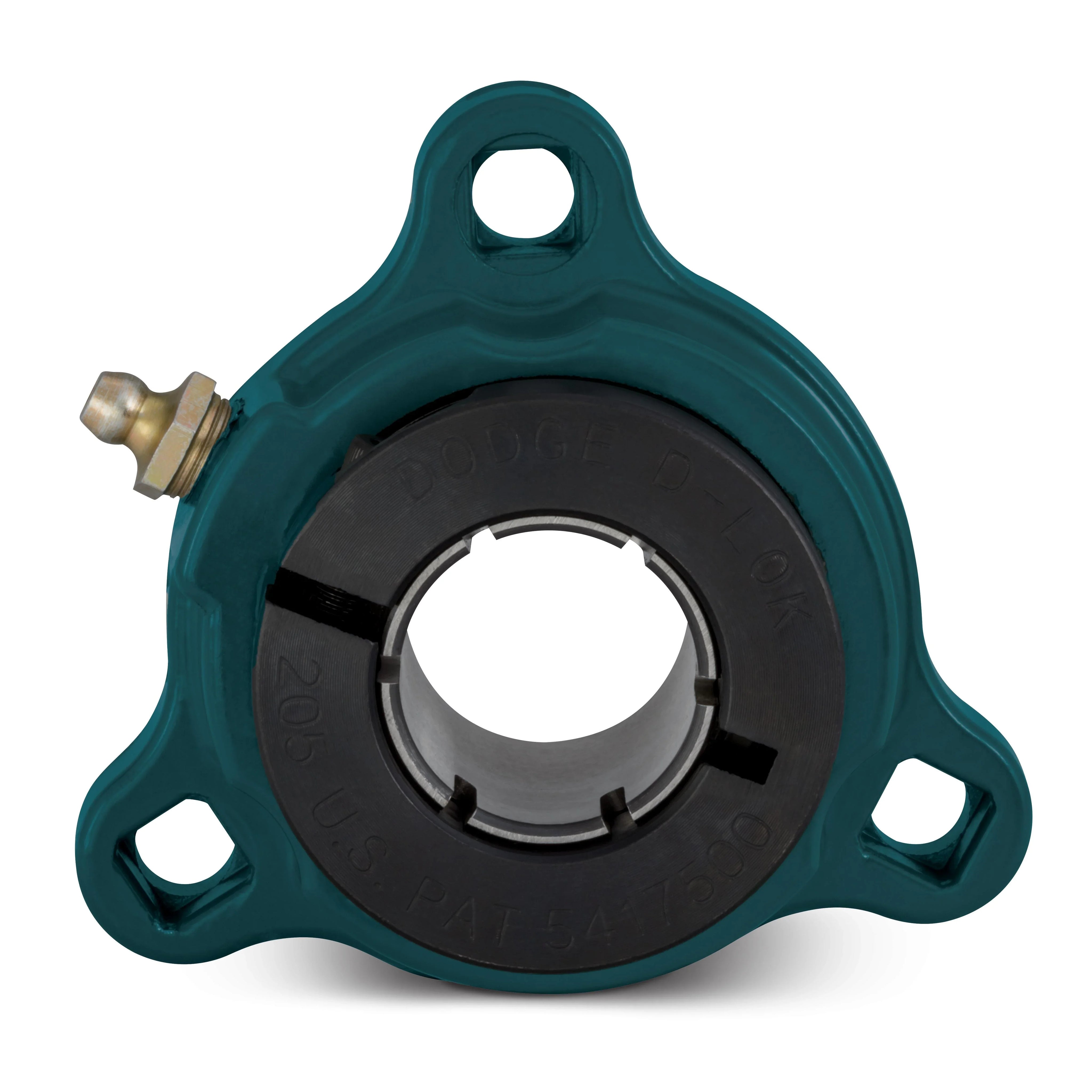

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
056890 - Dodge - LF-DL-100
LF-DL-100
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bolt Circle | 3.0000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.3438 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/lf_dl_asmtab.prj&varset={SERIES=205},{SS=1},{PN=056890},{DESCRIPTION=LF-DL-100},{W=1.00},{A=1.44},{B=3.75},{C=1.35},{D=3.00},{G=0.34},{H=0.42},{J=0.48},{L=1.99},{M=1.88},{N=1.70}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Three-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
