056676 - Dodge - P2B-DLH-200-E
Regular price
$438.05 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

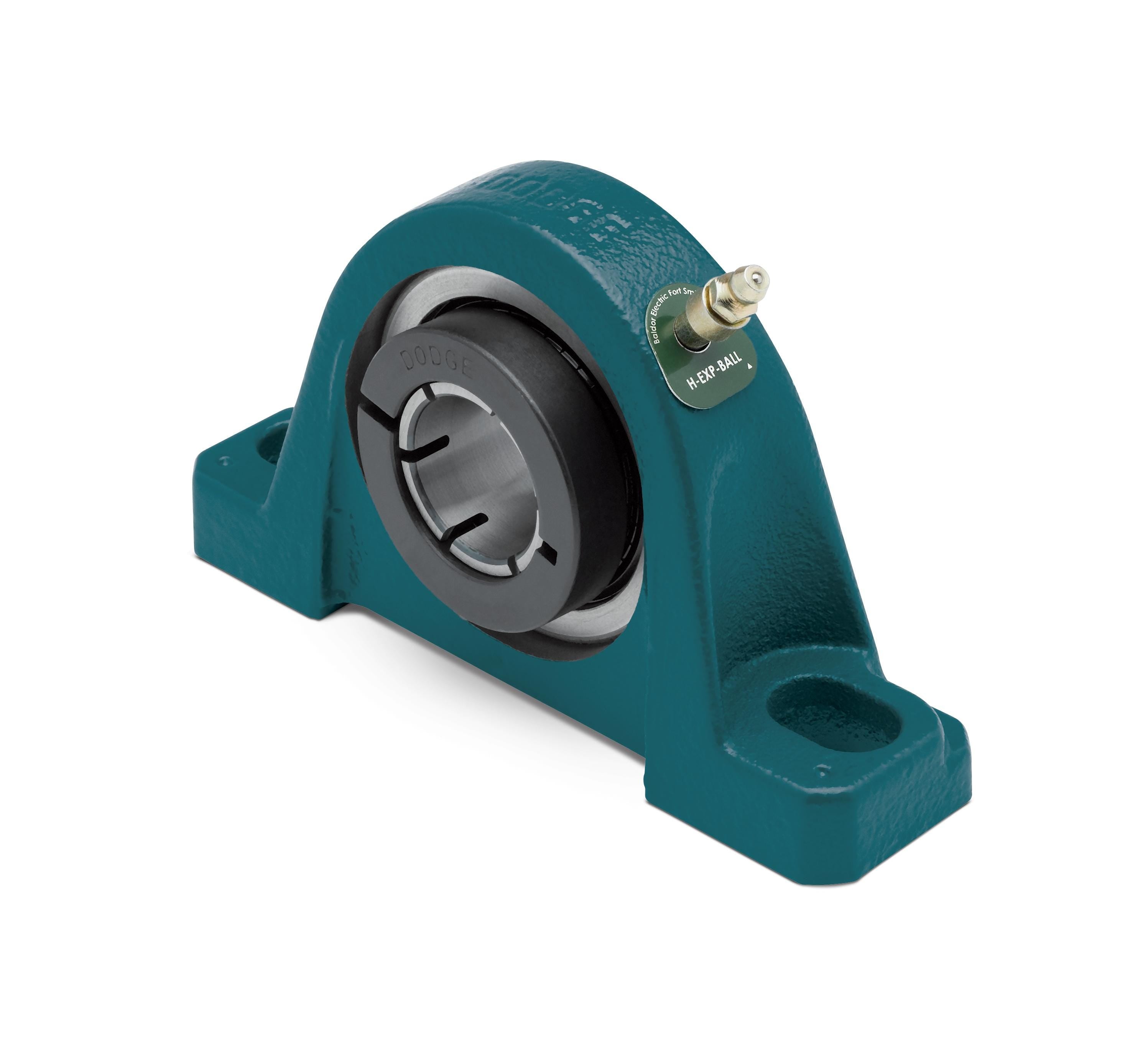

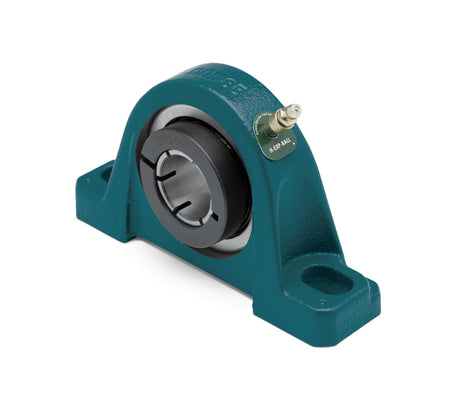

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
056676 - Dodge - P2B-DLH-200-E
P2B-DLH-200-E
Technical Specifications
| Ball Bearing Series | 210 Series |
| Base to Center Height | 2.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/dlh_expansion_asmtab_i.prj&varset={SERIES=210},{SS=2},{PN=056676},{DESCRIPTION=P2B-DLH-200-E},{WEIGHT=10.8},{A=2.01},{B=8.88},{C=2.30},{DMIN=6.38},{DMAX=7.44},{F=5/8},{G=1.21},{H=0.88},{J=4.96},{L=3.24},{M=2.50},{R=0.75},{S=1.26},{T=0.22},{U=3.94},{V=7.88},{W=0.81},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-30,TS-300 |
