056468 - Dodge - CYL-DL-30M
Regular price
$182.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

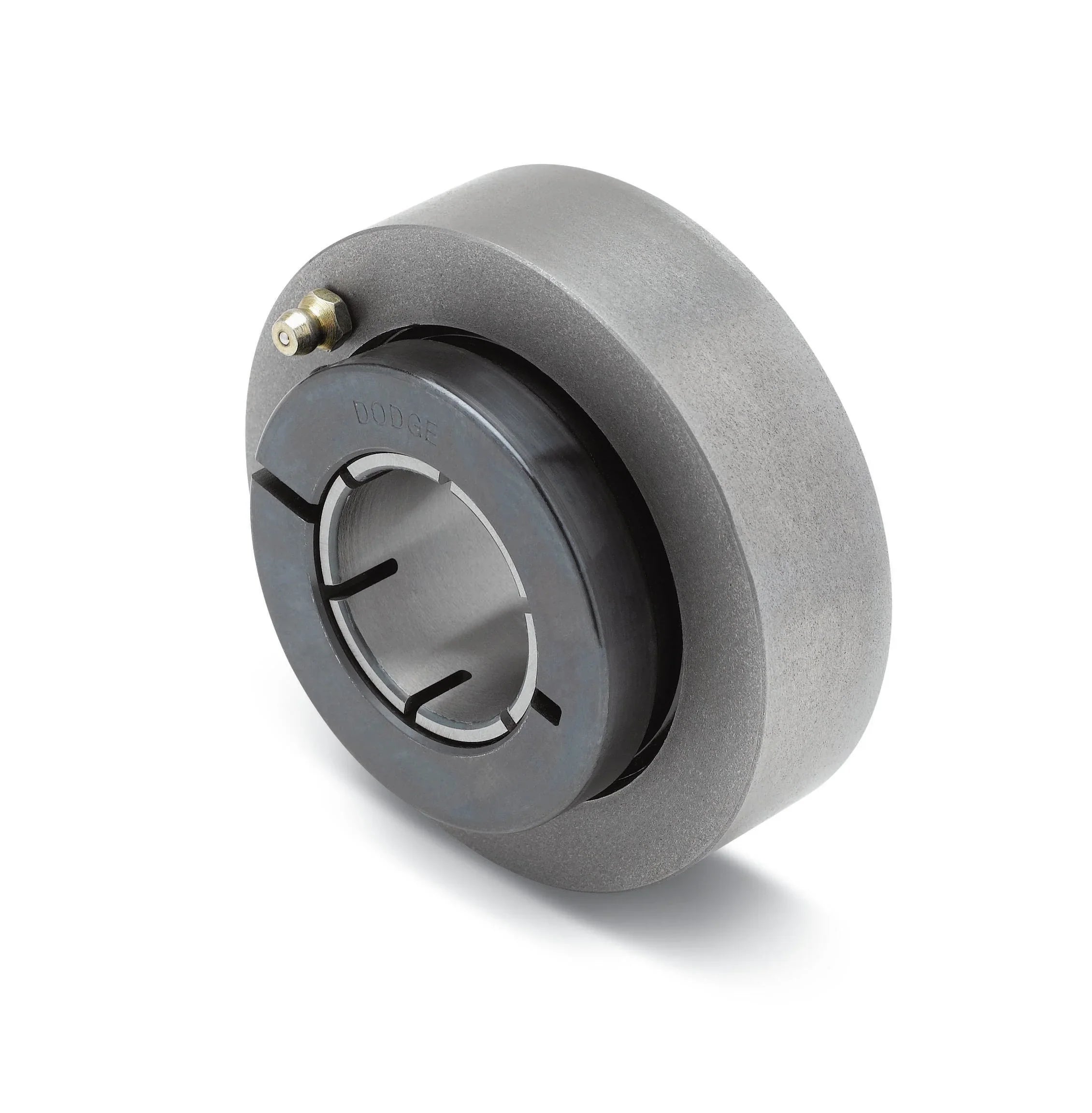

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
056468 - Dodge - CYL-DL-30M
CYL-DL-30M
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/metric/dl_cyl_asmtab_m.prj&varset={SERIES=206},{SS=30},{PN=056468},{DESCRIPTION=CYL-DL-30M},{W=6.5},{A=39.6},{B=23.9},{C=36.1},{D=88.90/88.85},{L=56.4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Cylindrical Unit |
| Insert Material | Steel |
| Insert Outer Diameter | 3.5000 |
| Insert Outer Diameter (Unit) | INCH |
| Lubrication | Grease |
| Maximum Speed | 5500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
