050833 - Dodge - P2B-VSCB-012-NL
Regular price
$53.97 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

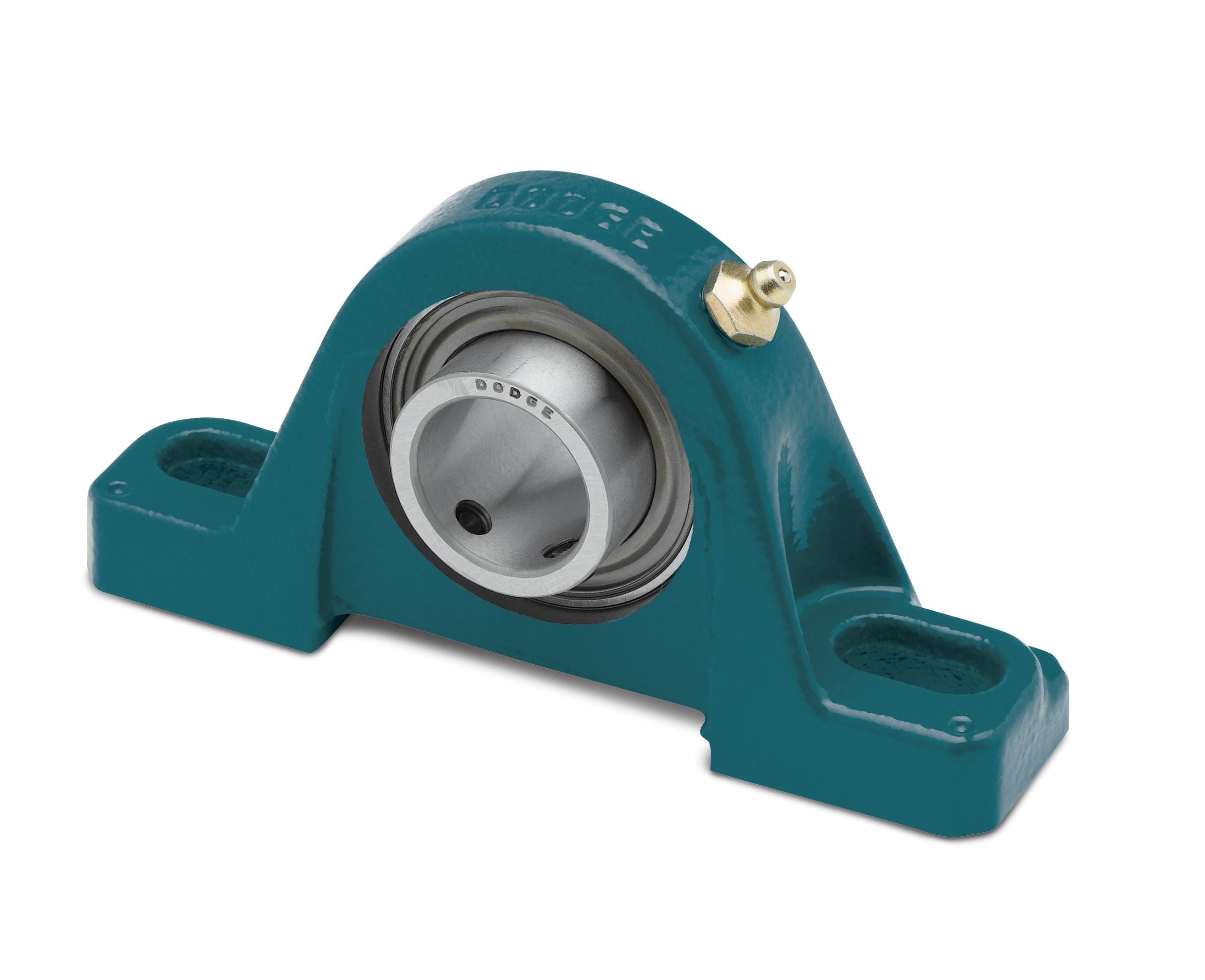

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
050833 - Dodge - P2B-VSCB-012-NL
P2B-VSCB-012-NL
Technical Specifications
| Ball Bearing Series | 204 Series |
| Base to Center Height | 1.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.1900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/pillow_blocks/p2b_vscb_asmtab.prj&varset={RS=204},{SS=3/4},{PN=050833},{DESCRIPTION=P2B-VSCB-012-NL},{LF=NO-LUBE},{WEIGHT=1.4},{A=1.23},{B=5.25},{C=1.34},{DMIN=3.38},{DMAX=4.19},{F=3/8},{G=0.85},{H=0.47},{J=2.49},{L=1.12},{M=1.25},{R=0.50},{S=0.73},{U=2.25},{V=4.50},{W=0.50},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-10,TS-100 |
