049784 - Dodge - P2B-VSC-200L-NL
Regular price
$152.11 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

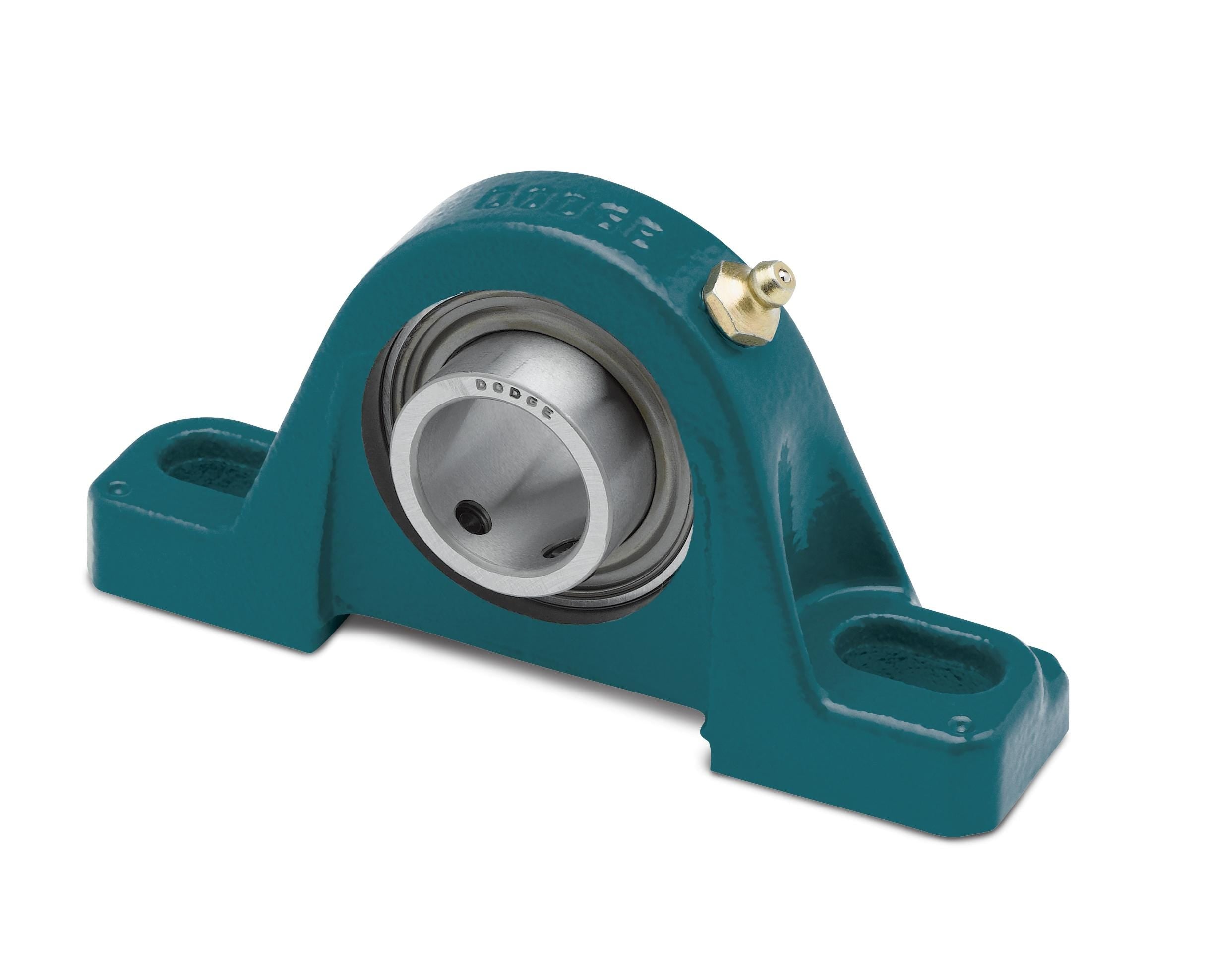

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
049784 - Dodge - P2B-VSC-200L-NL
P2B-VSC-200L-NL
Technical Specifications
| Ball Bearing Series | 211 Series |
| Base to Center Height | 2.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.2200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/pillow_blocks/p2b_pillow_block_asmtab.prj&varset={RS=211},{SS=2},{PN=049784},{DESCRIPTION=P2B-VSC-200L-NL},{LF=NO-LUBE},{WEIGHT=9.0},{A=2.22},{B=8.88},{C=2.30},{DMIN=6.38},{DMAX=7.44},{F=5/8},{G=1.21},{H=0.88},{J=4.96},{L=2.71},{M=2.50},{R=0.87},{S=1.35},{U=3.94},{V=7.88},{W=0.81},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-40,TS-300 |
