049496 - Dodge - WSTU-DL-30M MOD
Regular price
$153.50 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

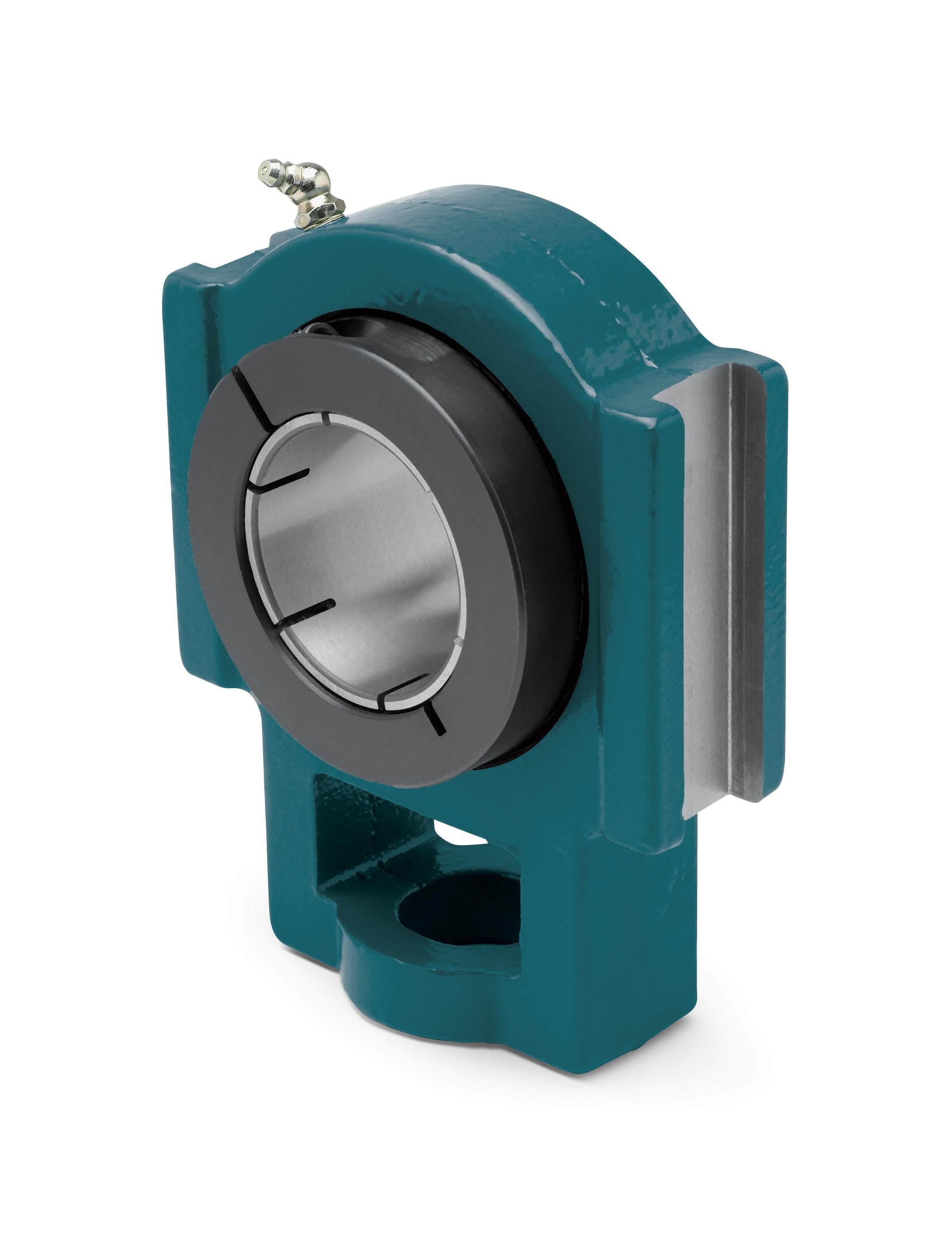

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
049496 - Dodge - WSTU-DL-30M MOD
WSTU-DL-30M MOD
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bore Length | 1.5600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/metric/wstu_dl_hm_asmtab.prj&varset={PN=049496},{SERIES=206},{SS=30},{DESCRIPTION=WSTU-DL-30M},{W=1.3},{FS=WS308},{A=39.6},{B=111.3},{C=13.49},{D=57.2},{E=69.9},{F=19.1},{G=9.7},{H=16.0},{J=55.6},{K=36.6},{L=56.40},{M=88.39/89.15},{N=104.9},{R=14.7},{S=24.9},{T=41.3}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-308 |
