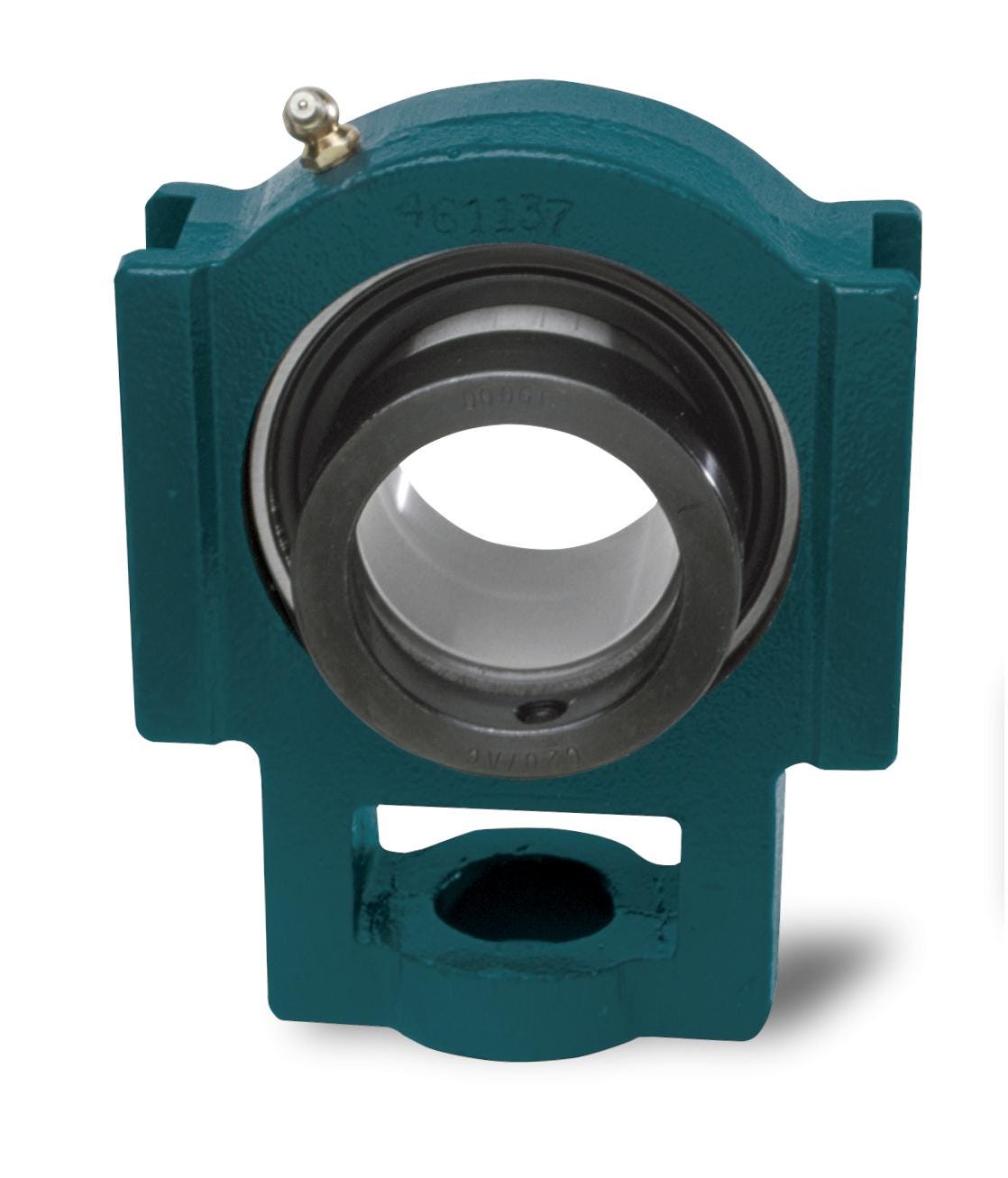

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
049385 - Dodge - WSTU-SXR-215
WSTU-SXR-215
Technical Specifications
| Ball Bearing Series | 215 Series |
| Bearing Type | Ball |
| Bore Length | 3.0200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/take_up/wstu_sxr_hi_asmtab.prj&varset={SERIES=215},{SS=2-15/16},{PN=049385},{DESCRIPTION=WSTU-SXR-215},{LF=RE-LUBE},{W=21.0},{FS=WS515},{A=3.02},{B=9.13},{C=1.063},{D=4.75},{E=5.50},{F=1-1/2},{G=0.81},{H=1.25},{J=4.38},{K=2.75},{L=4.00},{M=5.923/5.953},{N=6.69},{R=0.86},{S=2.16},{T=2.75}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-515 |
