039015 - Dodge - LD-50X12-TUFR
Regular price
$872.18 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

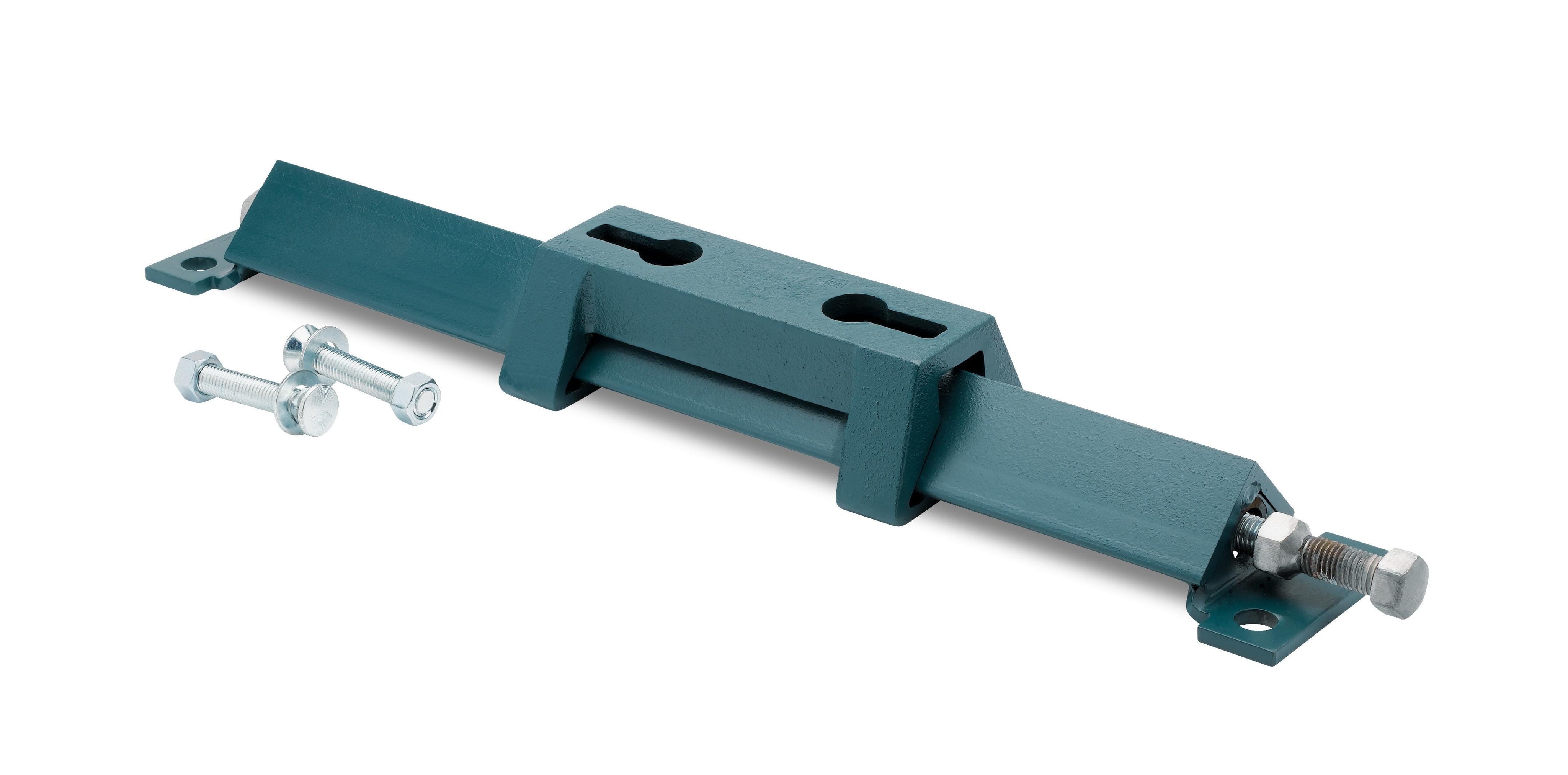

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039015 - Dodge - LD-50X12-TUFR
LD-50X12-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/light_duty_protected_screw_ld/ld_tuf_body.prj&varset={FS=LD-50x12},{PN=039015},{WEIGHT=54},{B=33-1/4},{C=5},{D=31-1/2},{E=3},{F=3/4},{H=5/16},{J=2},{K=11/16},{L=9-3/4},{N=4-1/8},{O=2-1/2},{P=13-1/2},{Q=3-1/2},{R=13},{AT=14-3/4},{S=1},{W=5-7/8},{X=1-1/4},{YMIN=7-5/8},{YMAX=11-7/8},{Z=7/8 x 4},{ANG=3 x 3 x 1/2},{KO=0.50000},{HEX=1.50000},{HEXWIDTH=0.54000}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 12.0000 |
| Take-Up Frame Travel (Unit) | INCH |
