039014 - Dodge - LD-40X18-TUFR
Regular price
$604.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

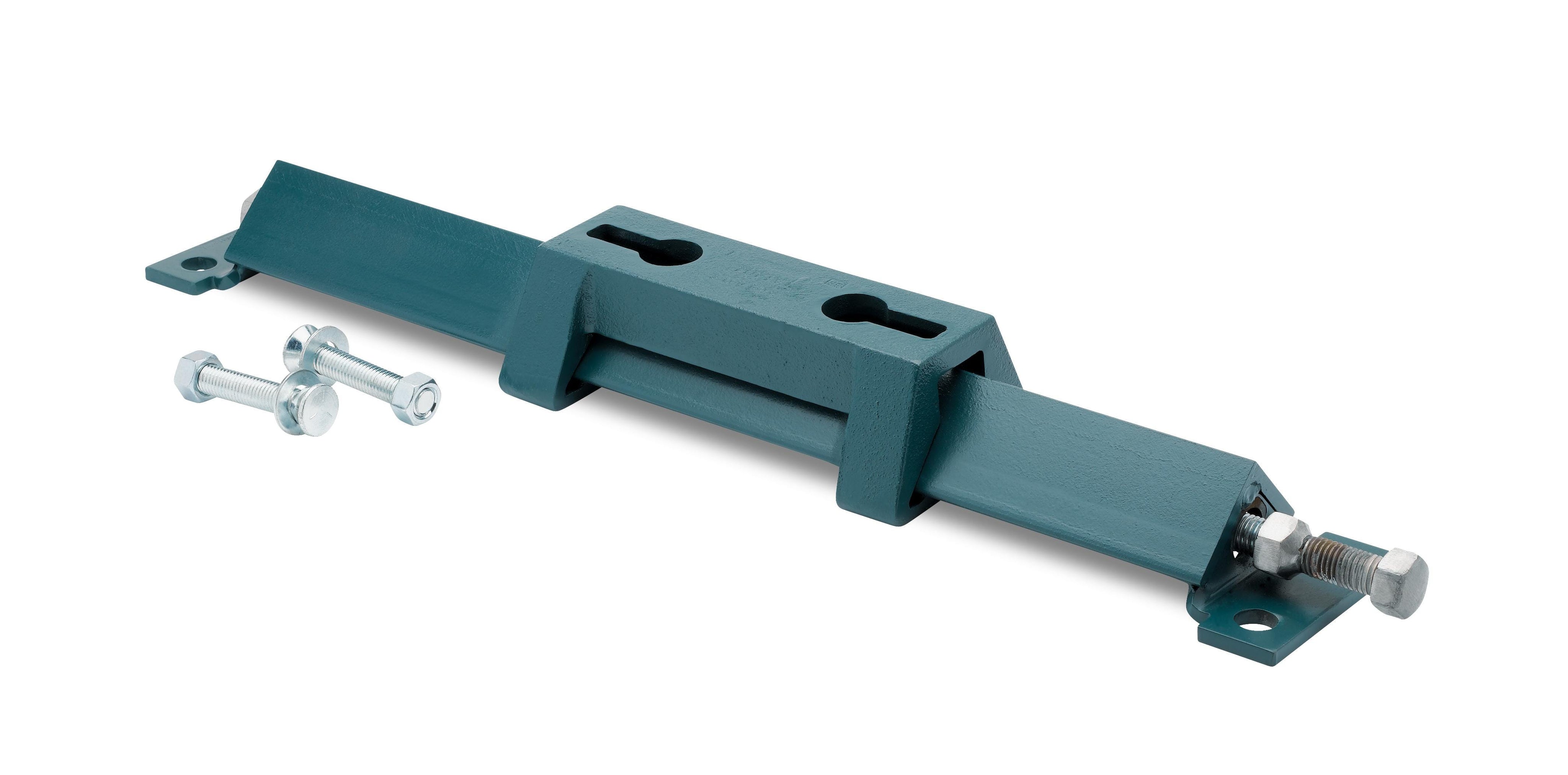

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039014 - Dodge - LD-40X18-TUFR
LD-40X18-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/light_duty_protected_screw_ld/ld_tuf_body.prj&varset={FS=LD-40x18},{PN=039014},{WEIGHT=28},{B=34-1/4},{C=4-3/4},{D=32-1/2},{E=3},{F=5/8},{H=5/16},{J=1-3/4},{K=9/16},{L=7-1/4},{N=3-3/16},{O=2-1/4},{P=9-3/4},{Q=2-1/2},{R=9-1/4},{AT=20},{S=3/4},{W=4-3/4},{X=1-1/16},{YMIN=6-3/8},{YMAX=7-7/8},{Z=5/8 x 3},{ANG=2-1/2 x 2-1/2 x 5/16},{KO=0.50000},{HEX=1.12500},{HEXWIDTH=0.42000}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 18.0000 |
| Take-Up Frame Travel (Unit) | INCH |
