039010 - Dodge - LD-20X18-TUFR
Regular price
$355.15 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

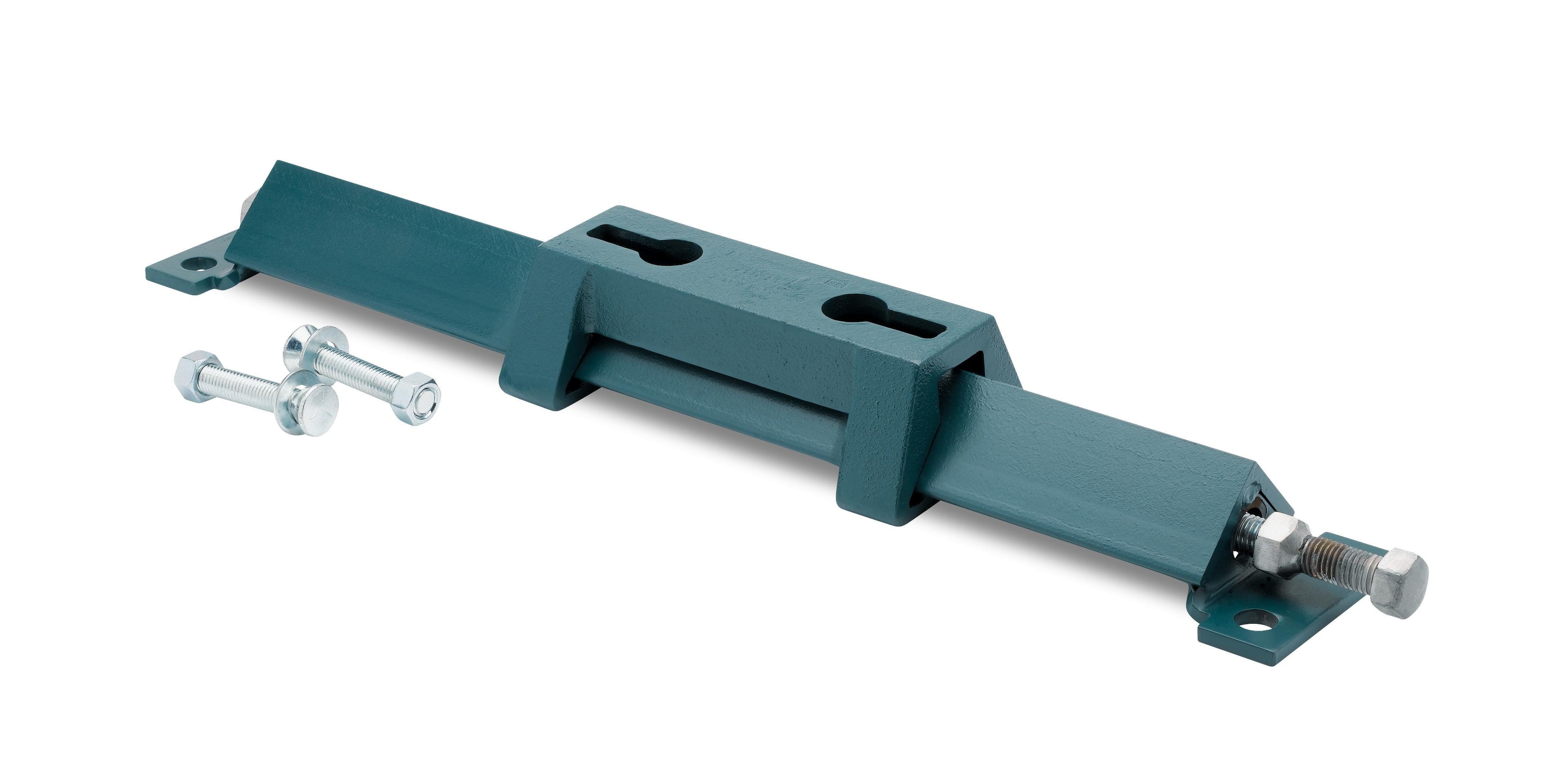

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039010 - Dodge - LD-20X18-TUFR
LD-20X18-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/light_duty_protected_screw_ld/ld_tuf_body.prj&varset={FS=LD-20x18},{PN=039010},{WEIGHT=17},{B=33-1/2},{C=3-3/4},{D=32},{E=2-1/2},{F=3/8},{H=1/4},{J=1-3/4},{K=9/16},{L=7},{N=2-19/32},{O=2-1/8},{P=7-3/4},{Q=2-1/8},{R=7-1/4},{AT=21-7/16},{S=3/4},{W=3-3/4},{X=15/16},{YMIN=4-7/16},{YMAX=6-1/4},{Z=1/2 x 2-1/2},{ANG=2 x 2 x 1/4},{KO=0.31500},{HEX=1.00000},{HEXWIDTH=0.42000}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 18.0000 |
| Take-Up Frame Travel (Unit) | INCH |
