038218 - Dodge - WS-502X15-TUFR
Regular price
$329.78 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

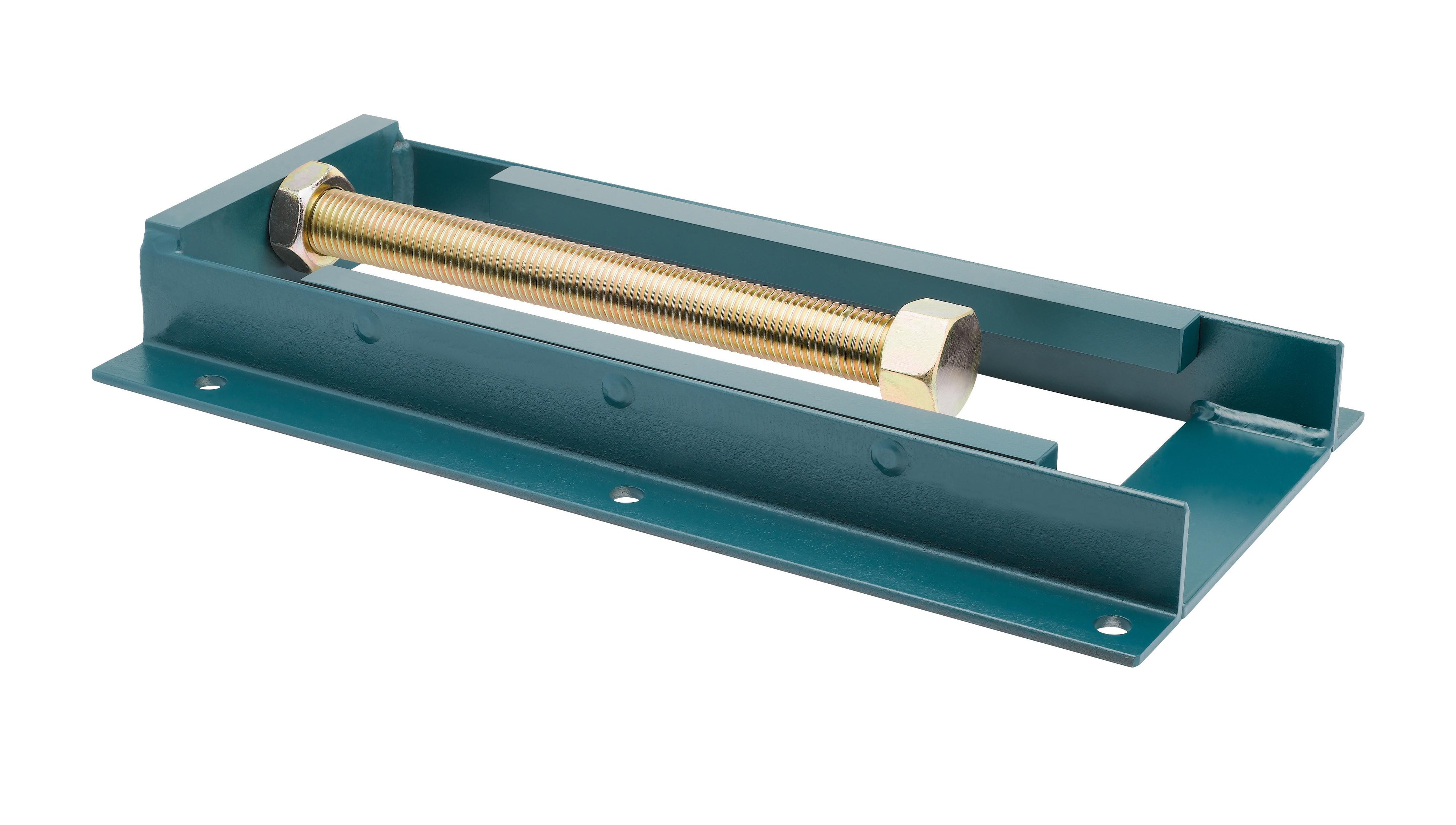

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
038218 - Dodge - WS-502X15-TUFR
WS-502X15-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/wide_slot_ws/ws_tufr_body.prj&varset={DESCRIPTION=WS-502X15-TUFR},{PN=038218},{WEIGHT=30.5},{B=23-3/4},{C=10-7/16},{D=10-3/4},{E=8-5/8},{FN=6},{FD=9/16},{G=5-11/16},{H=3/16},{J=2-1/2},{K=1-1/2},{M=5-3/16},{S=1-1/4},{T=1-1/8}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 15.0000 |
| Take-Up Frame Travel (Unit) | INCH |
