038110 - Dodge - NS-308X6-TUFR
Regular price
$136.50 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

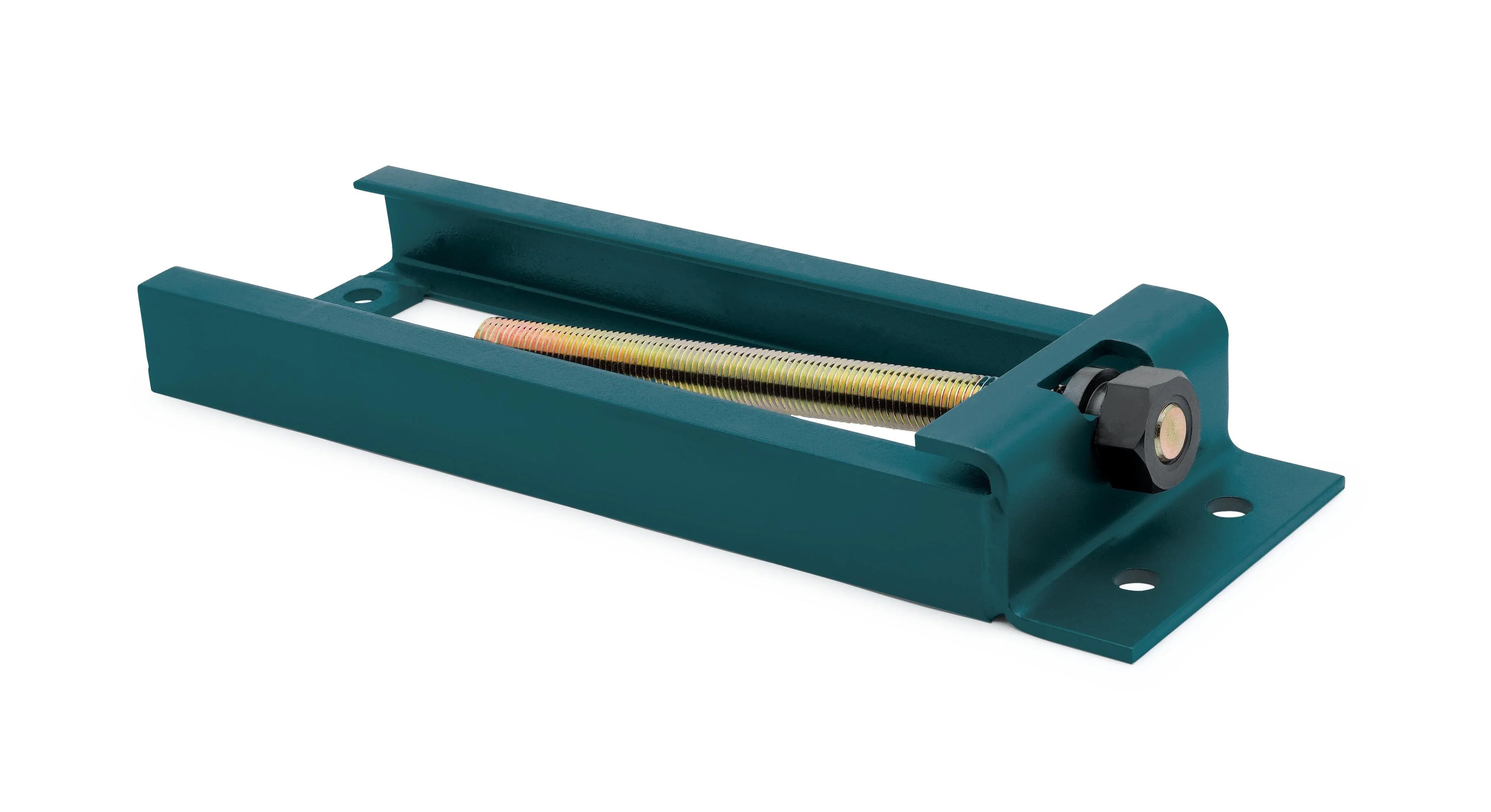

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
038110 - Dodge - NS-308X6-TUFR
NS-308X6-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/narrow_slow_ns/ns_tufr_body.prj&varset={DESCRIPTION=NS-308X6-TUFR},{PN=038110},{WEIGHT=5.8},{B=13-5/8},{C=4-11/16},{D=12-1/8},{E=2-1/4},{FN=4},{FD=1/2},{G=5-3/8},{H=1/4},{I=3-9/16},{J=10-13/16},{K=1-13/32},{R=1-5/16},{S=3/4-10},{T=3/4},{U=1-1/2},{CH=1-1/2*9/16*3/16}&hidePortlets=searchHeader |
| Take-Up Frame Size | NS-308 |
| Take-Up Frame Travel | 6.0000 |
| Take-Up Frame Travel (Unit) | INCH |
