138979 - Dodge - FBSO-SCFS-30M-SHFS
Regular price
$291.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

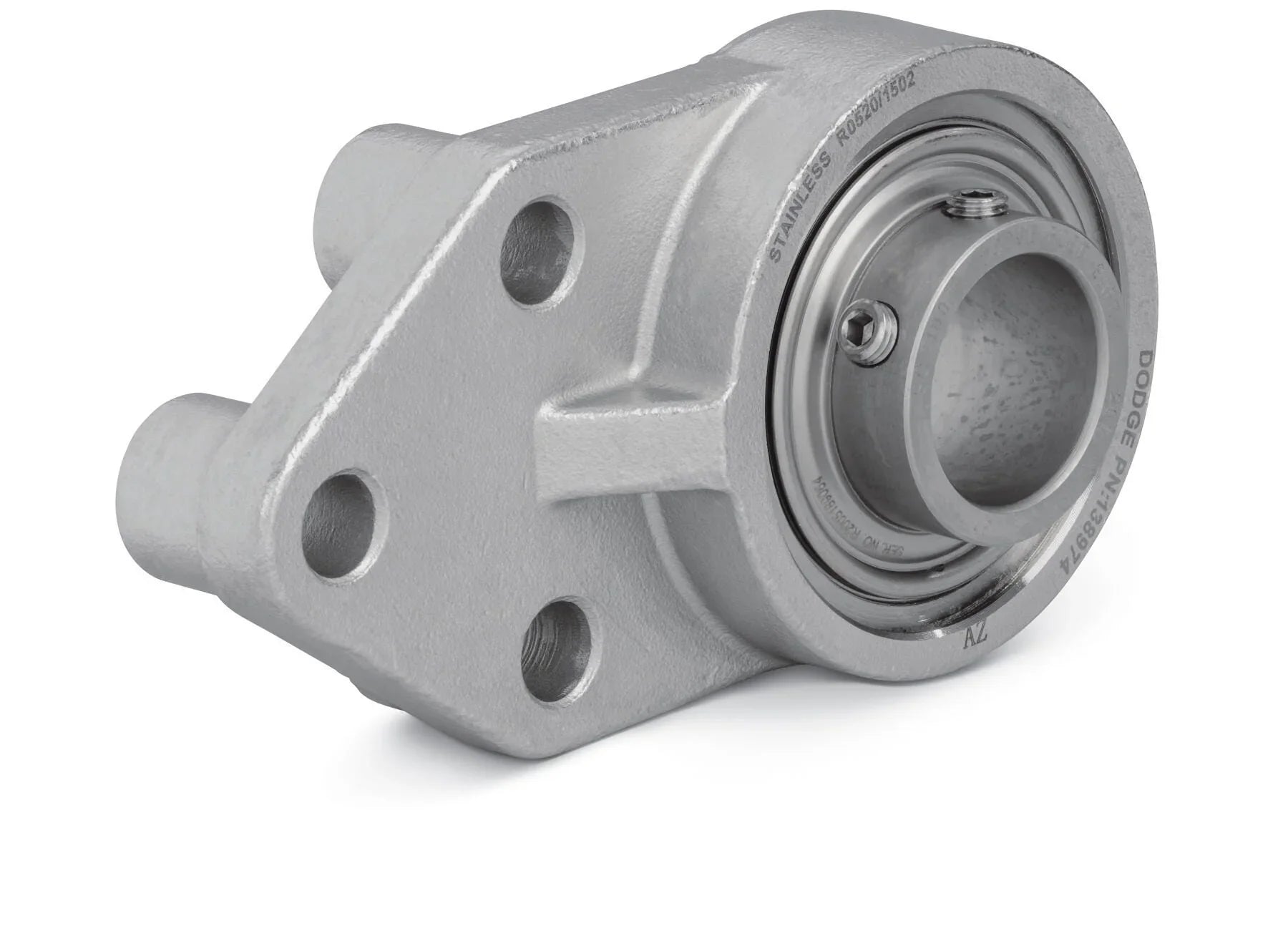

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138979 - Dodge - FBSO-SCFS-30M-SHFS
FBSO-SCFS-30M-SHFS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 1.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 1.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/fb_scfs_so_m_asmtab.prj&varset={SERIES=206},{SS=30},{PN=138979},{DESCRIPTION=FBSO-SCFS-30M-SHFS},{W=0.96},{A=38.6},{B=134.9},{C=49.3},{D=47.8},{E=52.3},{F=M10},{G=31.8},{H=22.4},{I=95.3},{J=79.5},{K=37.6},{L=39.9},{M=69.9},{T=12.7}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3713 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Flanged Bracket |
| Insert Outer Diameter | 62.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 675 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
