138976 - Dodge - FBSO-SCFS-102-SHFS
Regular price
$291.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

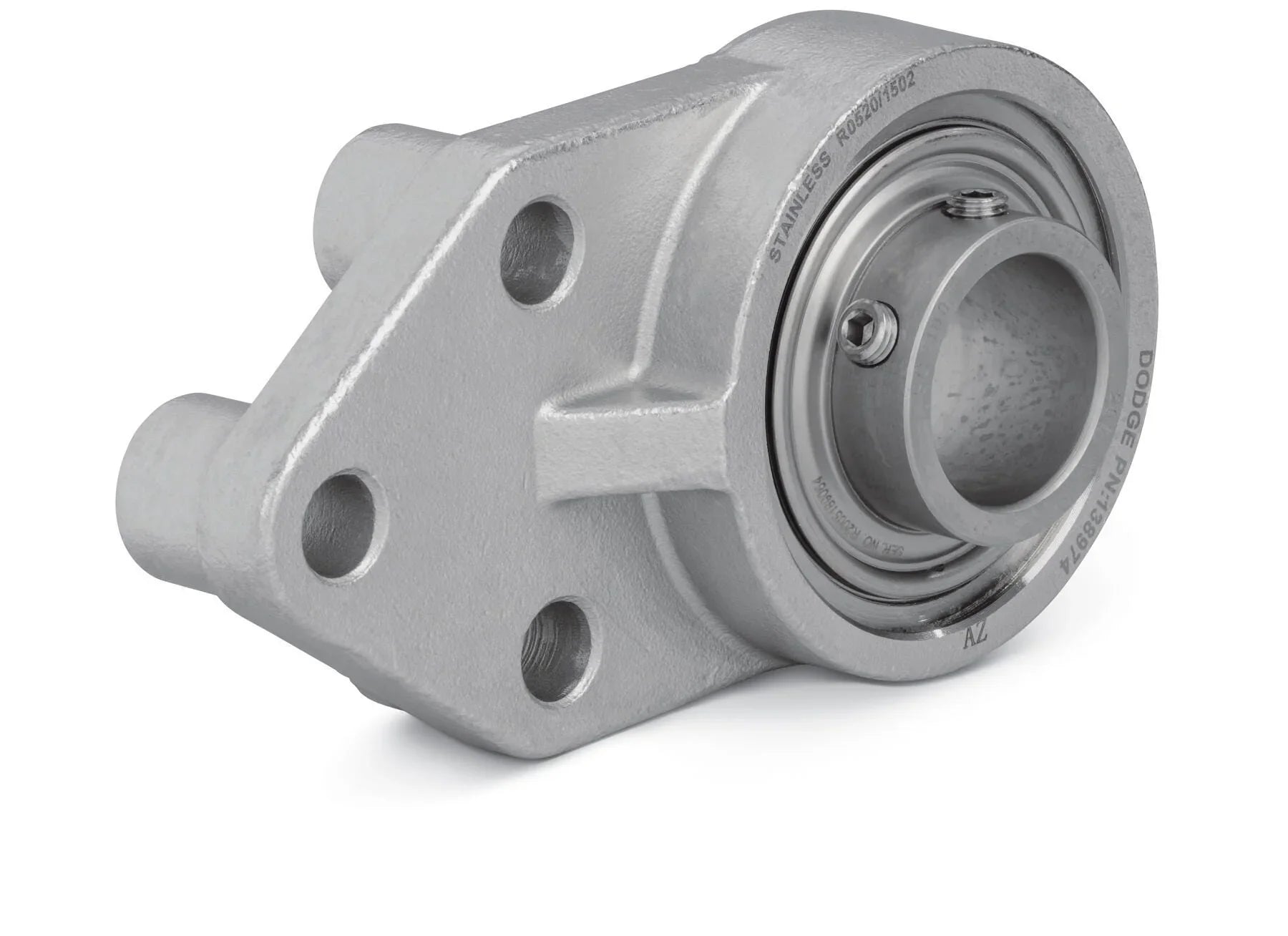

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138976 - Dodge - FBSO-SCFS-102-SHFS
FBSO-SCFS-102-SHFS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 1.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 1.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/fb_scfs_so_asmtab.prj&varset={SERIES=206},{SS=1-1/8},{W=2.12},{A=1.52},{B=5.31},{C=1.94},{D=1.88},{E=2.06},{F=3/8},{G=1.25},{H=0.88},{I=3.75},{J=3.13},{K=1.48},{L=1.57},{M=2.75},{T=0.50}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3713 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Flanged Bracket |
| Insert Outer Diameter | 62.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 675 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.1250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
