138968 - Dodge - FBSO-SCFS-008L-SHFS
Regular price
$229.50 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

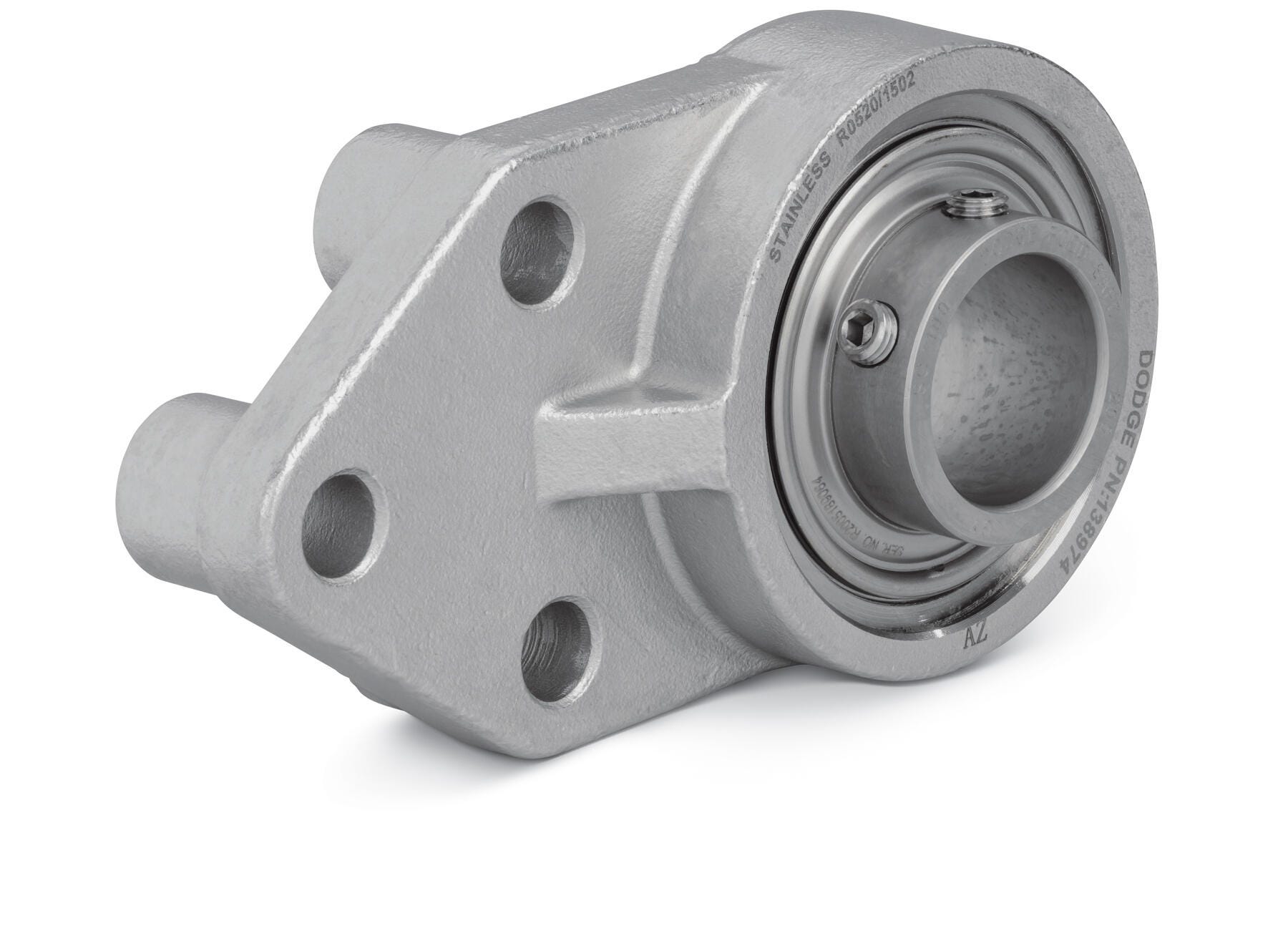

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138968 - Dodge - FBSO-SCFS-008L-SHFS
FBSO-SCFS-008L-SHFS
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 1.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 1.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/fb_scfs_so_asmtab.prj&varset={SERIES=204},{SS=1/2},{W=1.34},{A=1.23},{B=4.19},{C=1.68},{D=1.50},{E=1.69},{F=3/8},{G=0.88},{H=0.81},{I=3.00},{J=2.38},{K=1.33},{L=1.12},{M=2.38},{T=0.50}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2464 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Flanged Bracket |
| Insert Outer Diameter | 47.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 950 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
