138956 - Dodge - F4BSO-SCFS-25M-SHFS
Regular price
$248.94 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

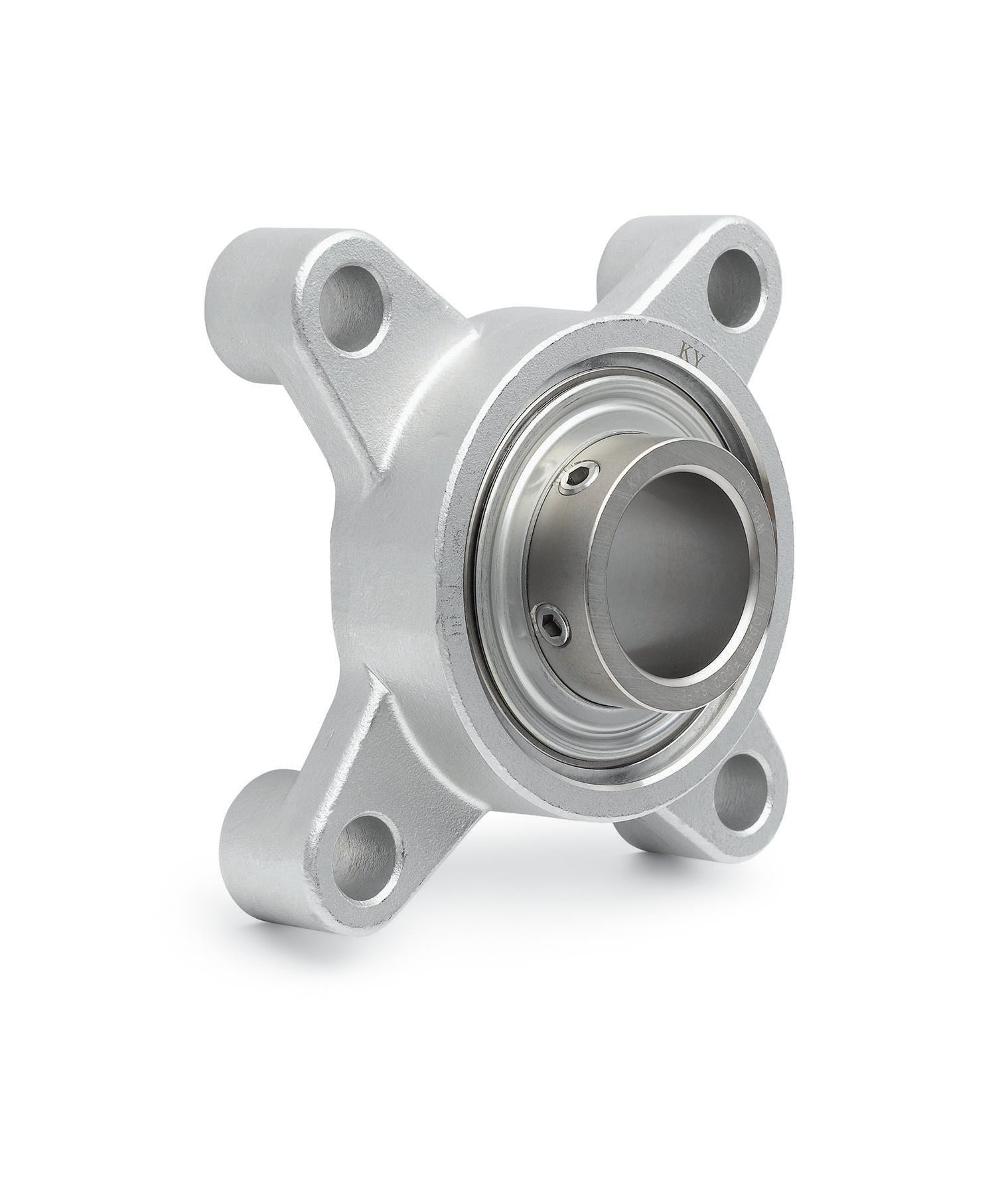

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138956 - Dodge - F4BSO-SCFS-25M-SHFS
F4BSO-SCFS-25M-SHFS
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.7500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/f4b_scfs_so_m_asmtab.prj&varset={SERIES=205},{SS=25},{PN=138956},{DESCRIPTION=F4B-SCFS-25M-SHFS},{W=0.77},{A=34.0},{B=95.3},{C=43.9},{D=69.9},{F=M10},{H=22.1},{J=9.4},{L=33.5},{T=12.7}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2674 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Outer Diameter | 52.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 825 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Standoff Height | 12.7000 |
| Standoff Height (Unit) | MILLIMETER |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
