138929 - Dodge - TBSO-SCFS-40M-SHFS
Regular price
$370.98 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

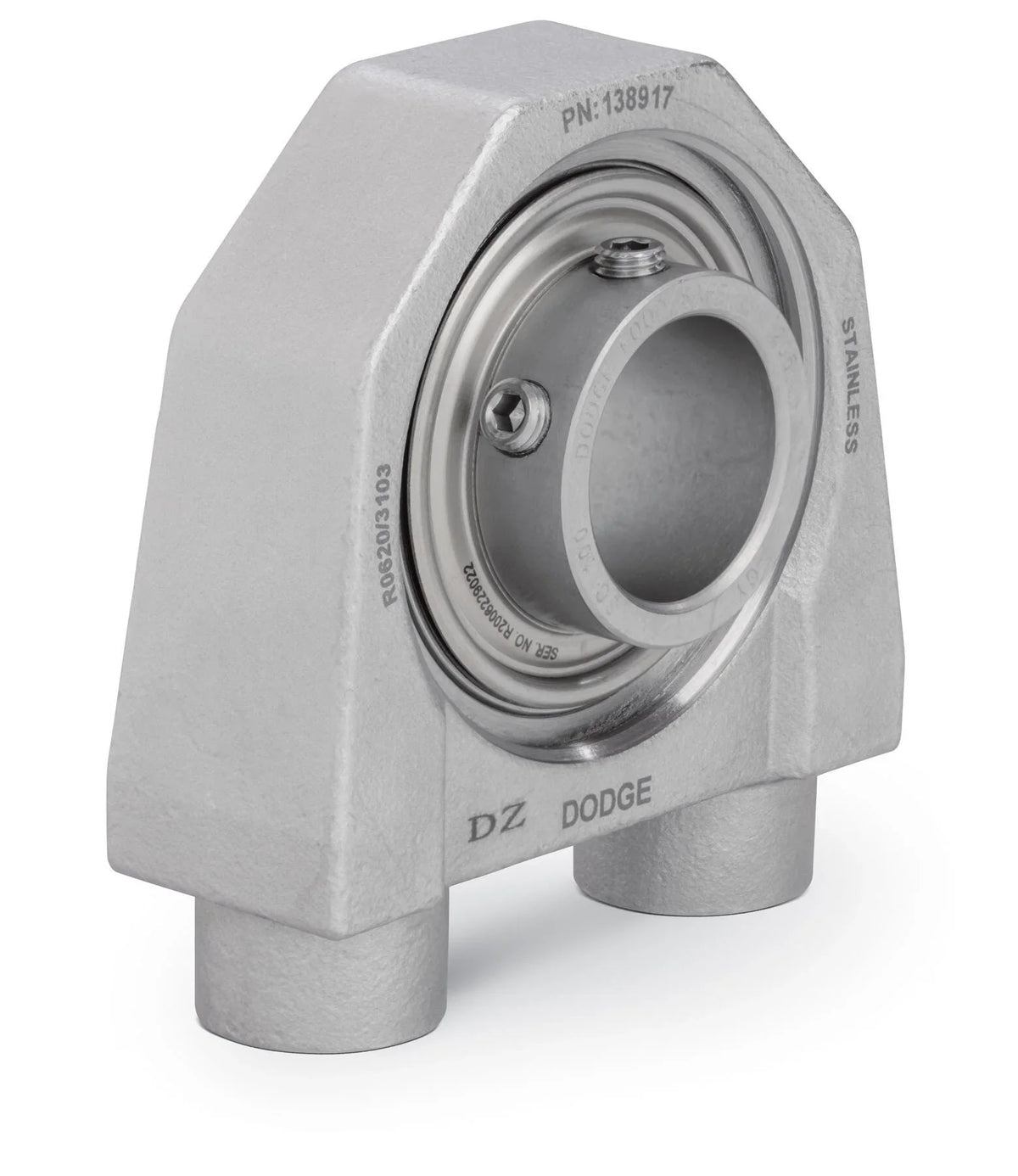

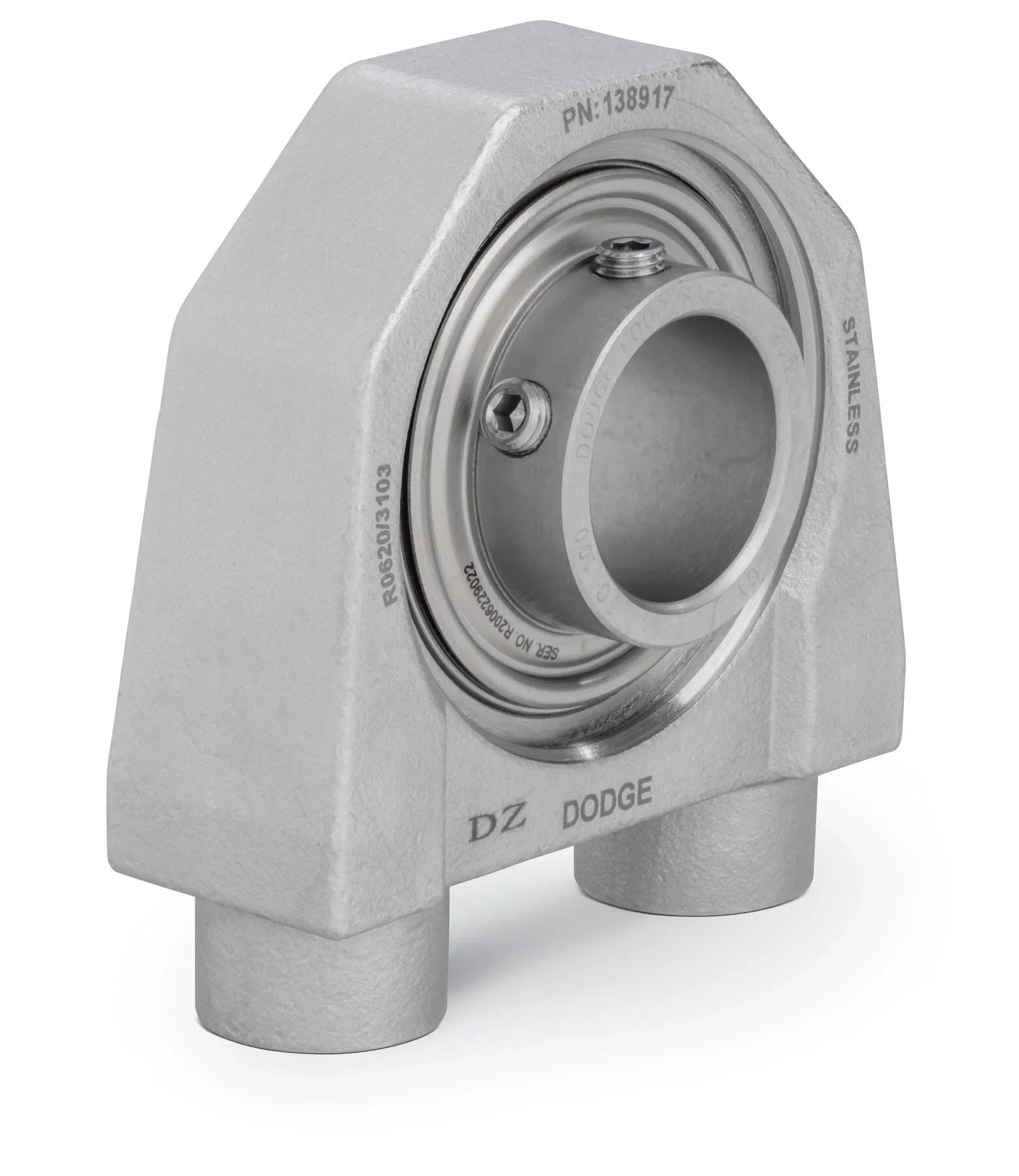

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138929 - Dodge - TBSO-SCFS-40M-SHFS
TBSO-SCFS-40M-SHFS
Technical Specifications
| Ball Bearing Series | 208 Series |
| Base to Center Height | 2.6300 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/tb_scfs_shfs_so_m_asmtab.prj&varset={PN=138929},{SERIES=208},{SS=40},{DESCRIPTION=TBSO-SCFS-40M-SHFS},{W=2.12},{A=49.3},{B=113.8},{C=25.4},{D=88.9},{J=114.3},{L=52.1},{M=66.8},{N=25.4},{R=M12},{S=30.2},{T=12.7}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 6232 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Tapped-Base Pillow Block |
| Insert Outer Diameter | 80.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 525 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Standoff Height | 12.7000 |
| Standoff Height (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
