138928 - Dodge - TBSO-SCFS-108-SHFS
Regular price
$370.98 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

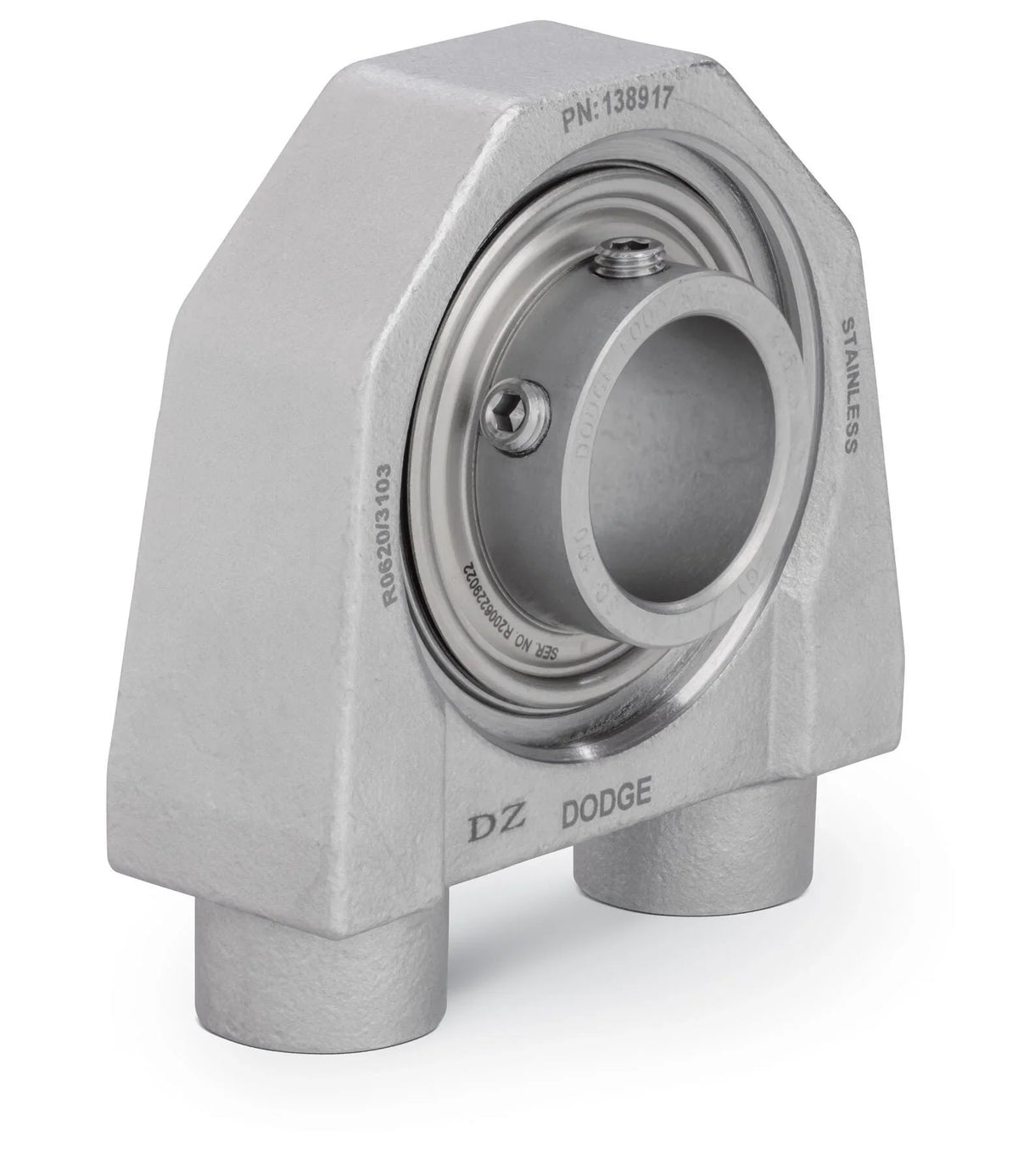

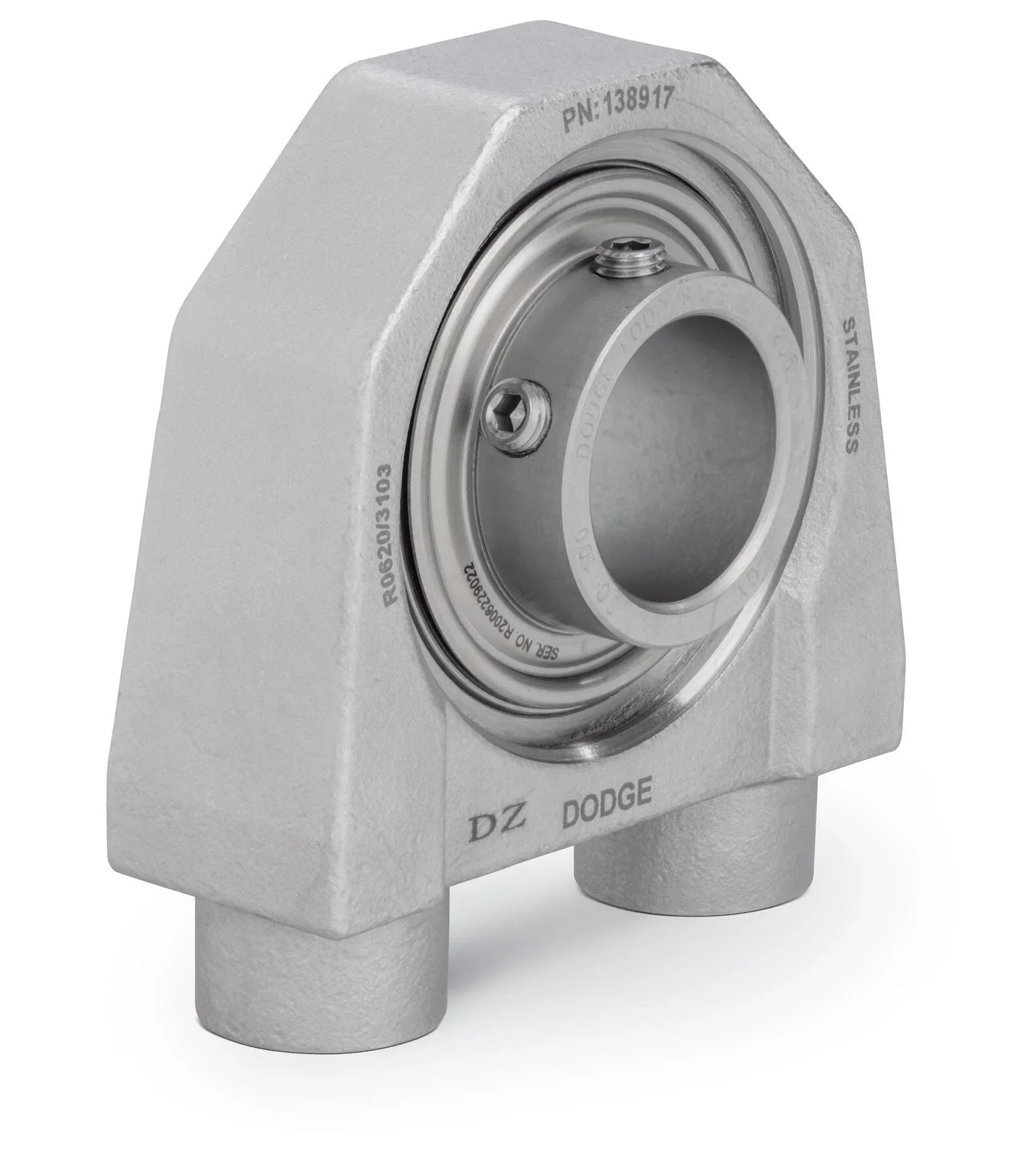

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138928 - Dodge - TBSO-SCFS-108-SHFS
TBSO-SCFS-108-SHFS
Technical Specifications
| Ball Bearing Series | 208 Series |
| Base to Center Height | 2.6300 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/tb_scfs_shfs_so_asmtab.prj&varset={SERIES=208},{SS=1-1/2},{W=4.67},{A=1.94},{B=4.48},{C=1.00},{D=3.50},{R=1/2-13},{J=4.50},{L=2.05},{M=2.63},{N=1.00},{S=1.19},{T=0.50}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Tapped-Base Pillow Block |
| Insert Outer Diameter | 80.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 525 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Standoff Height | 0.5000 |
| Standoff Height (Unit) | INCH |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
