138922 - Dodge - TBSO-SCFS-30M-SHFS
Regular price
$291.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

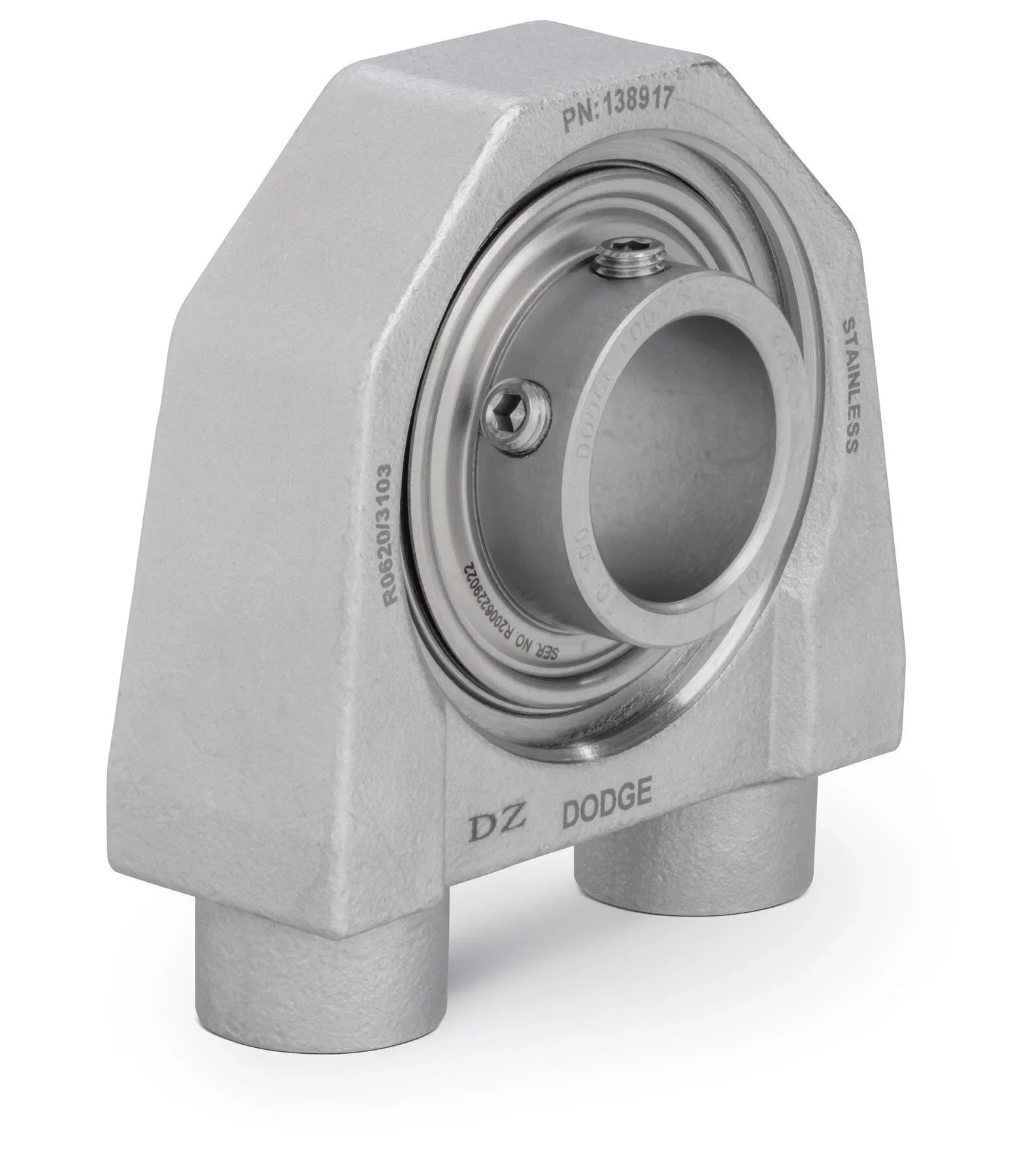

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
138922 - Dodge - TBSO-SCFS-30M-SHFS
TBSO-SCFS-30M-SHFS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 2.1850 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/tb_scfs_shfs_so_m_asmtab.prj&varset={PN=138922},{SERIES=206},{SS=30},{DESCRIPTION=TBSO-SCFS-30M-SHFS},{W=1.13},{A=38.6},{B=96.8},{C=20.6},{D=76.2},{J=94.5},{L=39.9},{M=55.6},{N=22.4},{R=M10},{S=23.9},{T=12.7}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3713 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Material | Stainless Steel |
| Housing Type | Tapped-Base Pillow Block |
| Insert Outer Diameter | 62.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Maximum Speed | 675 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Standoff Height | 12.7000 |
| Standoff Height (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
