138593 - Dodge - TP-E-207L-HT
Regular price
$891.26 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

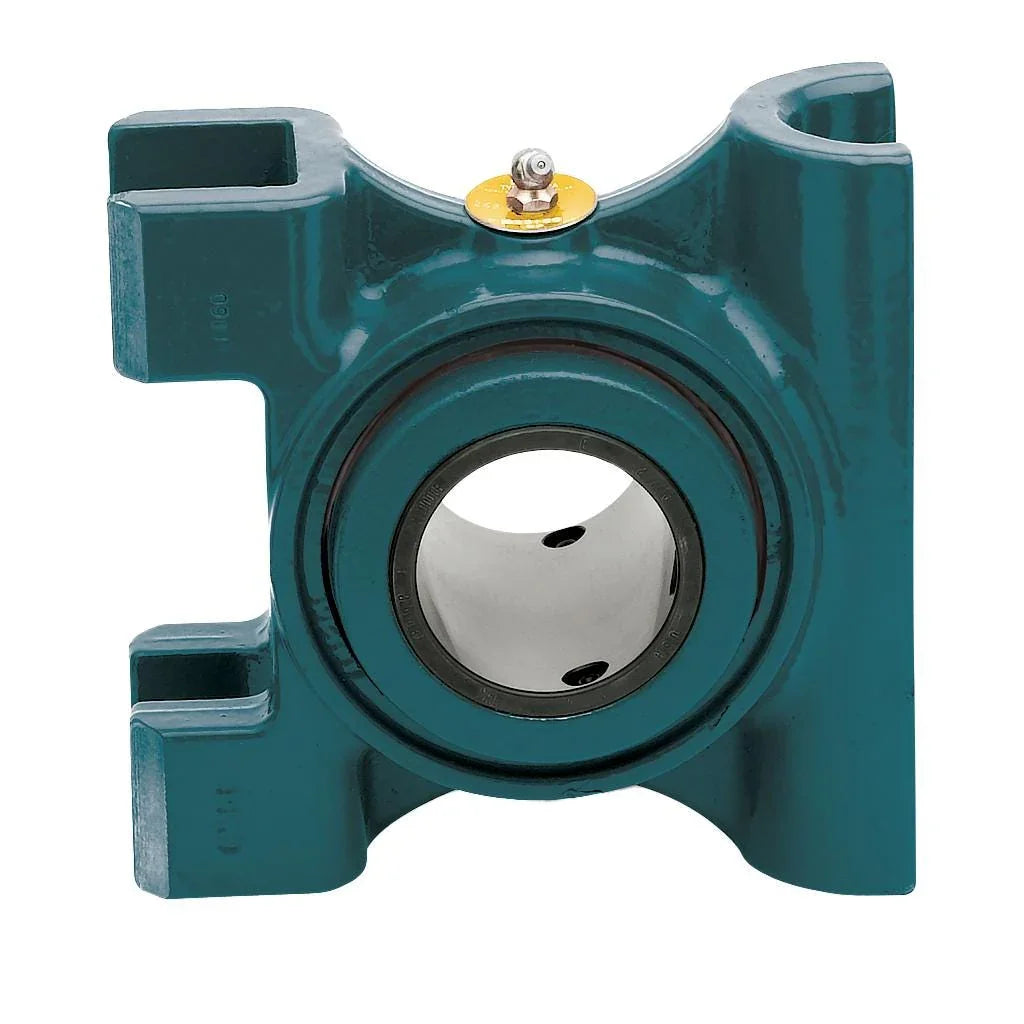

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TP-E-207L-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Type | Tapered Roller |
| Bore Length | 4 in |
| Dynamic Load Capacity | 10600 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Top-Angle Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2420 RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2.4375 in |
| Static Load Capacity | 54000 lbf |
| Suitable for High Temperature | Yes |
| Take-Up Frame Size | TP-30 |
