080504 - Dodge - P2B-GTEZ-100-SHCR-LL
Regular price
$263.49 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

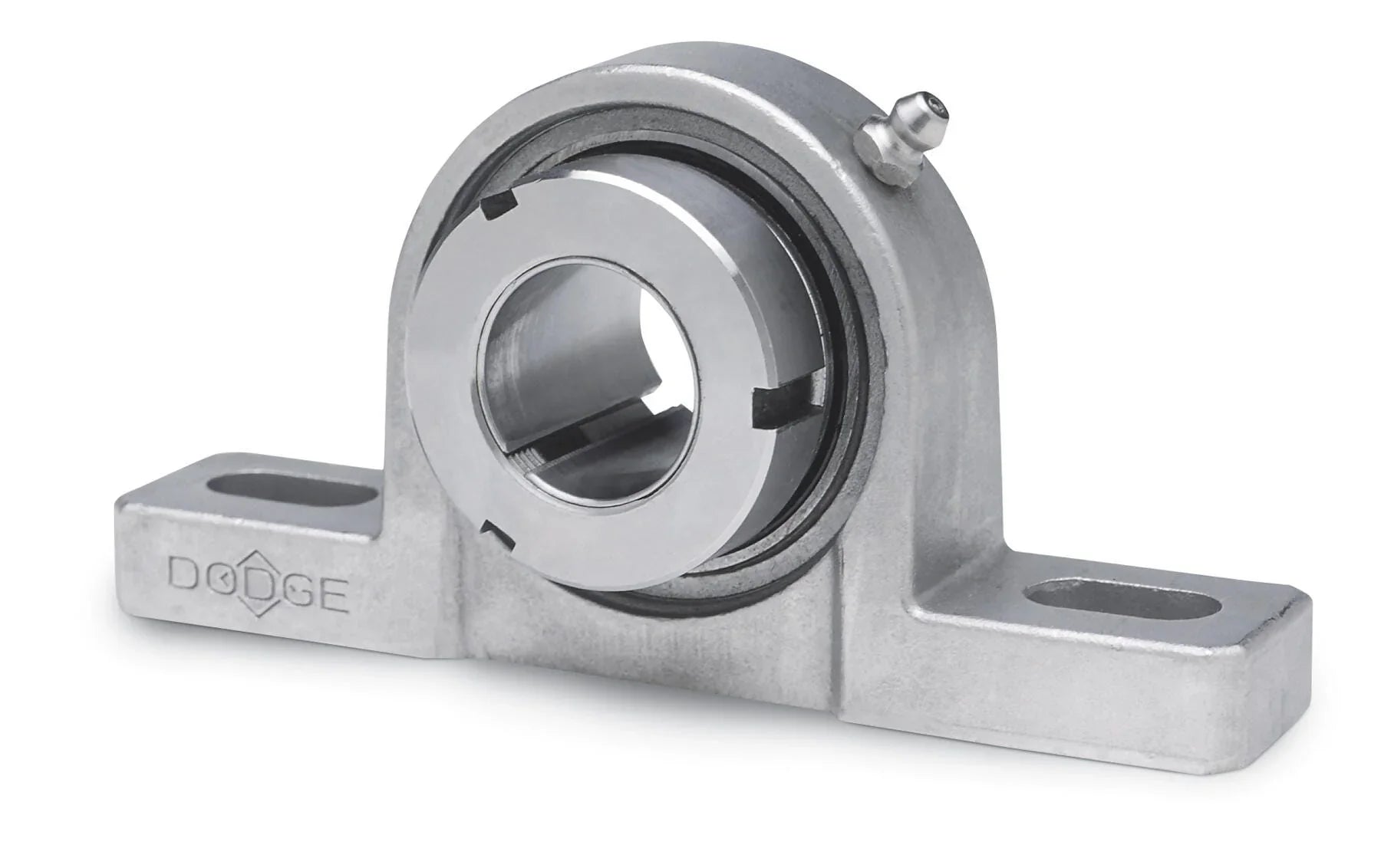

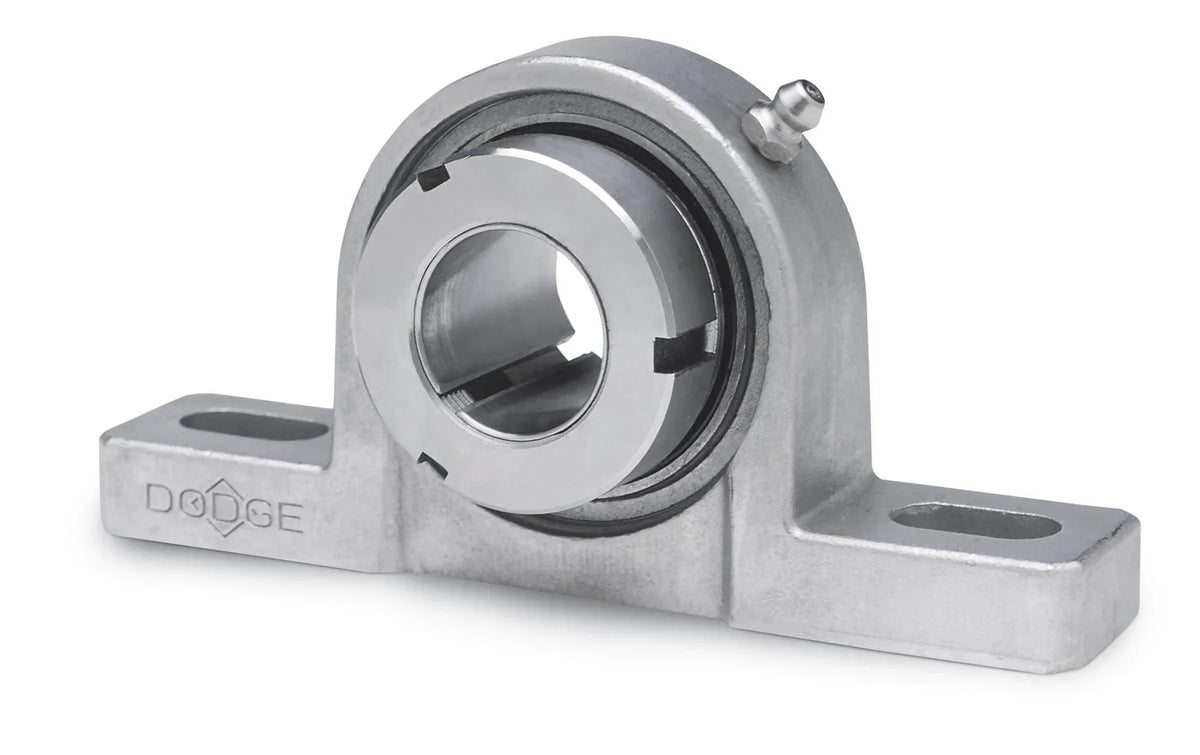

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-GTEZ-100-SHCR-LL
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 1.44 in |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 4.5 in |
| Bolt to Bolt (Min) | 3.68 in |
| Bore Length | 1.46 in |
| Dynamic Load Capacity | 3146 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 7200 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1 in |
| Standoff Housing | No |
| Static Load Capacity | 1769 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | Yes |
