079902 - Dodge - SP4B-IP-415LE MOD
Regular price
$4,596.24 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

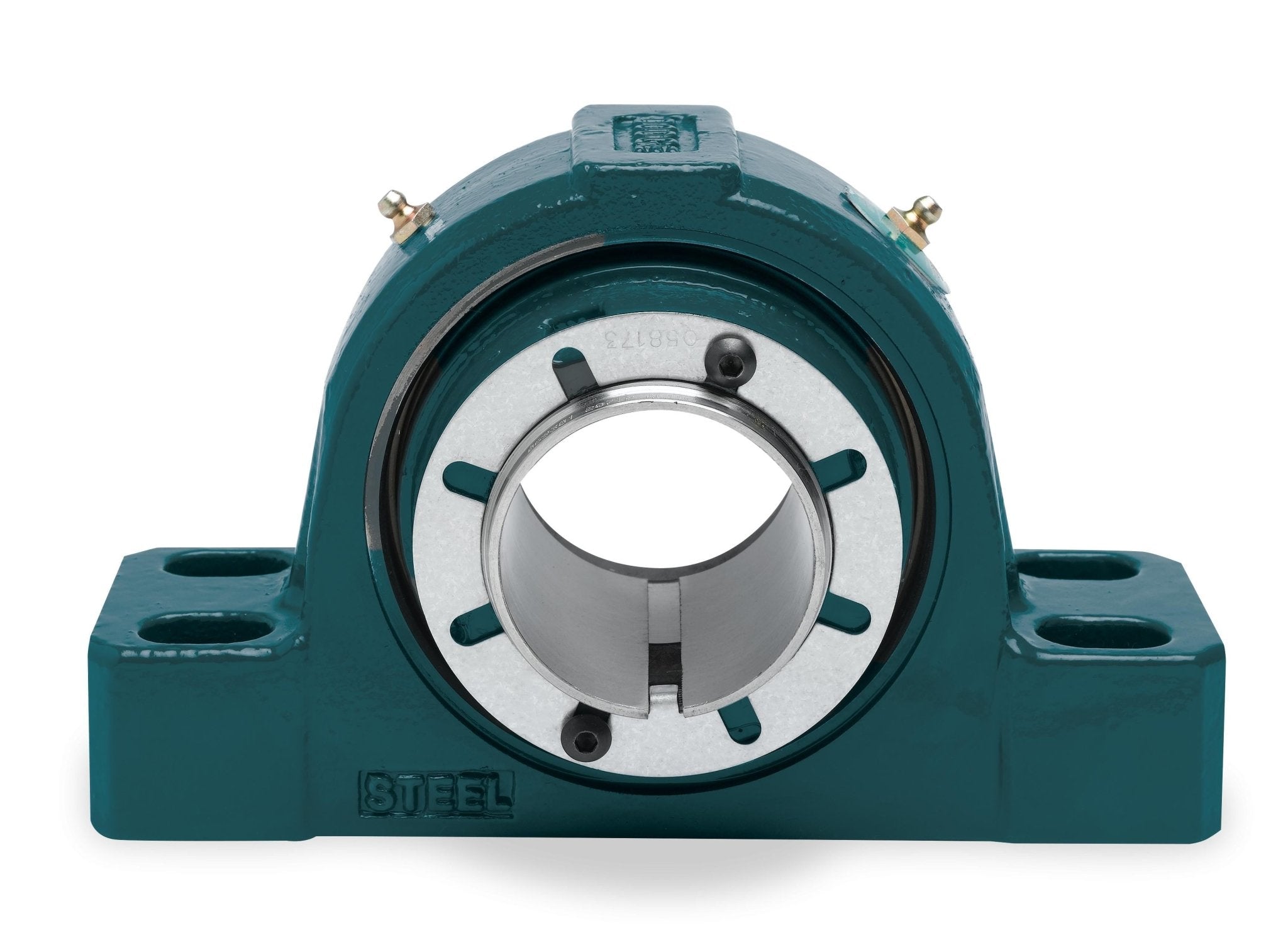

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
SP4B-IP-415LE MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 5.5 in |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.875 in |
| Bolt to Bolt (Max) | 16 in |
| Bolt to Bolt (Min) | 15 in |
| Bolt Width | 2.75 in |
| Bore Length | 5.98 in |
| Dynamic Load Capacity | 146000 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Grease Name | Aeroshell #7 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Steel |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1800 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 4.9375 in |
| Static Load Capacity | 196000 lbf |
| Take-Up Frame Size | HD-400 |
