079896 - Dodge - SP4B-IP-307LE MOD
Regular price
$1,877.70 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

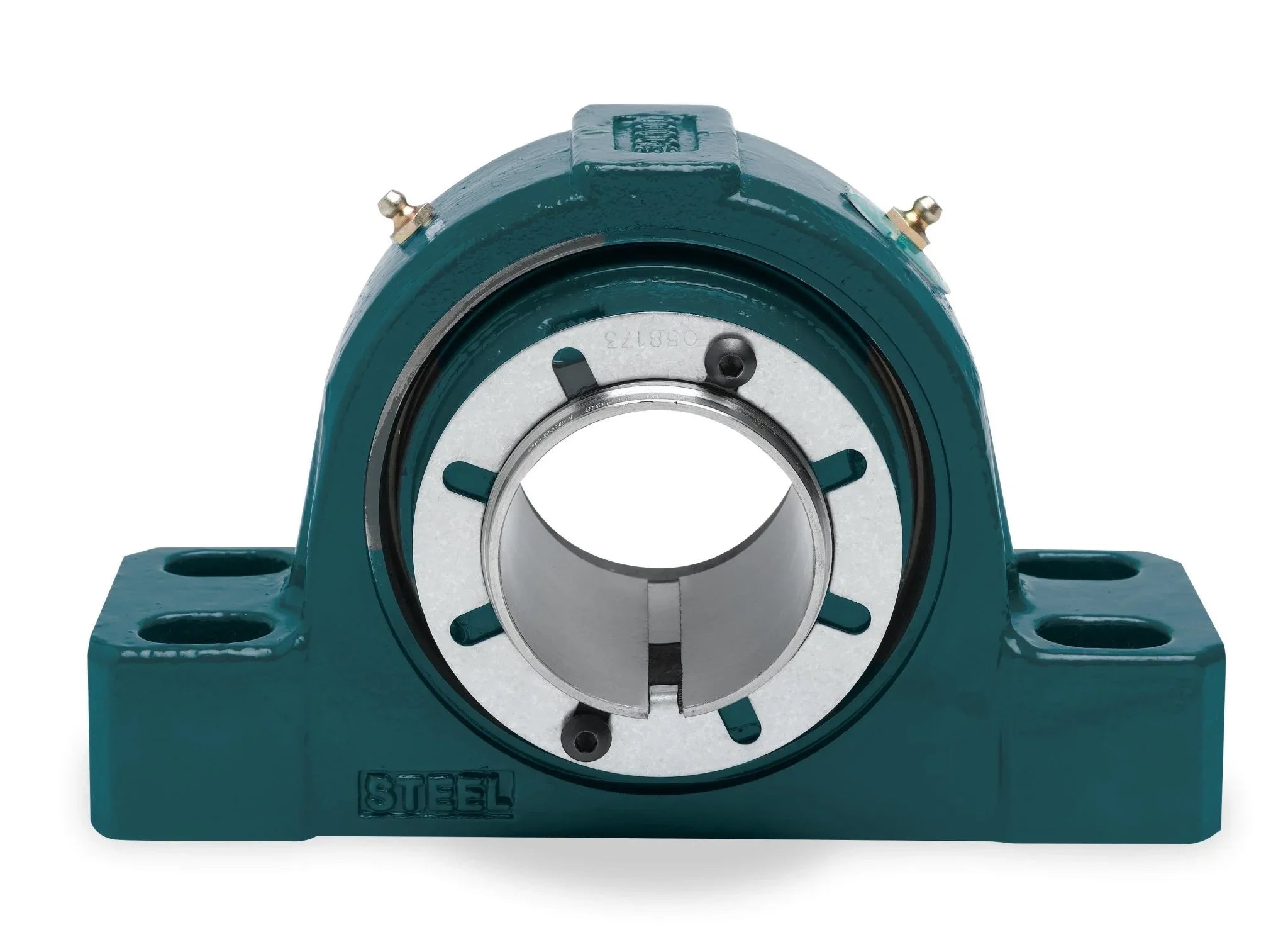

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
079896 - Dodge - SP4B-IP-307LE MOD
SP4B-IP-307LE MOD
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.1700 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | Aeroshell #7 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Steel |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-300 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
