079705 - Dodge - P2B-SCEZ-50M-PSS MOD
Regular price
$400.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

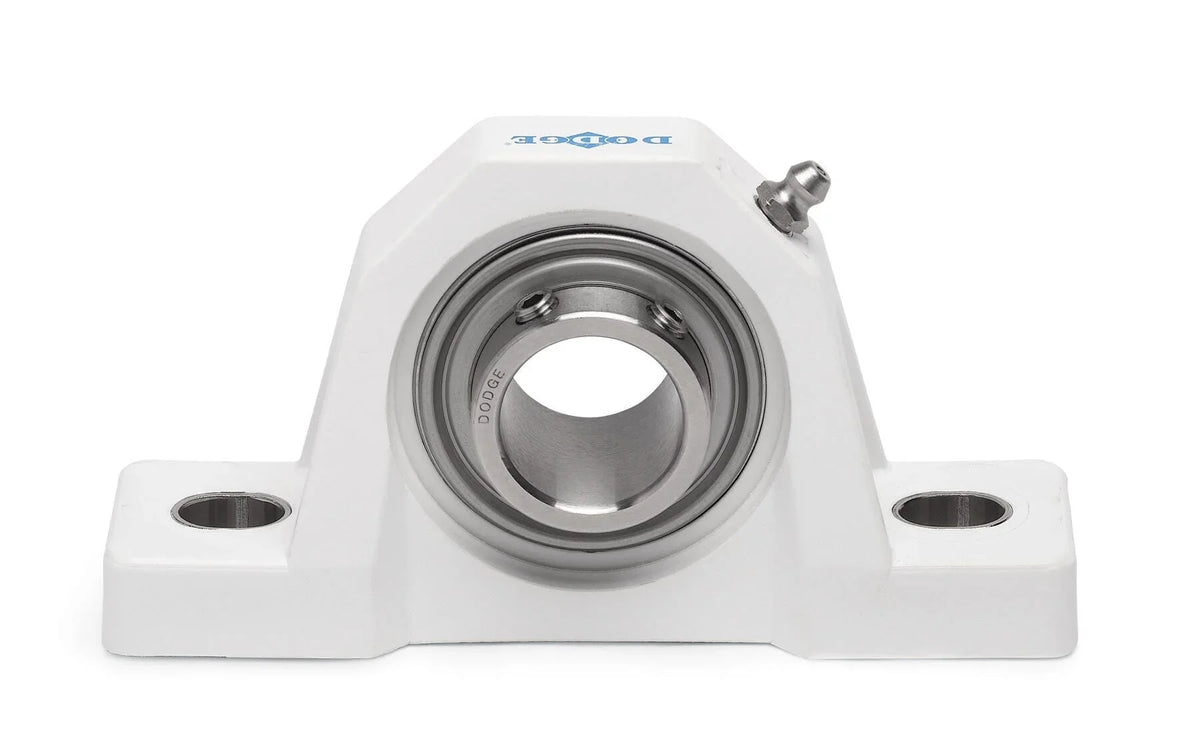

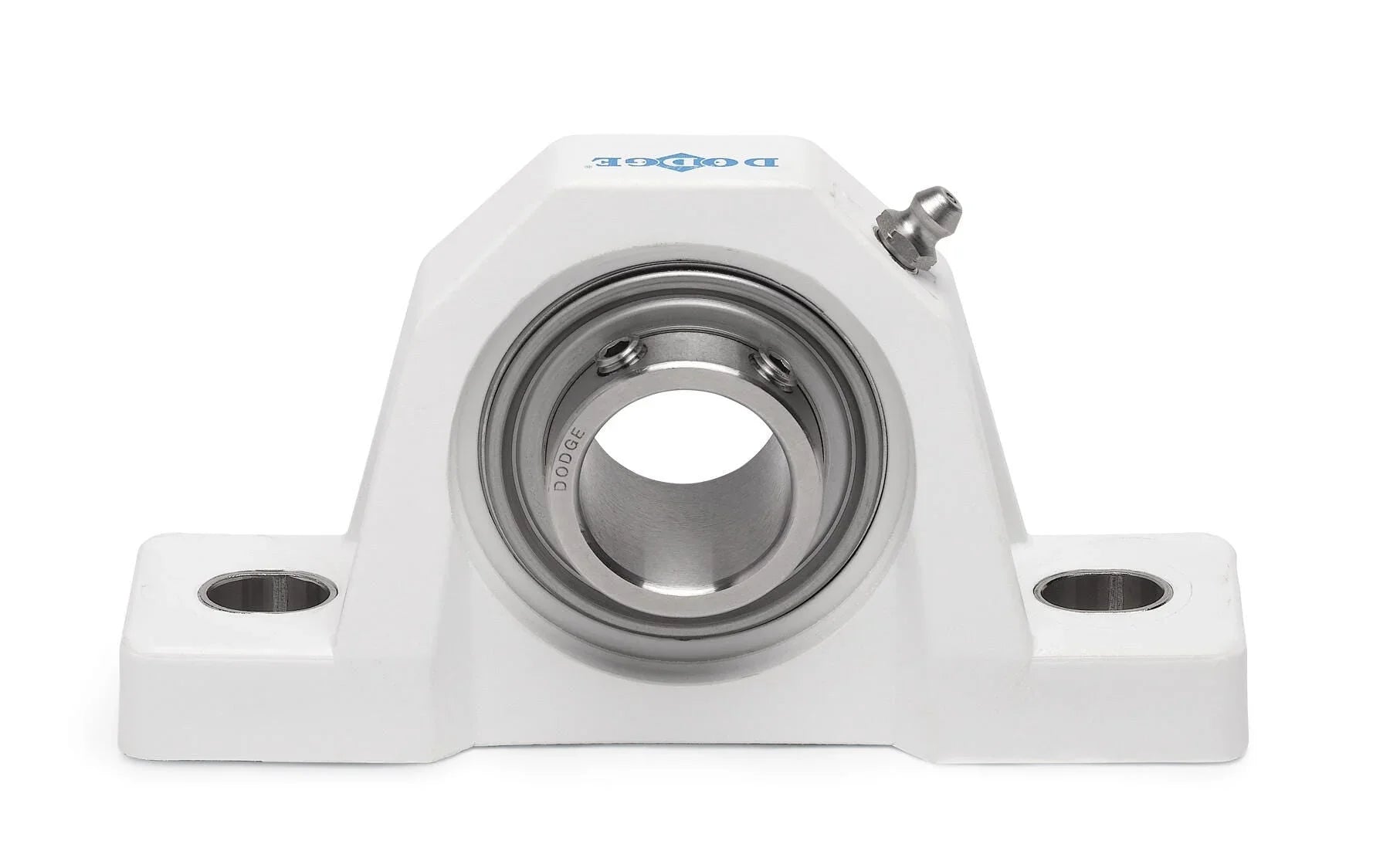

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-SCEZ-50M-PSS MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 210 Series |
| Base to Center Height | 57.15 mm |
| Bearing Type | Ball |
| Bolt Diameter | 15.875 mm |
| Bolt to Bolt (Max) | 169.672 mm |
| Bolt to Bolt (Min) | 152.4 mm |
| Bore Length | 49.276 mm |
| Dynamic Load Capacity | 29834 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 50 mm |
| Standoff Housing | No |
| Static Load Capacity | 23189 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | Yes |
| Take-Up Frame Size | LD-30,TS-300 |
