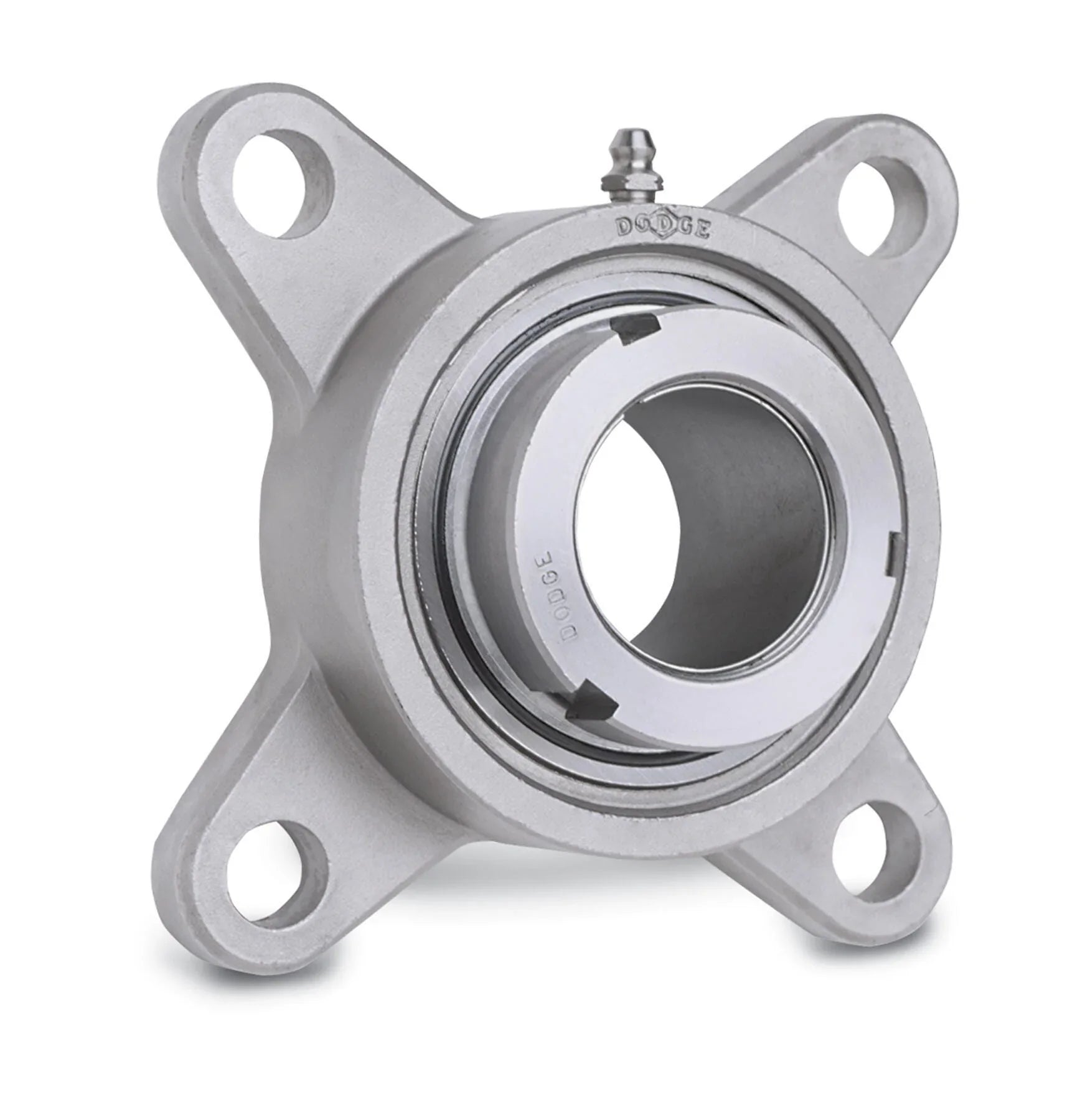

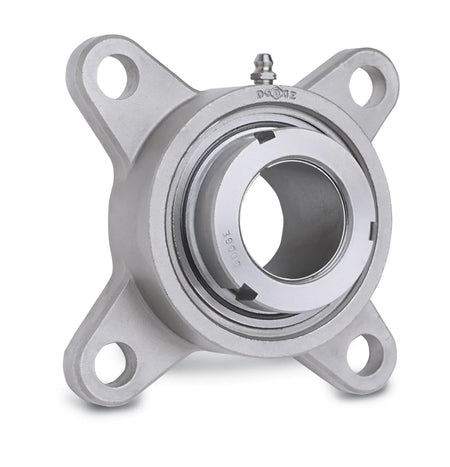

F4B-GTEZ-102-SHCR
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.24 in |
| Bolt to Bolt (Min) | 3.24 in |
| Bore Length | 1.61 in |
| Dynamic Load Capacity | 4368 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 6000 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.125 in |
| Standoff Housing | No |
| Static Load Capacity | 2538 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | Yes |
