068564 - Dodge - P2B-SCMEZ-111-SHCR MOD
Regular price
$358.19 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

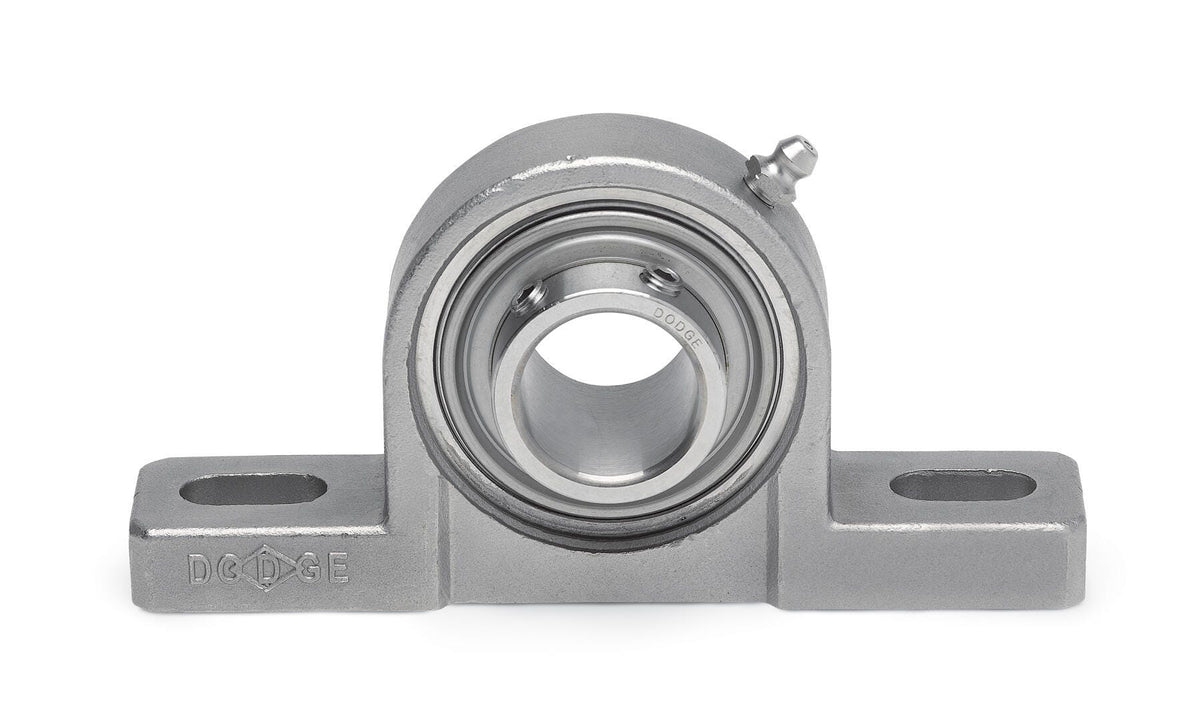

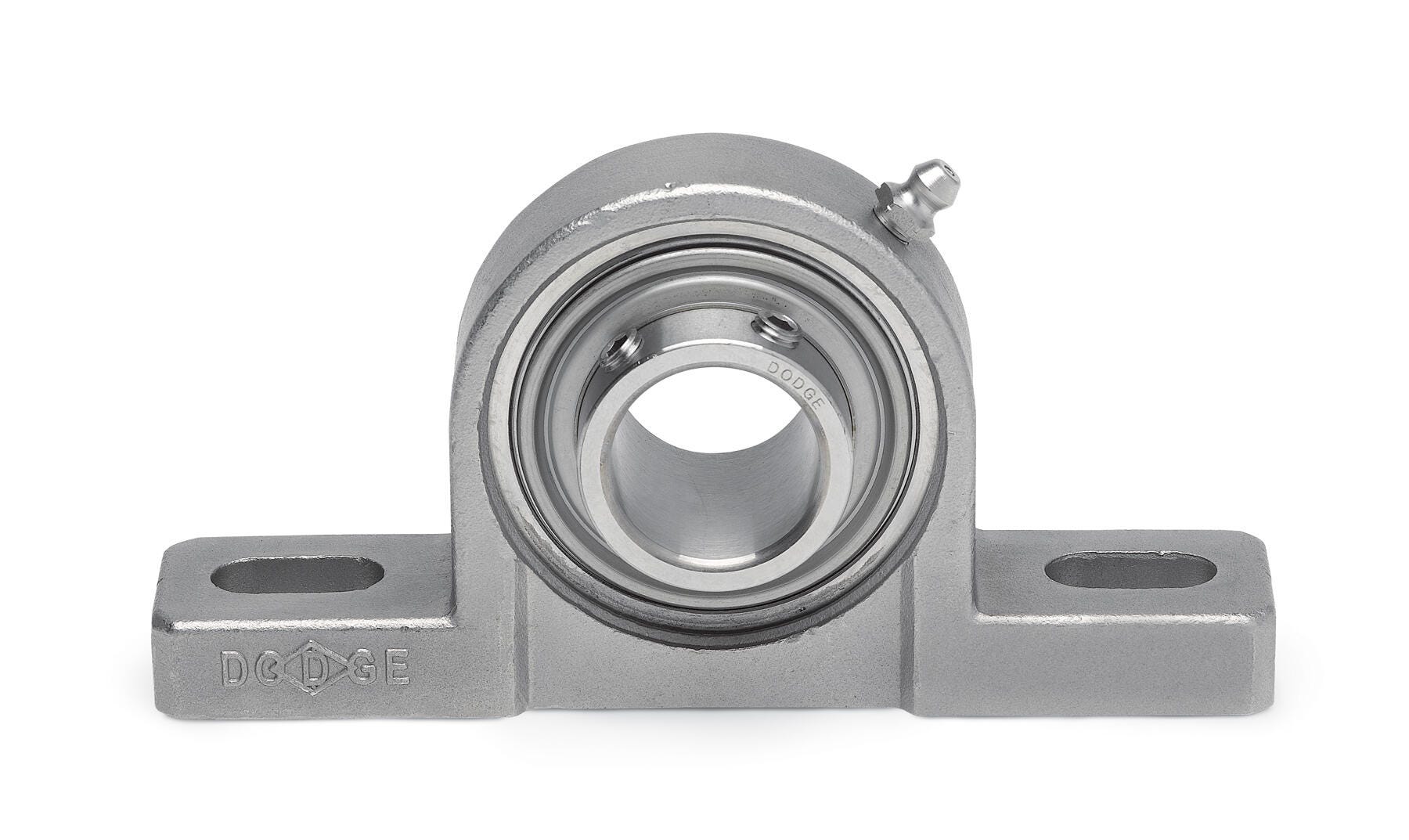

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-SCMEZ-111-SHCR MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 2.25 in |
| Bolt to Bolt (Max) | 6 in |
| Bolt to Bolt (Min) | 6 in |
| Bolt Width | 0.625 in |
| Bore Length | 1.94 in |
| Dynamic Load Capacity | 7891 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Maximum Speed | 2750 RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 1.6875 in |
| Static Load Capacity | 5213 lbf |
| Take-Up Frame Size | LD-30,TS-300 |
