058655 - Dodge - LF-SC-100 MOD
Regular price
$61.82 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

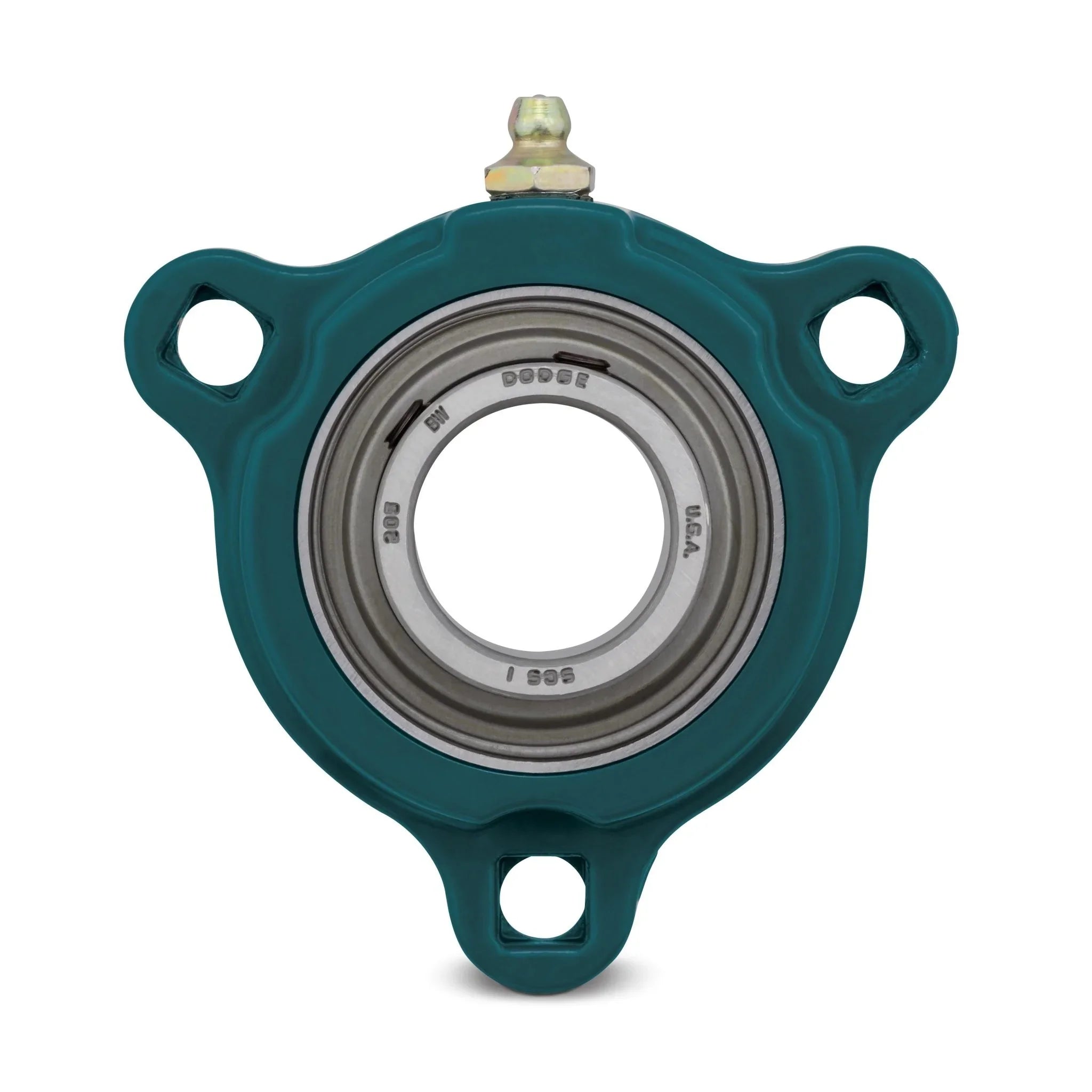

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
LF-SC-100 MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bolt Circle | 3 in |
| Bolt Diameter | 0.3438 in |
| Bolt to Bolt (Max) | 3 in |
| Bolt to Bolt (Min) | 3 in |
| Bore Length | 1.06 in |
| Dynamic Load Capacity | 3146 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | Unirex N2 |
| Housing Material | Alloy |
| Housing Type | Three-Bolt Flange (Light Duty) |
| Maximum Speed | 4500 RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 1 in |
| Standoff Housing | No |
| Static Load Capacity | 1769 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
