141643 - Dodge - P2B-DLH-30M-E-HT-DRY
Regular price
$405.29 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

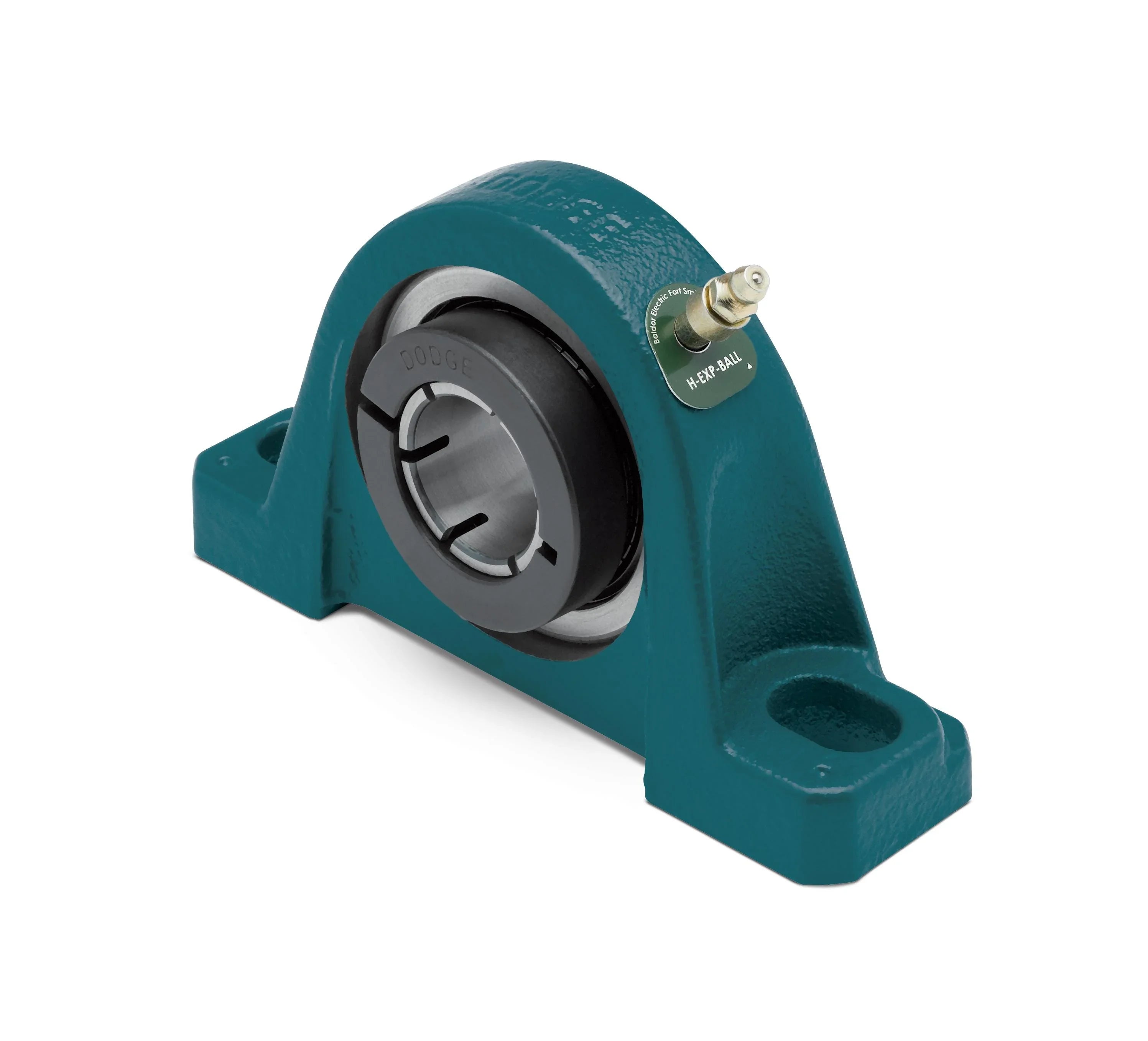

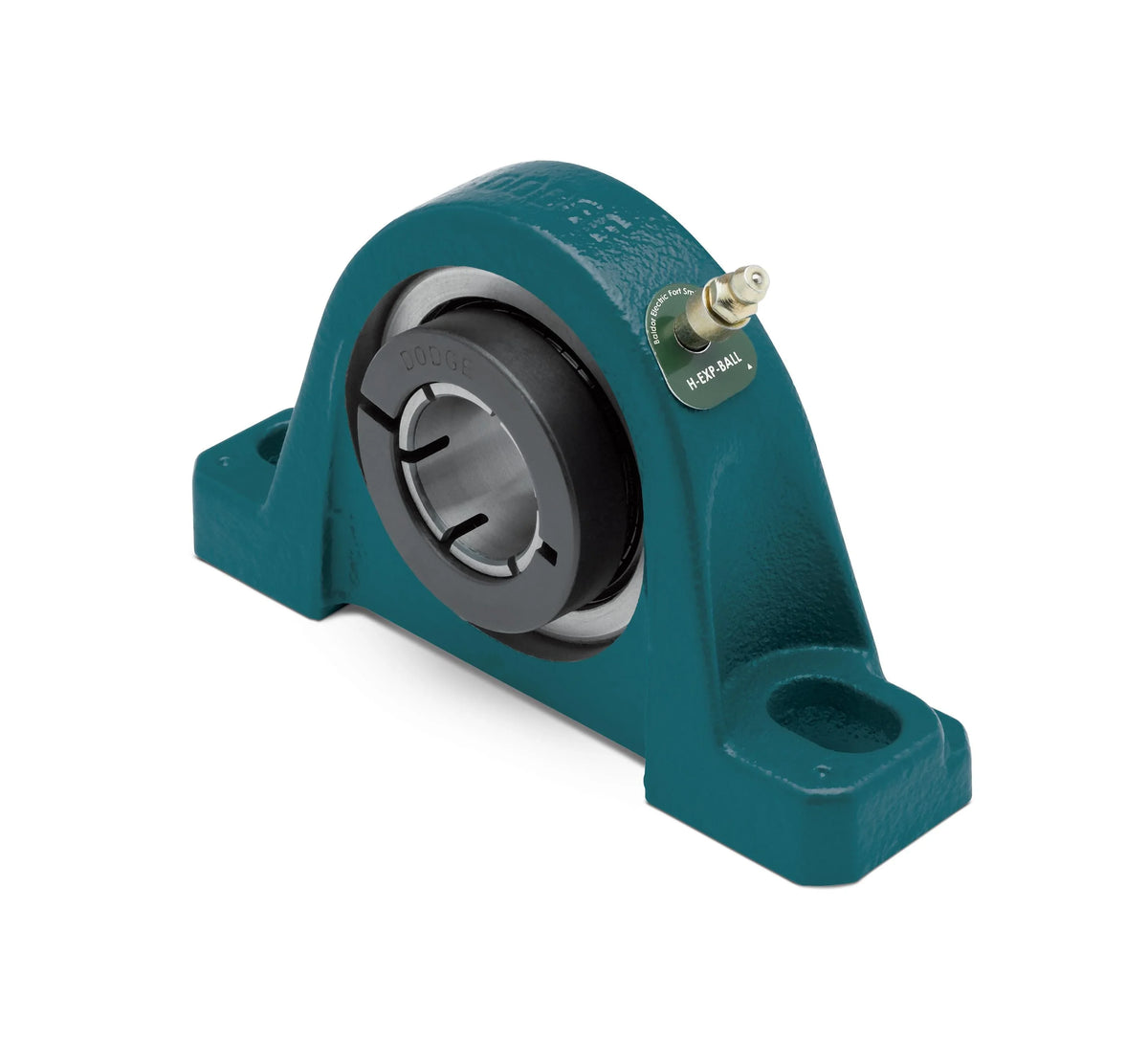

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-DLH-30M-E-HT-DRY
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 206 Series |
| Base to Center Height | 47.752 mm |
| Bearing Type | Ball |
| Bolt Diameter | 12.7 mm |
| Bolt to Bolt (Max) | 118.872 mm |
| Bolt to Bolt (Min) | 118.872 mm |
| Bore Length | 39.624 mm |
| Dynamic Load Capacity | 19430 N |
| Expansion Capability | Expansion (Float) |
| Greasable | Yes |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Maximum Speed | 5500 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 30 mm |
| Standoff Housing | No |
| Static Load Capacity | 11290 N |
| Suitable for High Temperature | Yes |
| Suitable For Washdown | No |
| Take-Up Frame Size | LD-20,TS-250 |
