141100 - Dodge - TB-SC-104S-NL MOD
Regular price
$282.62 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

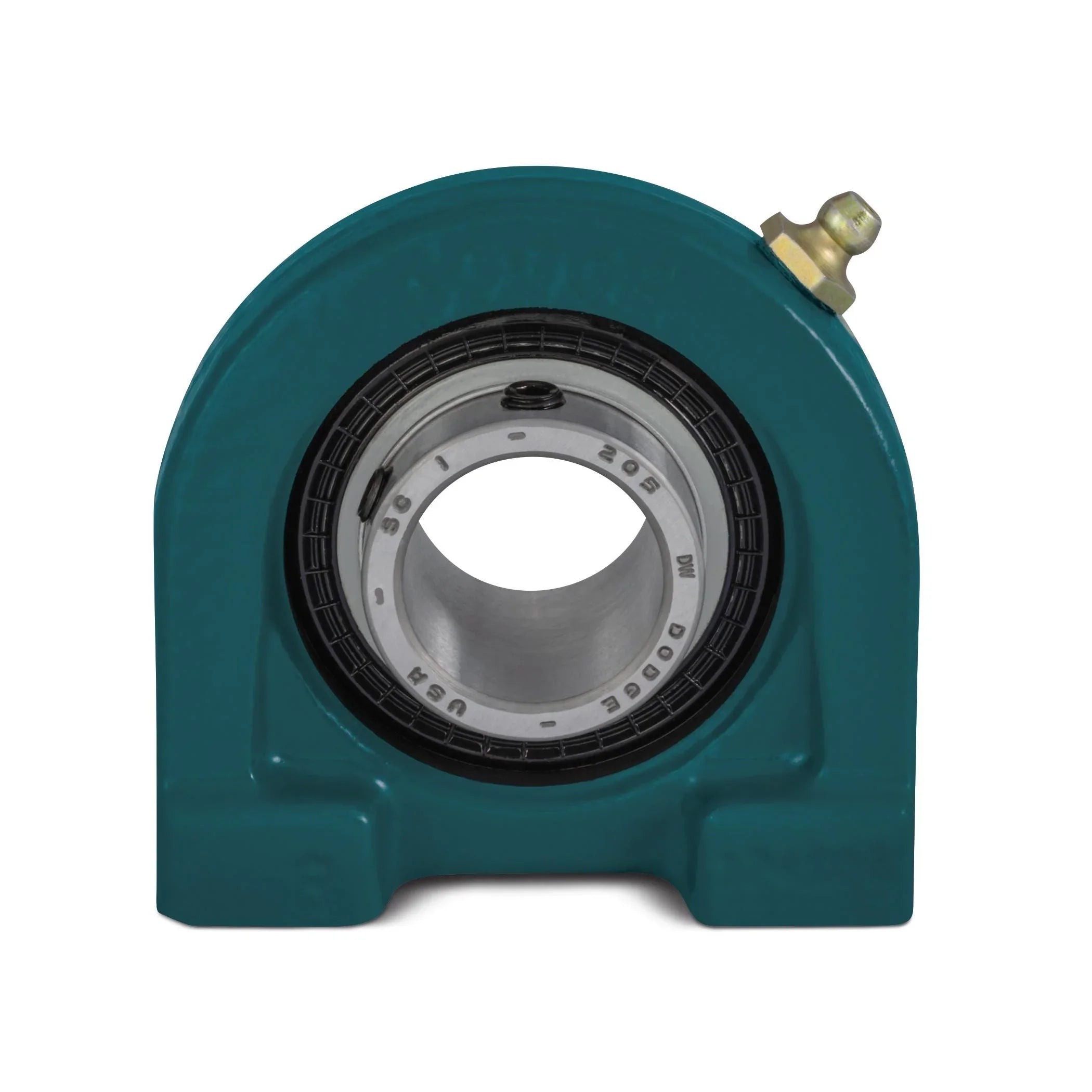

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TB-SC-104S-NL MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.69 in |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 in |
| Bolt to Bolt (Max) | 6 in |
| Bolt to Bolt (Min) | 6 in |
| Bore Length | 1.52 in |
| Dynamic Load Capacity | 4368 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | No |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 1.25 in |
| Standoff Housing | No |
| Static Load Capacity | 2538 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
