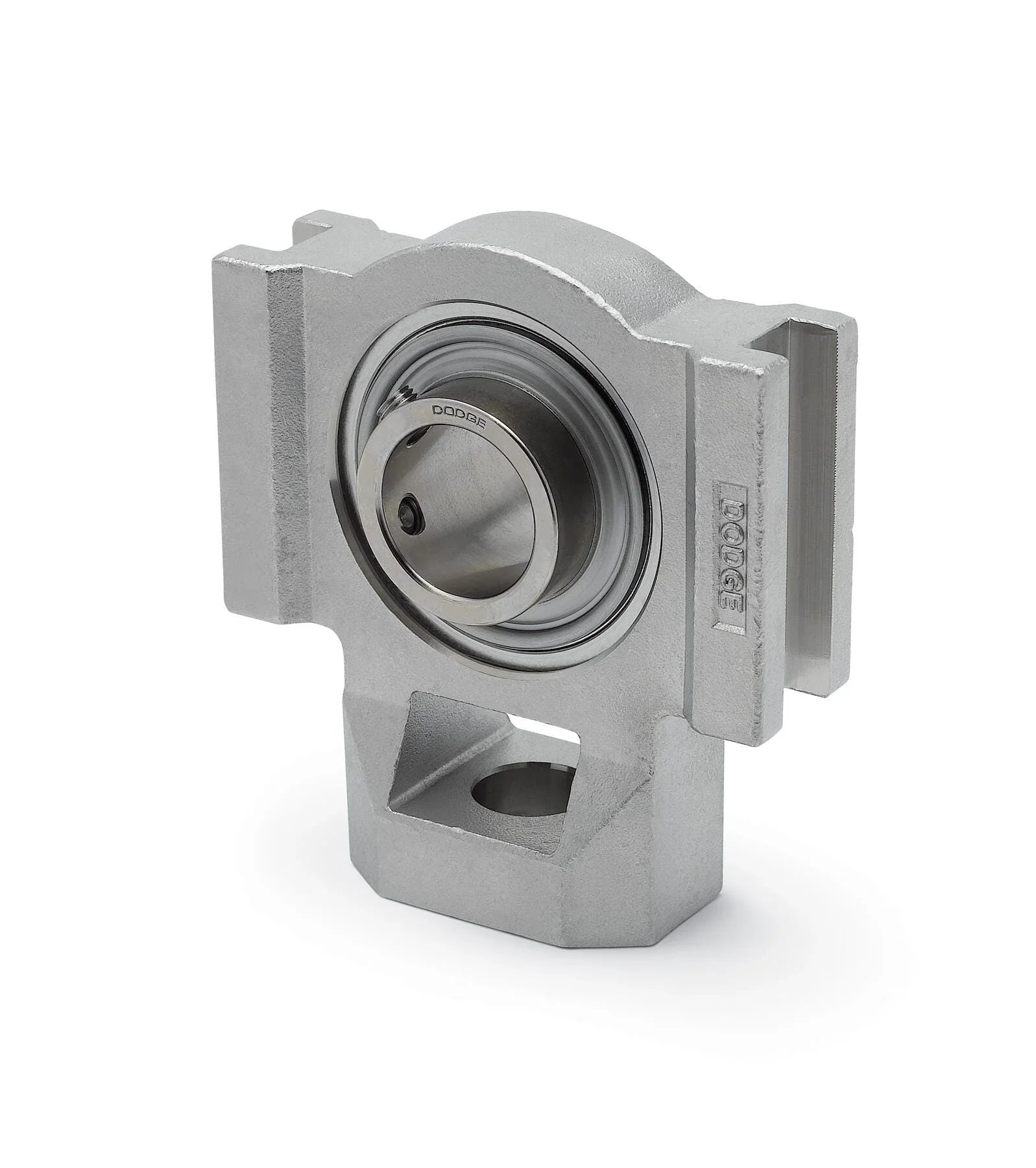

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137602 - Dodge - WSTU-SCFS-40M-SHFS
WSTU-SCFS-40M-SHFS
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/wstu_scfs_m_asmtab.prj&varset={SERIES=208},{SS=40},{PN=137602},{DESCRIPTION=WSTU-SCFS-40M-SHFS},{W=2.09},{FS=WS400},{BOD=80},{A=49.3},{B=143.0},{C=17.48},{D=82.6},{E=88.9},{F=25.4},{G=16.0},{H=19.1},{J=69.9},{K=49.3},{L=52.1},{M=101.98 / 101.22},{N=114.3},{R=19.1},{S=30.2},{T=41.1},{CAPS=4005},{CAPD=7332}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 80.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 525 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-400 |
