137599 - Dodge - WSTU-SCFS-35M-SHFS
Regular price
$346.14 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

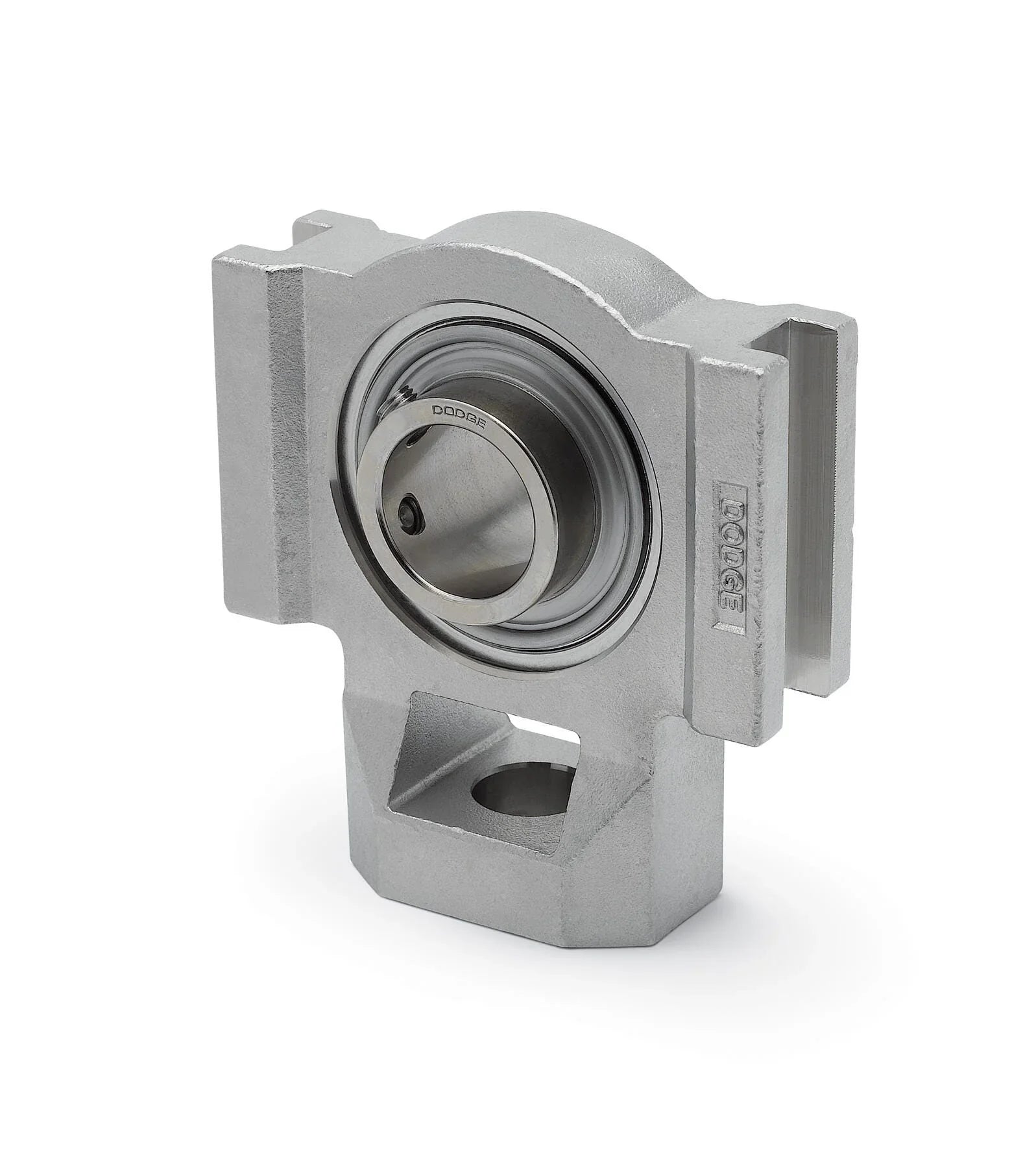

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137599 - Dodge - WSTU-SCFS-35M-SHFS
WSTU-SCFS-35M-SHFS
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/wstu_scfs_m_asmtab.prj&varset={SERIES=207},{SS=35},{PN=137599},{DESCRIPTION=WSTU-SCFS-35M-SHFS},{W=1.46},{FS=WS308},{BOD=72},{A=43.4},{B=126.7},{C=13.46},{D=57.4},{E=78.7},{F=19.1},{G=14.2},{H=16.5},{J=61.7},{K=35.3},{L=46.7},{M=89.92 / 89.15},{N=106.7},{R=17.0},{S=26.4},{T=41.1},{CAPS=3065},{CAPD=5759}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 72.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 575 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-308 |
