137586 - Dodge - WSTU-SCFS-014-SHFS
Regular price
$248.94 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

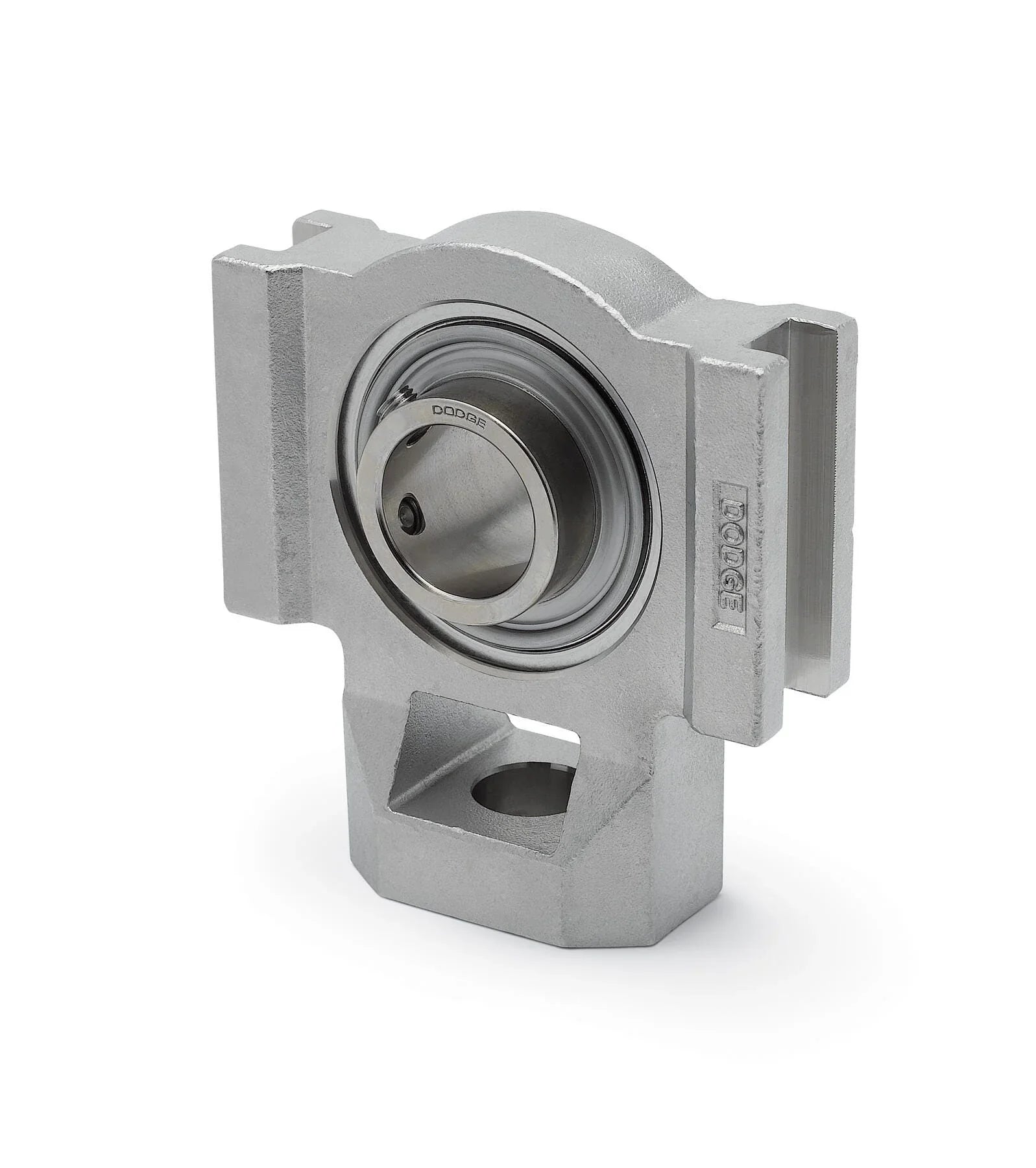

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137586 - Dodge - WSTU-SCFS-014-SHFS
WSTU-SCFS-014-SHFS
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/wstu_scfs_asmtab.prj&varset={SERIES=205},{SS=7/8},{PN=137586},{DESCRIPTION=WSTU-SCFS-014-SHFS},{W=2.03},{FS=WS300},{BOD=2.047200},{A=1.34},{B=3.97},{C=0.530},{D=2.20},{E=2.56},{F=5/8},{G=0.56},{H=0.65},{J=2.12},{K=1.15},{L=1.32},{M=3.025 / 2.995},{N=3.63},{R=0.56},{S=0.78},{T=1.38},{CAPS=1565},{CAPD=3146}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 52.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 825 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.8750 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-300 |
