137573 - Dodge - NSTU-SCFS-40M-SHFS
Regular price
$370.98 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

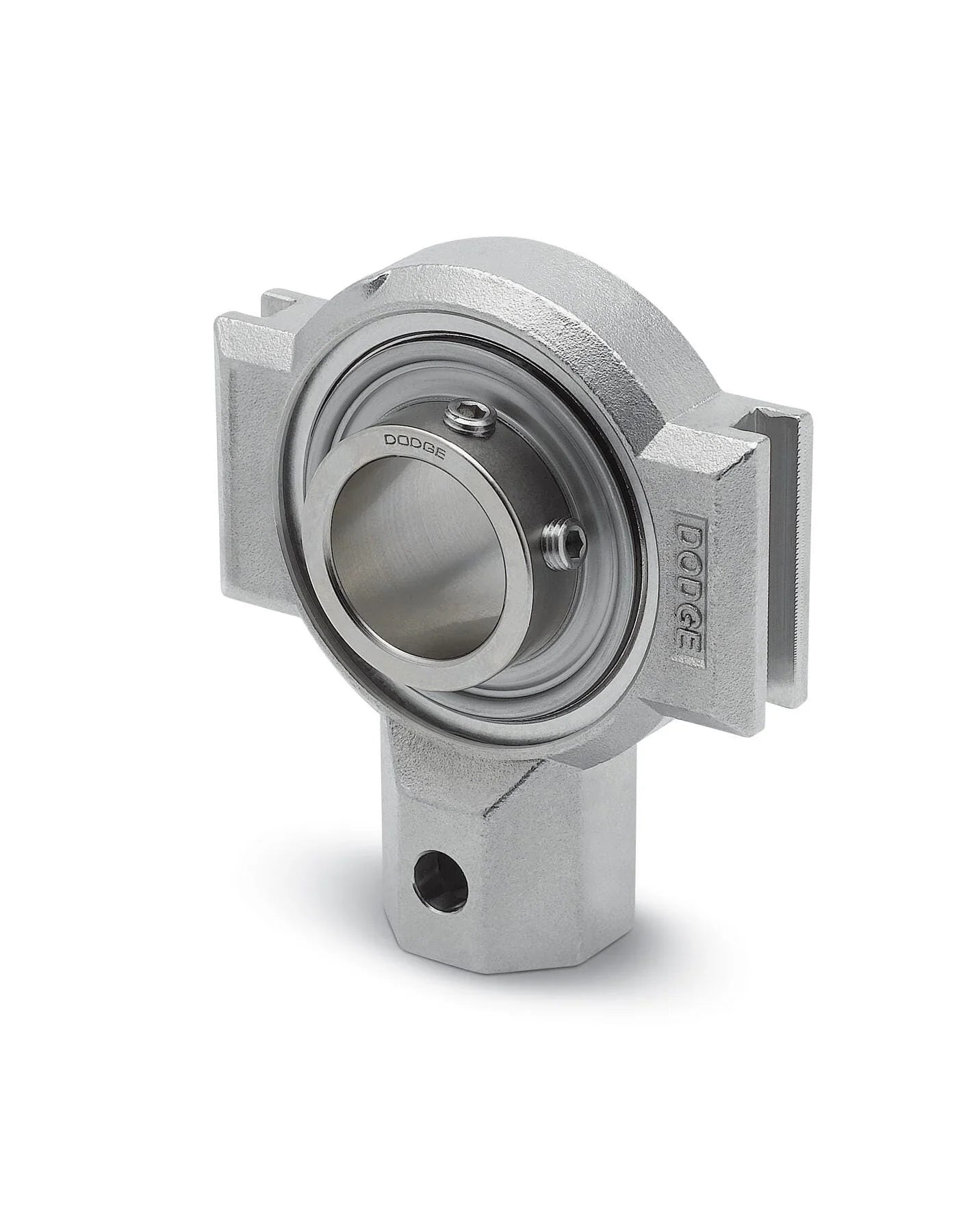

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137573 - Dodge - NSTU-SCFS-40M-SHFS
NSTU-SCFS-40M-SHFS
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/nstu_scfs_m_asmtab.prj&varset={SERIES=208},{SS=40},{PN=137573},{DESCRIPTION=NSTU-SCFS-40M-SHFS},{W=1.89},{FS=NS400},{BOD=80.000000},{A=49.3},{B=136.7},{C=8.33},{D=76.2},{E=82.6},{F=25.4},{G=16.8},{H=29.5},{J=38.1},{L=52.1},{M=101.98 / 101.22},{N=120.7},{P=9.7},{R=19.1},{S=30.2},{CAPS=4005},{CAPD=7332}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 80.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 525 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-400 |
