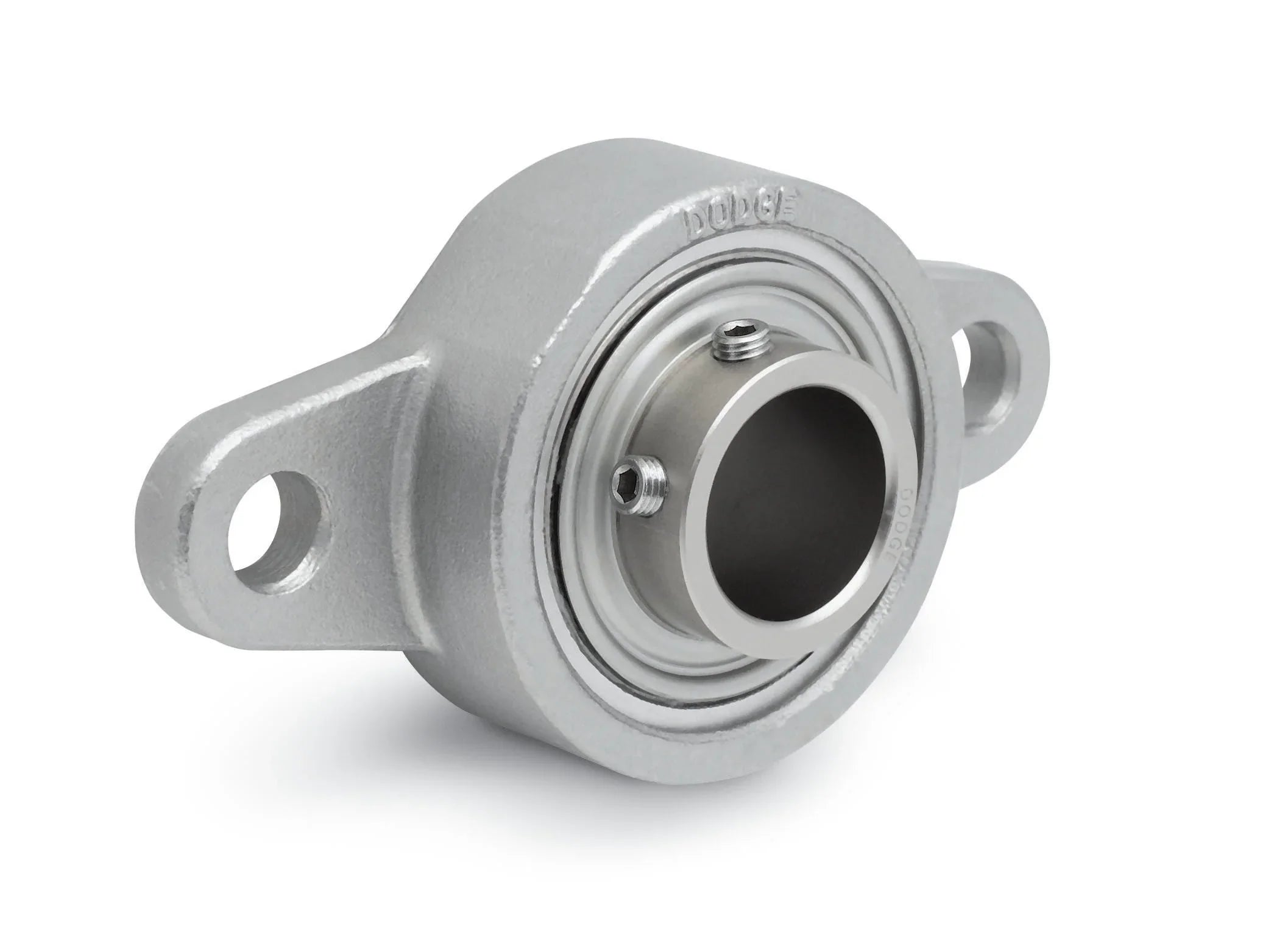

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137491 - Dodge - F2B-SCFS-115-SHFS
F2B-SCFS-115-SHFS
Technical Specifications
| Ball Bearing Series | 210 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.1800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.1900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/f2b_scfs_asmtab.prj&varset={SERIES=210},{SS=1-15/16},{BOD=3.543300},{A=1.94},{A1=1.940000},{B=7.48},{B1=7.480000},{C=1.98},{C1=1.980000},{D=6.18},{D1=6.180000},{F=5/8},{F1=0.625000},{H=0.48},{H1=0.480000},{J=0.63},{J1=0.630000},{L=2.43},{L1=2.430000},{M=4.31},{M1=4.310000},{CAPS=4450},{CAPD=7891},{SSALG='1-15/16','2'}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 90.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 450 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
