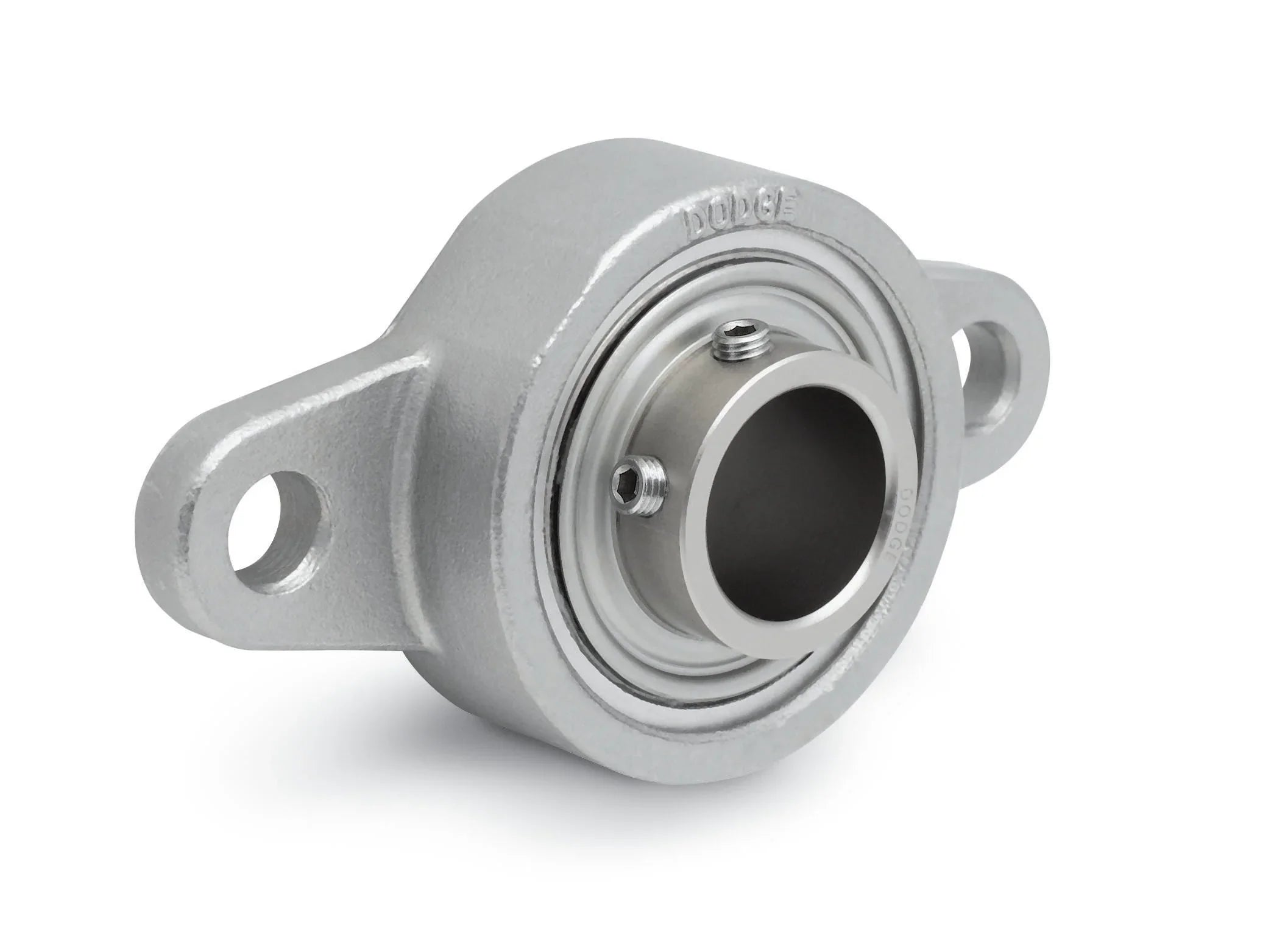

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137476 - Dodge - F2B-SCFS-103-SHFS
F2B-SCFS-103-SHFS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.5900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/f2b_scfs_asmtab.prj&varset={SERIES=206},{SS=1-3/16},{BOD=2.440900},{A=1.52},{A1=1.520000},{B=5.51},{B1=5.510000},{C=1.59},{C1=1.590000},{D=4.59},{D1=4.590000},{F=3/8},{F1=0.375000},{H=0.35},{H1=0.350000},{J=0.46},{J1=0.460000},{L=1.57},{L1=1.570000},{M=3.13},{M1=3.130000},{CAPS=2250},{CAPD=4368},{SSALG='1-1/8','1-3/16','1-1/4'}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 62.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 675 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
