137471 - Dodge - F2B-SCFS-015-SHFS
Regular price
$248.94 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

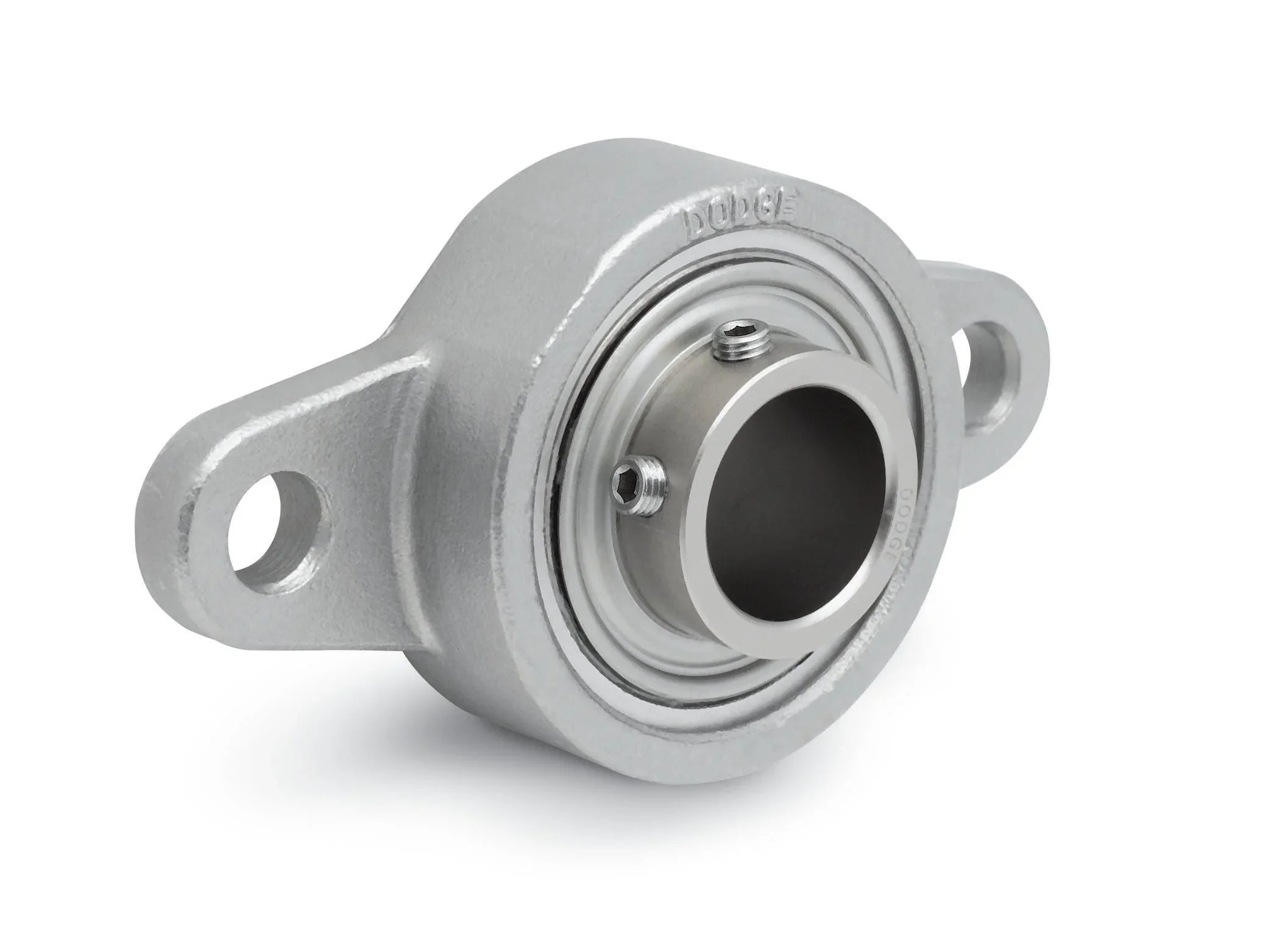

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137471 - Dodge - F2B-SCFS-015-SHFS
F2B-SCFS-015-SHFS
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.8900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.8900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/f2b_scfs_asmtab.prj&varset={SERIES=205},{SS=15/16},{BOD=2.047200},{A=1.34},{A1=1.340000},{B=4.89},{B1=4.890000},{C=1.37},{C1=1.370000},{D=3.89},{D1=3.890000},{F=3/8},{F1=0.375000},{H=0.35},{H1=0.350000},{J=0.39},{J1=0.390000},{L=1.32},{L1=1.320000},{M=2.63},{M1=2.630000},{CAPS=1565},{CAPD=3146},{SSALG='7/8','15/16','1'}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 52.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 825 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
