137465 - Dodge - F2B-SCFS-008L-SHFS
Regular price
$229.50 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

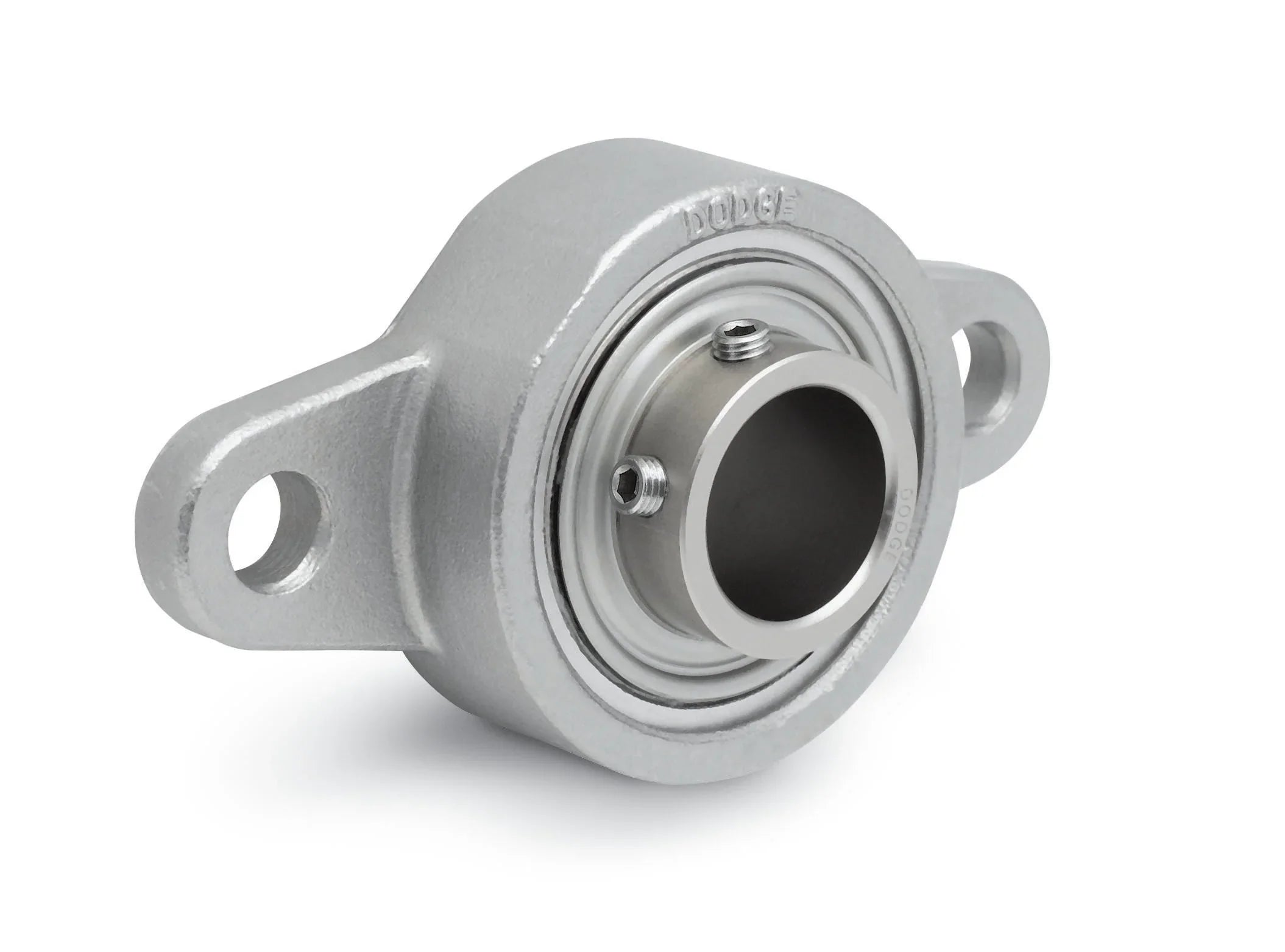

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137465 - Dodge - F2B-SCFS-008L-SHFS
F2B-SCFS-008L-SHFS
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/f2b_scfs_asmtab.prj&varset={SERIES=204},{SS=1/2},{BOD=1.850400},{A=1.23},{A1=1.230000},{B=4.38},{B1=4.380000},{C=1.25},{C1=1.250000},{D=3.54},{D1=3.540000},{F=3/8},{F1=0.375000},{H=0.32},{H1=0.320000},{J=0.36},{J1=0.360000},{L=1.12},{L1=1.120000},{M=2.38},{M1=2.380000},{CAPS=1390},{CAPD=2899},{SSALG='1/2','5/8', '3/4'}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 47.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 950 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
