137414 - Dodge - P2B-SCFS-35M-SHFS
Regular price
$346.14 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

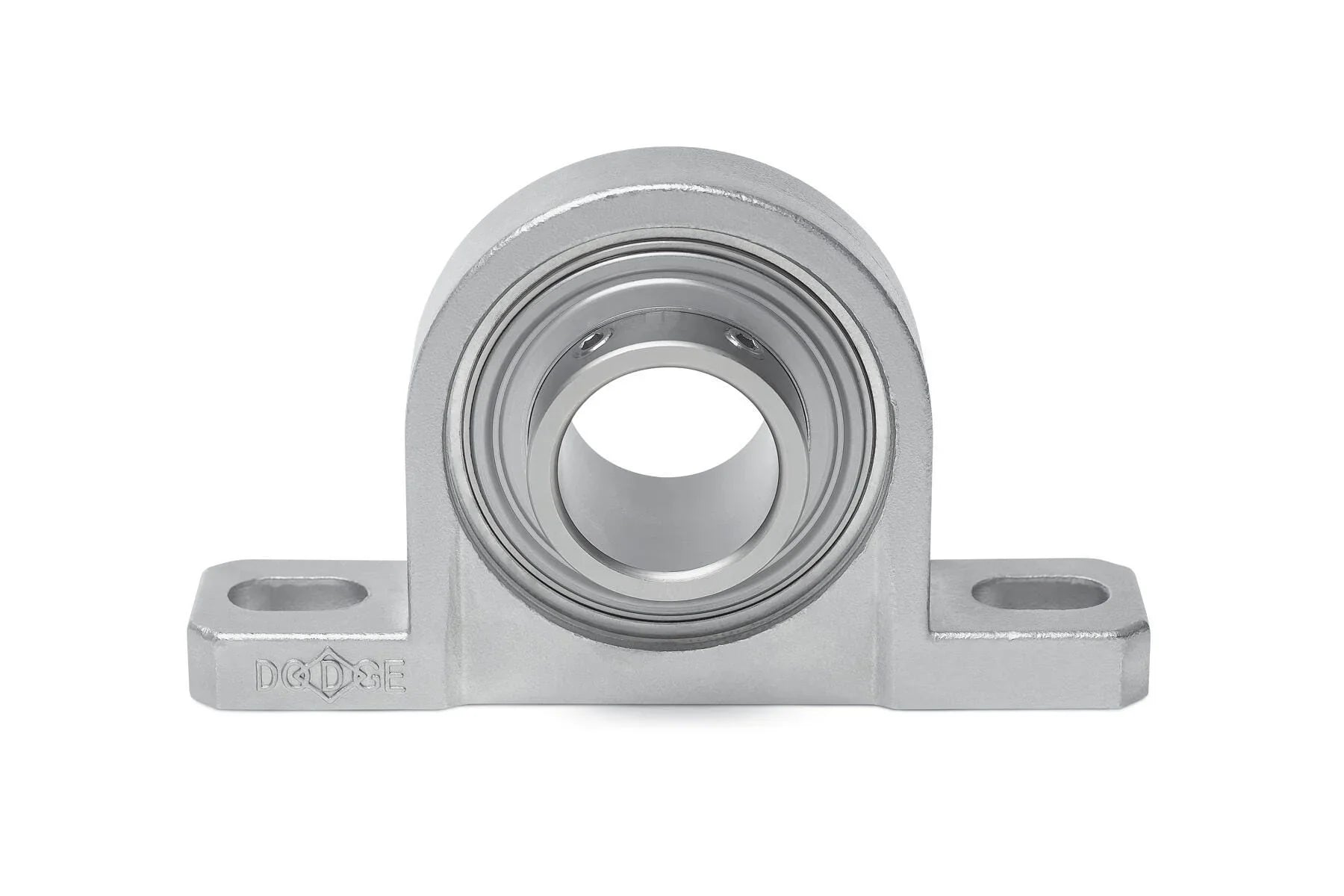

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
137414 - Dodge - P2B-SCFS-35M-SHFS
P2B-SCFS-35M-SHFS
Technical Specifications
| Ball Bearing Series | 207 Series |
| Base to Center Height | 1.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.6800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/food_safe/p2b_scfs_m_asmtab.prj&varset={SERIES=207},{SS=35},{PN=137414},{DESCRIPTION=P2B-SCFS-35M-SHFS},{BW=19.1000},{BOD=72.00000},{A=43.4},{B=165.1},{C=35.1},{DMIN=118.9},{DMAX=138.2},{F=M12},{G=23.9},{H=14.2},{J=92.2},{L=46.7},{M=47.8},{R=17.0},{S=26.4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Stainless Steel |
| Insert Outer Diameter | 72.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 575 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
