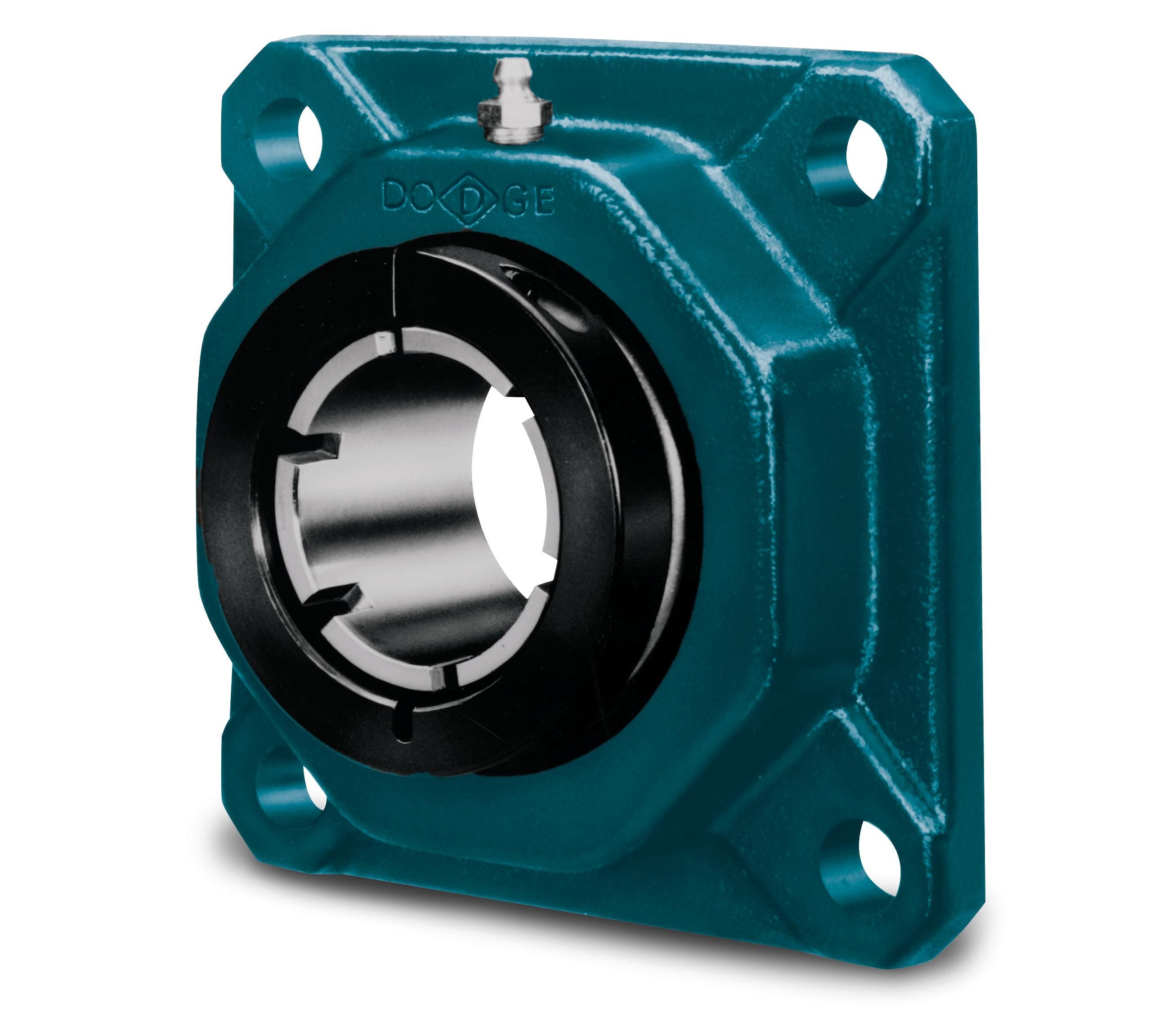

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
139504 - Dodge - F4B-DLMED-107
F4B-DLMED-107
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
