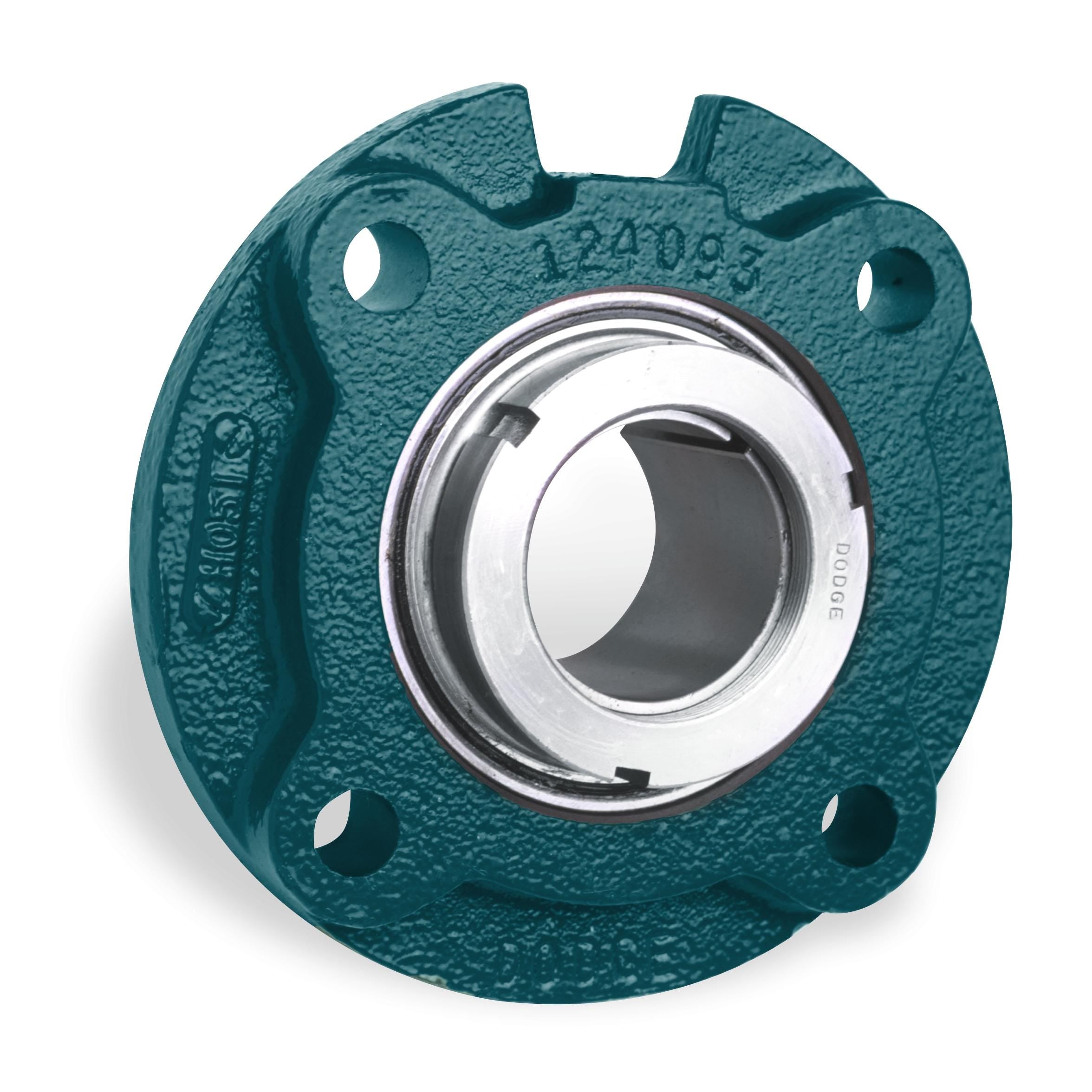

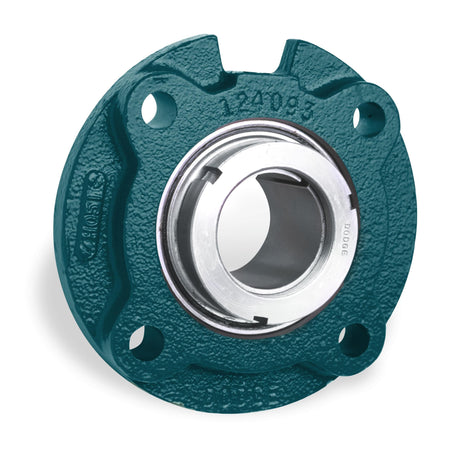

139503 - Dodge - FC-GTMED-200
FC-GTMED-200
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt Circle | 5.3800 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.9300 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4300 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.6300 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.5000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Quadruple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
