034765 - Dodge - F4B-PSEZ-50M-P
Regular price
$229.39 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

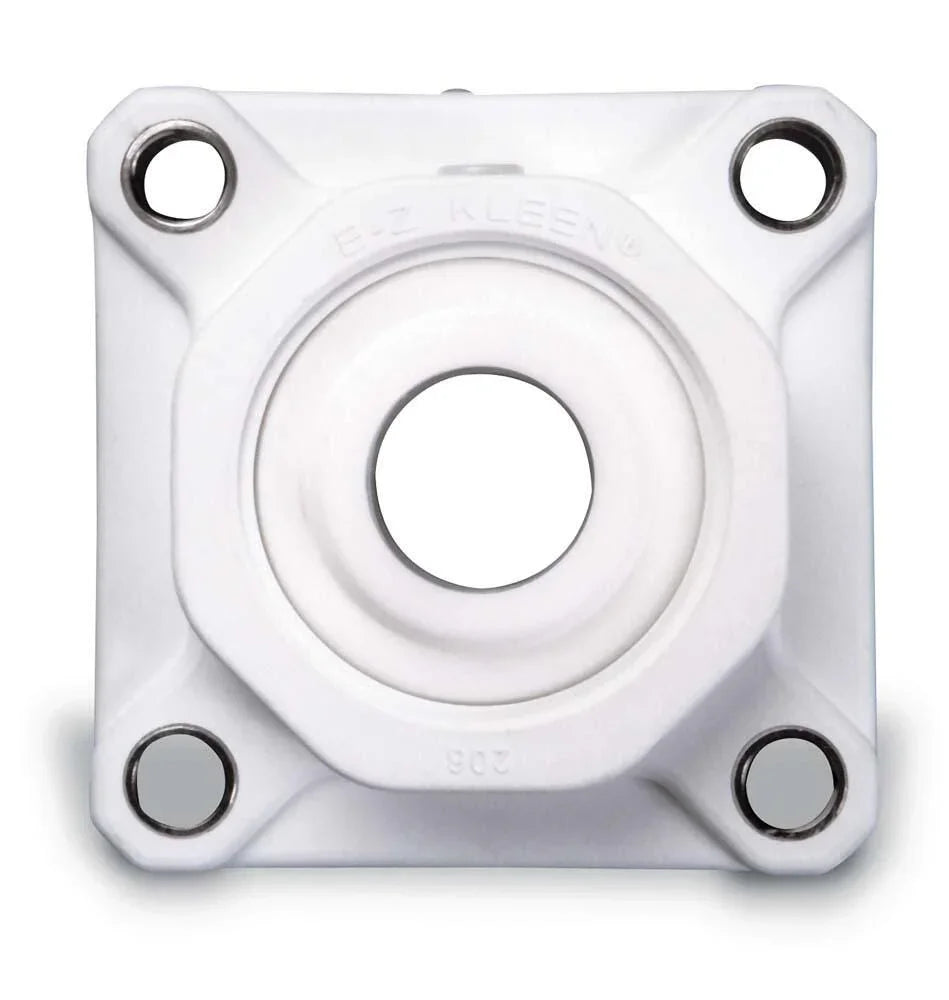

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034765 - Dodge - F4B-PSEZ-50M-P
F4B-PSEZ-50M-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.5625 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/f4b_psez_bolt_body_asmtab.prj&varset={SERIES=210},{SS=50},{PN=034765},{DESCRIPTION=F4B-PSEZ-50M-P},{WEIGHT=0.61},{A=41.3},{B=142.7},{C=47.3},{D=111.0},{F=M16},{H=19.3},{J=6.4},{L=65.1}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 50.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
